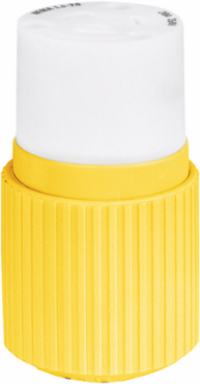

Bryant 70620NCCR Marine Grade Female Connector Body, 20A 250V, 2-Pole, 3-Wire Grounding, Yellow
- MPN: 70620NCCR
- UPC: 781786706255
- PPN: HBL-70620NCCR
- UNSPSC: 39121421
CAD
$82.60
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Locking Devices, Marine Grade, Female Nylon Connector Body, 20A 250V, 2-Pole 3-Wire Grounding, L6-20R, Screw Terminal, Yellow/White, Corrosion Resistant
Features
- Face and body feature alignment keys for easy assembly
- Amperage, voltage and NEMA configuration imprinted on face for easy identification
- Impact/chemical resistant, toughened nylon construction
- Internal “self-centering” Triple Gripper® cord grip with “radius teeth” design provides secure cord retention
- Corrosion Resistant
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Height
- 3.90 in
- Amperage Rating
- 20 A
- Color
- Yellow, White
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- NEMA Rating
- L6-20R
- Number of Poles
- 2-Pole
- Temperature Rating
- Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
- Voltage Rating
- 250 V
- Connectivity
- Screw Terminals
- Nema Rating
- L6-20R
- Number Of Poles
- 2-Pole
- Style
- Internal Cord Clamp
- Class Code
- A08
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Sub Class Code
- A08A172
- Cord Diameter
- 0.300-0.655 in
- Material
- Composite
- BOX SIZE
- 5.500x12.000x6.100 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 781786706255
- Case Weight
- 3.950 lb.
- Lowest Level UOM
- Each
Width2.300 in
Length2.13 in
ApplicationHeavy Duty Industrial
Conductor Range#14 AWG to #12 AWG
InsulationInsulated Body
Number of Conductors3-Wire Grounding
Special FeaturesCorrosion Resistant
TypeConnector Body
Voltage Rating Description250 V
Display SizeStandard Sized Product
Number Of Conductors3-Wire Grounding
Number Of Wires3-Wire
Wire Size#18 AWG to #8 AWG
Description - InvoiceLKG CONN, CM, 20A 250V, L6-20R, YL
Harmonization Code8536694020
MSDS FlagNo
Material - Mounting HardwareCord Mounted
Current Rating20 A
Base Unit of MeasureEA
Carton - Gross Weight per Pack3.9 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Each - Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Yes
