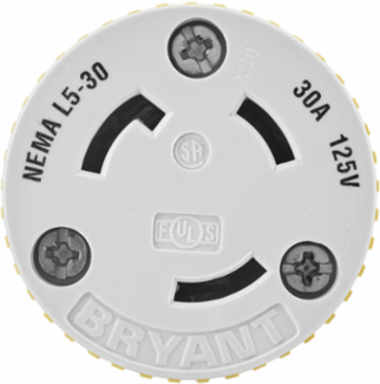

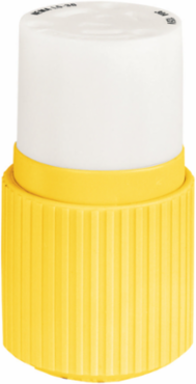

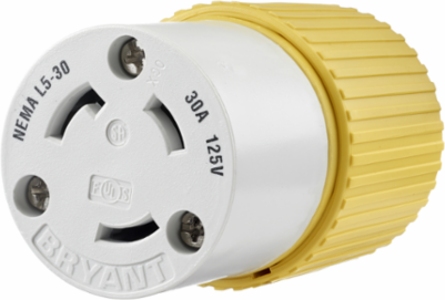

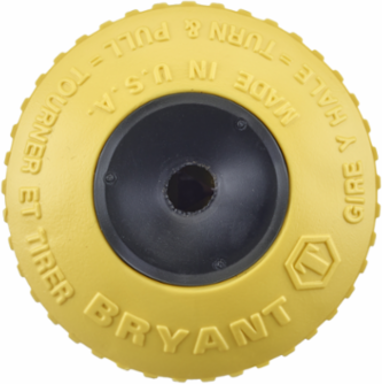

Bryant 70530NCCR Marine Grade Locking Connector Body, 30A 125V, 2-Pole, Screw Terminal, Yellow
- MPN: 70530NCCR
- UPC: 781786688780
- PPN: HBL-70530NCCR
- UNSPSC: 39121421
CAD
$156.74
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Locking Devices, Marine Grade, Female Connector Body, 30A 125V, 2-Pole 3-Wire Grounding, L5-30R, Screw Terminal, Yellow, Corrosion Resistant
Features
- Nickel-plated copper-alloy metallic components
- Molded of impact/chemical resistant high-visibility yellow nylon
- Stainless steel screws
- Triple Gripper® cord grip on plugs and connectors which feature three captive assembly screws to automatically tighten cord grip
- Individual wire pockets with clamp-type terminals
- Corrosion Resistant
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Puerto Rico
- Height
- 3.90 in
- Amperage Rating
- 30 A
- Color
- Yellow, White
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- NEMA Rating
- L5-30R
- Number of Poles
- 2-Pole
- Special Features
- Corrosion Resistant
- Type
- Connector Body
- Voltage Rating Description
- 125 V
- Connectivity
- Screw Terminals
- Nema Rating
- L5-30R
- Number Of Poles
- 2-Pole
- Style
- Internal Cord Clamp
- Class Code
- A08
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Sub Class Code
- A08A172
- Cord Diameter
- 0.300-0.950 in
- Material
- Composite
- BOX SIZE
- 5.300x14.600x6.100 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 781786688780
- Each - Pack Description
- Each
Dimensions2.13 in x 2.13 in x 3.90 in
Length2.13 in
ApplicationHeavy Duty Industrial
Conductor Range#12 AWG to #8 AWG
InsulationInsulated Body
Number of Conductors3-Wire Grounding
Size2.13 in x 2.13 in x 3.90 in
Temperature RatingMaximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Voltage Rating125 V
Width2.13 in
Display SizeStandard Sized Product
Number Of Conductors3-Wire Grounding
Number Of Wires3-Wire
Wire Size#18 AWG to #8 AWG
Description - InvoiceLKG CONN, CM, 30A 125V, L5-30R, YL
Harmonization Code8536694020
MSDS FlagNo
Material - Mounting HardwareCord Mounted
Current Rating30 A
Base Unit of MeasureEA
Carton - Gross Weight per Pack3.9 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Lowest Level UOMEach
Certifications
- EU RoHS Indicator
- Yes
