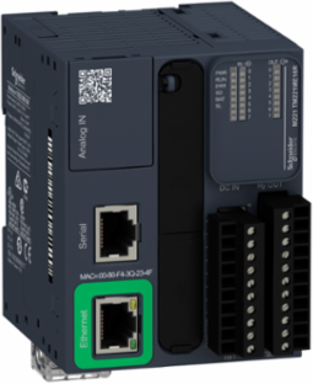

Schneider Electric TM221ME16R Modicon M221 Logic Controller, 16 I/O, 8 DI, 8 DO, Ethernet, 24V DC
Schneider Electric TM221ME16R Modicon M221 Logic Controller, 16 I/O, 8 DI, 8 DO, Ethernet, 24V DC
- MPN: TM221ME16R
- PPN: SCH-TM221ME16R
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$504.51/ EA
Description
This TM221 controller is part of the Modicon M221 Logic controller range. It has 16 logic I/O and it is supplied with 24V dc. It is supplied with removable screw terminal blocks for connecting the I/O, a removable screw terminal block for connecting the power supply, a button cell backup battery BR2032 and a cable for connecting the analog inputs. M221 logic controllers have three types of integrated communication port, Ethernet, RS 232/RS 485 serial link and USB mini-B programming port. It enables the control of simple machines. The capacity of M221 logic controllers can be enhanced with the Modicon TM3 expansion module offer.
Specifications
Complementary
- Discrete Input Logic
- sink or source (positive/negative)
- Exct Time For Event Task
- 60 µs response time
- Electrical Connection
- terminal block, 3 for connecting the 24 V DC power supply || connector, 4 for analogue inputs || mini B USB 2.0 connector for a programming terminal || removable screw terminal block, 10 for inputs || removable screw terminal block, 11 for outputs
- Height
- 90 mm
- Maximum Power Consumption In W
- 23.3 W 24 V with max number of I/O expansion module) || 4.3 W 24 V without I/O expansion module)
- Discrete Input Voltage Type
- DC
- Port Ethernet
- 10BASE-T/100BASE-TX 1 100 m copper cable
- Transmission Rate
- 1.2...115.2 kbit/s (115.2 kbit/s by default) 15-15 m RS485 || 1.2...115.2 kbit/s (115.2 kbit/s by default) 3-3 m RS232 || 480 Mbit/s USB
- Battery Type
- BR2032 or CR2032X lithium non-rechargeable
- Protection Type
- without protection 5 A
- Backup Time
- 1 year 25 °C by interruption of power supply)
- Reset Time
- 1 s
- Maximum Number Of I/O Expansion Module
- 7 local || 14 remote
- Net Weight
- 0.264 kg
- Voltage State 0 Guaranteed
- <= 5 V input
- Output Voltage Limits
- 125 V DC || 277 V AC
- Memory Capacity
- 256 kB user application and data RAM 10000 instructions || 256 kB internal variables RAM
- Voltage State 1 Guaranteed
- >= 15 V input
- Control Signal Type
- single phase || A/B || pulse/direction
- Integrated Connection Type
- USB port mini B USB 2.0 || non isolated serial link serial 1 RJ45 RS232/RS485 || Ethernet RJ45
- Mechanical Durability
- 20000000 cycles relay output
- Absolute Accuracy Error
- +/- 1 % of full scale analog input
- Local Signalling
- PWR 1 LED green) || RUN 1 LED green) || module error (ERR) 1 LED red) || SD card access (SD) 1 LED green) || BAT 1 LED red) || I/O state 1 LED per channel green) || SL 1 LED green) || ACT Ethernet network activity green) || Link (Link Status) Ethernet network link yellow)
- Discrete Input Current
- 7 mA discrete input || 5 mA fast input
- Analogue Input Resolution
- 10 bits
- Lsb Value
- 10 mV
- Depth
- 70 mm
- Data Storage Equipment
- 2 GB SD card optional)
- Supply
- serial 1)serial link supply 5 V, <200 mA
- Permitted Overload On Inputs
- +/- 30 V DC 5 min maximum)analog input || +/- 13 V DC permanent)analog input
Data Backed Up256 kB built-in flash memory backup of application and data
Input Impedance100 kOhm analog input || 3.4 kOhm input || 4.9 kOhm fast input
Maximum Cable Distance Between Devicesshielded cable <10 m fast input || unshielded cable <30 m output || unshielded cable <30 m digital input || unshielded cable <1 m analog input || shielded cable <3 m fast output
Discrete Input Voltage24 V
Inrush Current35 A
Communication ServiceDHCP client || Modbus TCP slave device || Ethernet/IP adapter || Modbus TCP client || Modbus TCP server
Maximum Current Per Output Common7 A
Clock Drift<= 30 s/month 25-25 °C
Communication Port ProtocolUSB port USB - SoMachine-Network || non isolated serial link Modbus master/slave - RTU/ASCII or SoMachine-Network || Ethernet
MarkingCE
Discrete I/O Number16
Regulation Loopadjustable PID regulator up to 14 simultaneous loops
Power Supply Output Current0.52-0.52 A 5 V expansion bus || 0.46-0.46 A 24 V expansion bus
Application Structure1 configurable freewheeling/cyclic master task || 1 cyclic auxiliary task || 8 interrupt tasks
Configurable Filtering Time0 ms input || 3 ms input || 12 ms input
Maximum Size Of Object Areas512 %KW constant words || 255 %C counters || 8000 %MW memory words || 255 %TM timers || 512 %M memory bits
Conversion Time1 ms per channel + 1 controller cycle time analog input
Function Availablefrequency generator || PWM || PLS
Supply Voltage Limits20.4-28.8 V
Execution Time Per Instruction0.2 µs Boolean
Electrical Durability100000 cycles AC-12, 120 V, 240 VA, resistive || 100000 cycles AC-12, 240 V, 480 VA, resistive || 300000 cycles AC-12, 120 V, 80 VA, resistive || 300000 cycles AC-12, 240 V, 160 VA, resistive || 100000 cycles AC-15, cos phi = 0.35 , 120 V, 60 VA, inductive || 100000 cycles AC-15, cos phi = 0.35 , 240 V, 120 VA, inductive || 300000 cycles AC-15, cos phi = 0.35 , 120 V, 18 VA, inductive || 300000 cycles AC-15, cos phi = 0.35 , 240 V, 36 VA, inductive || 100000 cycles AC-14, cos phi = 0.7 , 120 V, 120 VA, inductive || 100000 cycles AC-14, cos phi = 0.7 , 240 V, 240 VA, inductive || 300000 cycles AC-14, cos phi = 0.7 , 120 V, 36 VA, inductive || 300000 cycles AC-14, cos phi = 0.7 , 240 V, 72 VA, inductive || 100000 cycles DC-12, 24 V, 48 W, resistive || 300000 cycles DC-12, 24 V, 16 W, resistive || 100000 cycles DC-13, 24 V, 24 W, inductive (L/R = 7 ms) || 300000 cycles DC-13, 24 V, 7.2 W, inductive (L/R = 7 ms)
Mounting Supporttop hat type TH35-15 rail IEC 60715 || top hat type TH35-7.5 rail IEC 60715 || plate or panel with fixing kit
Response Time35 µs turn-off, I2...I5 input || 5 µs turn-on, I0, I1, I6, I7 fast input || 35 µs turn-on, other terminals input || 5 µs turn-off, I0, I1, I6, I7 fast input || 100 µs turn-off, other terminals input || 5 µs turn-on, turn-off, Q0...Q1 output || 50 µs turn-on, turn-off, Q2...Q3 output || 300 µs turn-on, turn-off, other terminals output
Execution Time For 1 Kinstruction0.3 ms event and periodic task || 0.7 ms other instruction
Realtime Clockwith
Width70 mm
Minimum Load1 mA 5 V DC relay output
Insulationbetween input and internal logic 500 V AC || between fast input and internal logic 500 V AC || non-insulated between inputs || between output and internal logic 500 V AC || between output groups 500 V AC || non-insulated between analogue input and internal logic || non-insulated between analogue inputs
Counting Input Number4 fast input (HSC mode) 100 kHz 32 bits
Switching Frequency20 switching operations/minute with maximum load
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1403012EN
- Pvc Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
- Circularity Profile
- ENVEOLI1403012EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Specifications
- Discrete Output Type
- relay normally open
- Discrete Output Number
- 8 relay
- Discrete Output Current
- 2 A
- Analogue Input Number
- 2 0...10 V
- Discrete Input Number
- 8 , discrete input IEC 61131-2 Type 1
Range Of ProductModicon M221
Product Or Component Typelogic controller
Discrete Output Voltage5...125 V DC || 5...250 V AC
[Us] Rated Supply Voltage24 V DC
Environment
- Product Certifications
- LR || cULus || DNV-GL || RCM || EAC || ABS || CE || UKCA || cULus HazLoc
- Resistance To Electromagnetic Fields
- 10 V/m 80 MHz...1 GHz IEC 61000-4-3 || 3 V/m 1.4 GHz...2 GHz IEC 61000-4-3 || 1 V/m 2...2.7 GHz IEC 61000-4-3
- Immunity To Microbreaks
- 10 ms
- Pollution Degree
- <= 2
- Shock Resistance
- 98 m/s² 11 ms
- Vibration Resistance
- 3.5 mm 5-8.4 Hz symmetrical rail || 3.5 mm 5-8.4 Hz panel mounting || 1 gn 8.4-150 Hz symmetrical rail || 1 gn 8.4-150 Hz panel mounting
- Environmental Characteristic
- ordinary and hazardous location
- Ip Degree Of Protection
- IP20 with protective cover in place
- Surge Withstand
- 2 kV power lines (AC) common mode IEC 61000-4-5 || 2 kV relay output common mode IEC 61000-4-5 || 1 kV I/O common mode IEC 61000-4-5 || 1 kV shielded cable common mode IEC 61000-4-5 || 0.5 kV power lines (DC) differential mode IEC 61000-4-5 || 1 kV power lines (AC) differential mode IEC 61000-4-5 || 1 kV relay output differential mode IEC 61000-4-5 || 0.5 kV power lines (DC) common mode IEC 61000-4-5
- Operating Altitude
- 0...2000 m
Resistance To Conducted Disturbances10 V 0.15...80 MHz IEC 61000-4-6 || 3 V 0.1...80 MHz Marine specification (LR, ABS, DNV, GL) || 10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL)
StandardsIEC 61131-2 || UL 508 || CAN/CSA C22.2 No. 213 || IACS E10 || ANSI/ISA 12-12-01
Storage Altitude0-3000 m
Ambient Air Temperature For Operation-10-55 °C horizontal installation) || -10-35 °C vertical installation)
Resistance To Magnetic Fields30 A/m 50/60 Hz IEC 61000-4-8
Ambient Air Temperature For Storage-25-70 °C
Relative Humidity10-95 %, without condensation in operation) || 10-95 %, without condensation in storage)
Resistance To Electrostatic Discharge8 kV in air IEC 61000-4-2 || 4 kV on contact IEC 61000-4-2
Resistance To Fast Transients2 kV IEC 61000-4-4 power lines) || 2 kV IEC 61000-4-4 relay output) || 1 kV IEC 61000-4-4 I/O) || 1 kV IEC 61000-4-4 Ethernet line) || 1 kV IEC 61000-4-4 serial link)
Electromagnetic Emissionconducted emissions 79 dBμV/m QP/66 dBμV/m AV power lines (AC))0.15-0.5 MHz IEC 55011 || conducted emissions 73 dBμV/m QP/60 dBμV/m AV power lines (AC))0.5-300 MHz IEC 55011 || conducted emissions 120...69 dBµV/m QP power lines)10-150 kHz IEC 55011 || conducted emissions 63 dBμV/m QP power lines)1.5-30 MHz IEC 55011 || radiated emissions 40 dBμV/m QP class A 10 m)30-230 MHz IEC 55011 || conducted emissions 79...63 dBμV/m QP power lines)150-1500 kHz IEC 55011 || radiated emissions 47 dBμV/m QP class A 10 m)200-1000 MHz IEC 55011
