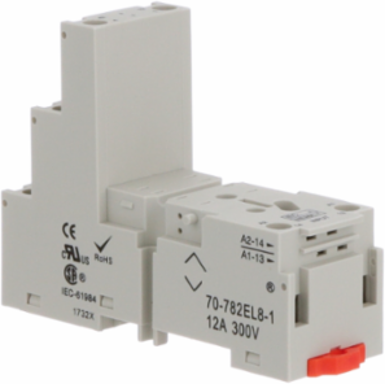

Schneider Electric 70-782EL8-1 Socket, SE Relays general purpose relay accessory, DPDT, 12A, 300 V, 8 pins, lift terminals, locking plastic clip, 782 s
- MPN: 70-782EL8-1
- PPN: SCH-70-782EL8-1
CAD
$16.55
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Legacy general purpose relay series accessory , optional socket for 782R series relays with DPDT configuration contacts rated 12A at 300V. Lift connect terminals 8 pins offer customizable solutions including protection modules, holddown clips, and ID tags. Socket is finger-safe according to IP20, and compatible with DIN rail or panel mounting.
