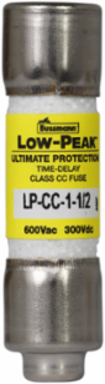

Bussmann LP-CC-1-1/2 Low Peak Fuse, 1.50A, 600 Vac, 1.5 Inch Height, Time-delay
- MPN: LP-CC-1-1/2
- UPC: 051712180474
- PPN: BUS-LP-CC-1-1/2
CAD
$17.92
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Low Peak Fuse, 1.50A, 600 Vac, 1.5 Inch Height, Time-delay
Features
- Engineered with a specialized rejection feature, this 13/32" x 1-1/2" (10x38mm) miniature fuse physically blocks the accidental installation of lower-rated, non-current-limiting supplemental fuses. This fail-safe mechanical design ensures your critical control panels and branch circuits maintain their strict safety ratings, giving panel builders and maintenance technicians total peace of mind during fast-paced replacements.
- Built with a precise 12-second minimum time delay at 200% overload, this Low-Peak fuse safely absorbs harmless inrush currents from small motors, relays, and industrial control transformers. By effectively eliminating frustrating nuisance blowing, it dramatically reduces costly machine downtime while still providing incredibly fast protection against destructive, sustained short circuits.
- Strictly rated to handle 1.5 Amps at up to 600V AC, this highly efficient current-limiting cartridge fuse acts quickly to isolate extreme electrical faults, drastically minimizing thermal and magnetic damage. This robust capability significantly upgrades your facility's overall arc flash safety profile, protecting expensive programmable logic controllers (PLCs) and delicate automation equipment from catastrophic electrical surges.
- Boasting a massive 200,000 Amp Short-Circuit Current Rating (SCCR), this UL Listed and CSA Certified overcurrent protection device easily handles the highest potential fault currents in modern distribution systems. Relying on this factory-tested, code-compliant hardware guarantees your commercial electrical infrastructure easily passes strict NEC inspections and maintains absolute workplace safety compliance.
Documentation & Downloads
Specifications
Additional
- Voltage
- 600 Vac, 300 Vdc
- Interrupt Rating
- 200 kAIC at 600 Vac, 20 kAIC at 300 Vdc
- Amperage Range
- 0.5-30 A
- Class
- Class CC
- Diameter
- .40625 in (0.41 in)
- Connection
- Ferrule end X ferrule end
- Number Of Elements
- Dual
- Compliance
- UL Listed Class CC, CSA Certified, CE, RoHS compliant (20-30A)
Amperage1.5A
Response Time12 seconds at 200% rated current
Fuse TypeCurrent-limiting, Time-delay
Height1.5 in
Length.41 in
Weight.15 lb
MaterialMelamine tube
