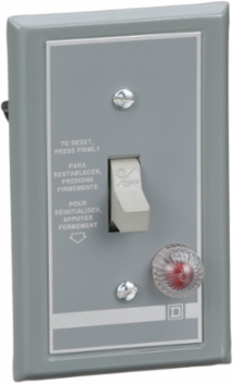

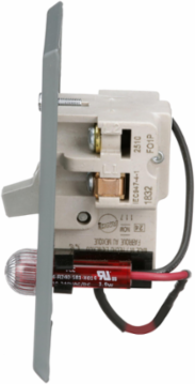

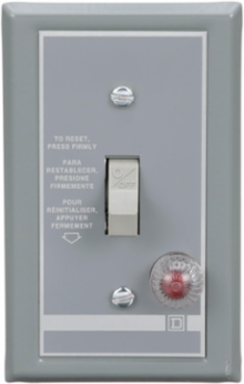

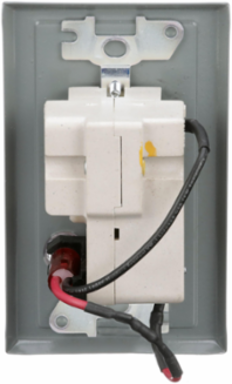

Square D 2510FF1P Manual Starter 1 HP, 16A, 1 Pole, NEMA 1, Toggle Switch, Red Indicator
Square D 2510FF1P Manual Starter 1 HP, 16A, 1 Pole, NEMA 1, Toggle Switch, Red Indicator
- MPN: 2510FF1P
- UPC: 785901553816
- PPN: SCH-2510FF1P
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$208.32/ EA
Description
2510F fractional horsepower non-reversing manual starters provides manual On-Off control with overload protection for small motors. Designed for fractional single phase motors up to 1 HP. The toggle operator provides an easy manual On-Off control of small motors. These manual starters are used in a variety of industrial and commercial installations. Typical applications include fans, conveyors, pumps, and small machine tools. Melting alloy thermal units are used with this manual starter to sense over current conditions. Overload thermal unit is ordered separately to match motor data. This 1 pole nonreversing manual starter has a 16A current rating. Starter has a 1 HP rating at 115, 230, and 277 VAC. This NEMA 1 flush mounted unit with a gray flush plate can be mounted in a standard switch box or in a machine cavity without a box. This manual starter is 4.50 inches tall, 2.75 inches wide and 2.19 inches deep. This device has a red pilot light indicator. Manual starter is UL listed and CSA certified.
Specifications
Environment
- Product Certifications
- UL listed file E42243 CCN NLRV || CSA LR25490 class 3211 05
Nema Degree Of Protectionnot rated (flush plate) sheet steel standard size
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Eu Rohs Directive
- Not compliant
Pvc FreeYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Complementary
- Motor Starter Type
- non reversing
- Height
- 4.5 in
- Electrical Connection
- screw clamp terminals
- [In] Rated Current
- 16 A
- Awg Gauge
- AWG 14...AWG 12 copper
- Depth
- 2.19 in
- Network Number Of Phases
- 1 phase
- Control Type
- toggle switch
Resetmanual
Poles Description1P
Cable Entrywithout
Local Signallingred indicator
Width2.75 in
Motor Power Hp1 hp 115 V AC || 1 hp 230 V AC || 1 hp 277 V AC
[Ue] Rated Operational Voltage277 V AC
Specifications
- Thermal Overload Type
- melting alloy
- Product Or Component Type
- Single Unit Manual Starter
Range Of ProductF
