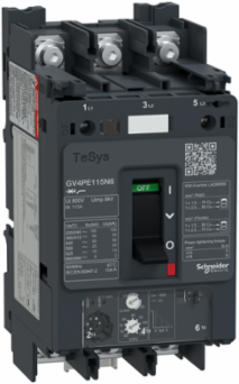

Schneider Electric GV4PE115N6 Motor circuit breaker, TeSys GV4, 3P, 115A, Icu 50kA, thermal magnetic, lugs terminals
- MPN: GV4PE115N6
- PPN: SCH-GV4PE115N6
CAD
$1385.51
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
TeSys GV motor circuit breaker, 3 poles (3P), 115A/690V, for protection of 3-phase motors 37-55kW@400V. It provides thermal magnetic protection and additional motor protection functions, breaking capacity Icu 50kA@400V, start-stop control by toggle, connection for bars or cables with lugs. Thermal protection adjustable by dials with a setting current Ir in range 65-115A and a selectable tripping class 10 or 20, magnetic protection at 17 In. Additional protections have fixed pick-up and include short time delay protection Isd at 13 Ir, phase unbalance and loss protection, ground fault protection. It makes internal locations available for additional auxiliary contact blocks (OF, SD), and voltage trip units (MN, MX). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX).
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, Poland

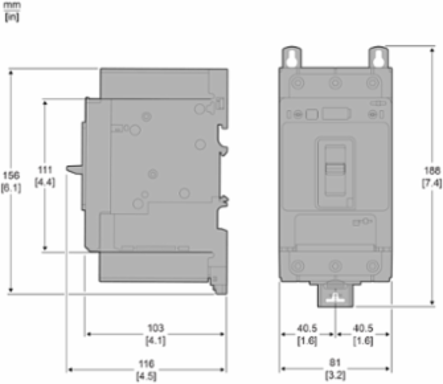

Depth116 mm
Physical Attributes
- Color
- Gray RAL 7016)
Complementary Attributes
- Line Rated Current
- 115 A
- Rated Current
- 115 A
Maximum Operating Rate25 cyc/h
Rated Dutycontinuous IEC 60947-4-1
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SC
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Electrical Durability
- 5000 cycles AC-3 415 V opening, 5000 cycles AC-3 415 V closing
- Trip Unit Technology
- thermal-magnetic, electronic
- Certificate Agency
- IEC, UL, CSA, CCC, EAC, ATEX, EU-RO MR
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 3.1461207420664614, 3 kg CO2 eq.
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 9 kg CO2 eq., 9.232556377272852
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Serviceability
- Yes
- Field Service Division
- PPIBS
- Use Carbon Footprint
- 74.322
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI1704004EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 1903
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Connection Pitch
- 27 mm without spreaders35 mm with spreaders
- Device Application
- motor protection
- Direct Connector
- without
- Fire Resistance
- 960 °C IEC 60695-2-11
- Mechanical Durability
- 40000 cycles
- Number Of Poles
- 3P
- Phase Failure Sensitivity
- yes IEC 60947-4-1
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Product Or Component Type
- motor circuit breaker
- Range Of Product
- TeSys GV4
- Software Version
- v5.9.4
- Sustainable Packaging
- No
- Total Lifecycle Carbon Footprint
- 87 kg CO2 eq.
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Connections Terminals 119 Connections Terminals
- lugs-ring terminals
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- Protect during 20 years the motor against overloads and short-circuits in circuit with assigned voltage up to 690VAC and 115A rated current. This protection is ensured in accordance with the following parameters:& 10- Number of poles: 3& 10- Rated service breaking capacity Ics at 440VAC = 50kA (according to IEC 60947-2) & 10- Tripping curve: long time, short time and instantanous protections, dual class (10 and 20)
- Functional-unit Unit
- unité (unit)
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Production mix; Low voltage; CZ
- Energy Model - Use [B6]
- Electricity Mix; Production mix; Low voltage; UE-27
- Recyclability Potential In %
- 49
- Width Nominal
- 81 mm
- [Ue] Rated Operational Voltage
- 690 V AC 50/60 Hz IEC 60947-2
- [Uimp] Rated Impulse Withstand Voltage
- 8 kV IEC 60947-2
- Halogen-free Status
- Halogen free plastic parts product
- Package Weight(Lbs)
- 1.384 kg
- Warranty (In Months)
- 18
- Climate Change - Fossil Fuels ( Kg Co2 Eq.) Operational Energy Use [B6]
- 74.223
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]
- 1893.5
- Impacts Related To Land Use/Soil Quality (-) Operational Energy Use [B6]
- 1.4788
- Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]
- 10.693
- Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
- 363.6
- Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
- 363.6
- Customs Code
- 8536200020
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician
Market SegmentationCommercial, Industrial
Motor Power Kw55-55 kW 500 V AC 50/60 Hz, 37-37 kW 400...415 V AC 50/60 Hz, 45-45 kW 400...415 V AC 50/60 Hz, 55-55 kW 400...415 V AC 50/60 Hz, 45-45 kW 500 V AC 50/60 Hz, 75-75 kW 500 V AC 50/60 Hz, 75-75 kW 660...690 V AC 50/60 Hz, 90-90 kW 660...690 V AC 50/60 Hz, 110-110 kW 660...690 V AC 50/60 Hz
R Magnetic Tripping Current1955-1955 A
Carbon Footprint Of The Distribution Phase [A4]0.39042753357514676, 0.4 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.3 kg CO2 eq., 0.3479267119835232
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]74 kg CO2 eq., 74.322
Local Publishable Date2025-02-26
Stocking FlagY
Device TypeLV equipment - Low voltage circuit breaker
TraceabilityYes
Average Life Duration15 year(s)
Weee ApplicabilityFinished product
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label7
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Control Typetoggle
Device Short NameGV4PE
Energy Efficiency OptimizedFalse
Magnetic Tripping Current1955-1955 A
Mechanical Robustnessvibrations +/- 1 mm 2...13.2 Hz IEC 60068-2-6vibrations 0.7 gn 13.2...100 Hz IEC 60068-2-6shocks 15 gn 11 ms IEC 60068-2-27
Operating Positionany position
Power Dissipation Per Pole4.6 W
Product NameTeSys GV4
RangeTeSys Deca
ReturnabilityNo
Suitability For Isolationyes IEC 60947-1
Tightening Torque9 N.m 16-95 mm²5 N.m 1.5-10 mm²
Utilisation Categorycategory A IEC 60947-2AC-3 IEC 60947-4-1
Rated Current 1115 A
Pep CodeENVPEP1704004EN
Pep Verification Date2023-08-19
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; UE-27
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; UE-27
Height Nominal155 mm
[Ith] Conventional Free Air Thermal Current115 A IEC 60947-4-1
[Ui] Rated Insulation Voltage800 V AC 50/60 Hz IEC 60947-2
Connections - Terminalslugs-ring terminals
Nbr. Of Units In Pkg.1
Take-backNo
Acidification (Ap) (Mole Of H+ Equiv) Operational Energy Use [B6]0.4241
Climate Change - Total ( Kg Co2 Eq.) Operational Energy Use [B6]74.322
Ecotoxicity (Fresh Water) (Ctue) Operational Energy Use [B6]800.39
Ionizing Radiation Human Health (Kbq Of U235 Equiv.) Operational Energy Use [B6]110.51
Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]2257.1
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]1893.5
Water Use (M3 Eq) Operational Energy Use [B6]2.6298
Environment Attributes Main
- Ambient Air Temperature For Storage
- -50-85 °C, -50-85 °C
- Halogene Performance
- Halogen free plastic parts product
- China Rohs Regulation
- X
- Carbon Footprint
- 87.43903136489799
- Circularity Profile
- ENVEOLI1704004EN
- Environmental Disclosure
- ENVPEP1704004EN
- Halogen Content Performance
- Halogen free plastic parts product
- Operating Altitude
- 5000 m
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP1704004EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Ambient Air Temperature For Operation-25-70 °C-25-70 °C
Climatic WithstandIACS E10
Eu Rohs DirectiveCompliant By Exemption
Ip Degree Of ProtectionIP40 IEC 60529
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2023-08-19
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- motor circuit breaker
Range Of ProductTeSys GV4
ETIM
- ETIM 8
- EC000074
ETIM 9EC000074
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
