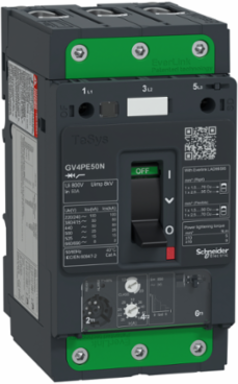

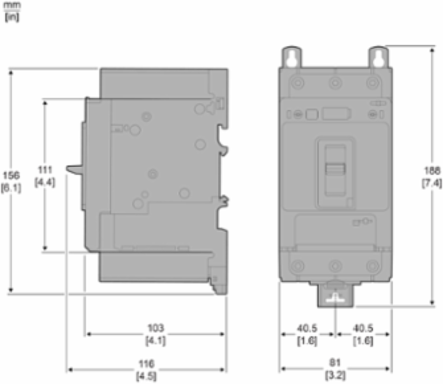

Schneider Electric GV4PE50N Motor circuit breaker, TeSys GV4, 3P, 50A, Icu 50kA, thermal magnetic, Everlink terminals
Schneider Electric GV4PE50N Motor circuit breaker, TeSys GV4, 3P, 50A, Icu 50kA, thermal magnetic, Everlink terminals
- MPN: GV4PE50N
- PPN: SCH-GV4PE50N
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$1035.77/ EA
Description
TeSys GV motor circuit breaker, 3 poles (3P), 50A/690V, for protection of 3-phase motors 11-22kW@400V. It provides thermal magnetic protection and additional motor protection functions, breaking capacity Icu 50kA@400V, start-stop control by toggle, connection by Everlink BTR screw terminals. Thermal protection adjustable by dials with a setting current Ir in range 20-50A and a selectable tripping class 10 or 20, magnetic protection at 17 In. Additional protections have fixed pick-up and include short time delay protection Isd at 13 Ir, phase unbalance and loss protection, ground fault protection. It makes internal locations available for additional auxiliary contact blocks (OF, SD), and voltage trip units (MN, MX). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX).
Specifications
Physical Attributes
- Color
- Gray RAL 7016)
Complementary Attributes
- Line Rated Current
- 50 A
- Rated Current
- 50 A
- Ue Rated Operational Voltage
- 690 V AC 50/60 Hz IEC 60947-2
- Uimp Rated Impulse Withstand Voltage
- 8 kV IEC 60947-2
Maximum Operating Rate25 cyc/h
Rated Dutycontinuous IEC 60947-4-1
Ui Rated Insulation Voltage800 V AC 50/60 Hz IEC 60947-2
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SC
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Electrical Durability
- 5000 cycles AC-3 415 V opening, 5000 cycles AC-3 415 V closing
- Motor Power Kw
- 15-15 kW 400...415 V AC 50/60 Hz, 18.5-18.5 kW 400...415 V AC 50/60 Hz, 18.5-18.5 kW 500 V AC 50/60 Hz, 22-22 kW 500 V AC 50/60 Hz, 22-22 kW 660...690 V AC 50/60 Hz, 30-30 kW 660...690 V AC 50/60 Hz, 11-11 kW 400...415 V AC 50/60 Hz, 15-15 kW 500 V AC 50/60 Hz, 18.5-18.5 kW 660...690 V AC 50/60 Hz, 22-22 kW 400...415 V AC 50/60 Hz, 30-30 kW 500 V AC 50/60 Hz, 37-37 kW 660...690 V AC 50/60 Hz, 45-45 kW 660...690 V AC 50/60 Hz
- Trip Unit Technology
- thermal-magnetic, electronic
- Connections Terminals
- EverLink BTR screw connectors (bottom): 1 cable(s) 2.5-70 mm² - flexible, EverLink BTR screw connectors (top): 1 cable(s) 1.5-70 mm² - solid, EverLink BTR screw connectors (top): 1 cable(s) 1.5-50 mm² - flexible, EverLink BTR screw connectors (bottom): 1 cable(s) 2.5-95 mm² - solid
- Carbon Footprint Of The End Of Life Phase C1 To C4
- 3.7052338781741825, 4 kg CO2 eq.
- Carbon Footprint Of The Manufacturing Phase A1 To A3
- 11 kg CO2 eq., 10.873320980286081
- Certificate Agency
- IEC, UL, CSA, CCC, EAC, ATEX, EU-RO MR
- Local Publishable Date
- 2025-02-26
- Stocking Flag
- Y
- Device Type
- LV equipment - Low voltage circuit breaker
- Traceability
- Yes
- Average Life Duration
- 15 year(s)
- Weee Applicability
- Finished product
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 7
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Device Application
- motor protection
- Direct Connector
- without
- Fire Resistance
- 960 °C IEC 60695-2-11
- Magnetic Tripping Current
- 850-850 A
- Operating Position
- any position
- Poles Description
- 3P
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Product Or Component Type
- motor circuit breaker
- Range Of Product
- TeSys GV4
- Software Version
- v5.9.4
- Sustainable Packaging
- Yes
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Warranty In Months
- 18
- Rated Current 1
- 50 A
- Pep Code
- ENVPEP1704004EN
- Pep Verification Date
- 2023-08-19
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional Unit Quantity
- 1
- Reference Lifetime In Y2
- 20
- Energy Model Installation A5 2
- Electricity Mix; Production mix; Low voltage; UE-27
- Energy Model End Of Life C1 C4 2
- Electricity Mix; Production mix; Low voltage; UE-27
- Offer Owner Code
- 190788
- Height Nominal
- 155 mm
- Acidification Ap Mole Of H Equiv Operational Energy Use B6 2
- 0.4241
- Climate Change Total Kg Co2 Eq Operational Energy Use B6 2
- 74.322
- Ecotoxicity Fresh Water Ctue Operational Energy Use B6 2
- 800.39
- Non Hazardous Waste Disposed Of Kg Operational Energy Use B6 2
- 10.693
- Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 2
- 363.6
- Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 2
- 363.6
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician
Market SegmentationCommercial, Industrial
Mechanical Robustnessvibrations +/- 1 mm 2...13.2 Hz IEC 60068-2-6, vibrations 0.7 gn 13.2...100 Hz IEC 60068-2-6, shocks 15 gn 11 ms IEC 60068-2-27
Tightening Torque9 N.m 16-95 mm², 5 N.m 1.5-10 mm²
Utilisation Categorycategory A IEC 60947-2, AC-3 IEC 60947-4-1
Carbon Footprint Of The Distribution Phase A40.4598123984982335, 0.5 kg CO2 eq.
Carbon Footprint Of The Installation Phase A50.4 kg CO2 eq., 0.4097585395010464
Carbon Footprint Of The Use Phase B2 B3 B4 B674 kg CO2 eq., 74.322
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
ServiceabilityYes
Field Service DivisionPPIBS
Use Carbon Footprint74.322
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1704004EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1903
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Control Typetoggle
Device Short NameGV4PE
Energy Efficiency OptimizedFalse
Halogen Free StatusHalogen free plastic parts product
Mechanical Durability40000 cycles
Phase Failure Sensitivityyes IEC 60947-4-1
Power Dissipation Per Pole4.6 W
Product NameTeSys GV4
RangeTeSys Deca
ReturnabilityNo
Suitability For Isolationyes IEC 60947-1
Total Lifecycle Carbon Footprint90 kg CO2 eq.
Ith Conventional Free Air Thermal Current115 A IEC 60947-4-1
R Magnetic Tripping Current850-850 A
Connections Terminals 119 Connections TerminalsEverLink BTR screw connectors
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional Unit DescriptionProtect during 20 years the motor against overloads and short-circuits in circuit with assigned voltage up to 690VAC and 115A rated current. This protection is ensured in accordance with the following parameters:& 10- Number of poles: 3& 10- Rated service breaking capacity Ics at 440VAC = 50kA (according to IEC 60947-2) & 10- Tripping curve: long time, short time and instantanous protections, dual class (10 and 20)
Functional Unit Unitunité (unit)
Energy Model Manufacturing A1 A3 2Electricity Mix; Production mix; Low voltage; CZ
Energy Model Use B6 2Electricity Mix; Production mix; Low voltage; UE-27
Recyclability Potential In 249
Pn1
Width Nominal81 mm
Climate Change Fossil Fuels Kg Co2 Eq Operational Energy Use B6 274.223
Depletion Of Abiotic Resources Fossil Fuels Mj Operational Energy Use B6 21893.5
Ionizing Radiation Human Health Kbq Of U235 Equiv Operational Energy Use B6 2110.51
Total Use Of Primary Energy During The Life Cycle Mj Operational Energy Use B6 22257.1
Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 21893.5
Water Use M3 Eq Operational Energy Use B6 22.6298
Environment Attributes Main
- Ambient Air Temperature For Operation
- -25-70 °C, -25-70 °C
- Halogene Performance
- Halogen free plastic parts product
- China Rohs Regulation
- X
- Carbon Footprint
- 89.77012579645955
- Circularity Profile
- ENVEOLI1704004EN
- Environmental Disclosure
- ENVPEP1704004EN
- Halogen Content Performance
- Halogen free plastic parts product
- Operating Altitude
- 5000 m
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP1704004EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Ambient Air Temperature For Storage-50-85 °C
Climatic WithstandIACS E10
Eu Rohs DirectiveCompliant By Exemption
Ip Degree Of ProtectionIP40 IEC 60529
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2023-08-19
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- motor circuit breaker
Range Of ProductTeSys GV4
ETIM
- ETIM 8
- EC000074
ETIM 9EC000074
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Country of Origin
- Brazil, France, United Kingdom, Poland
Depth116 mm
