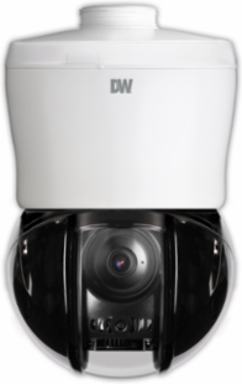

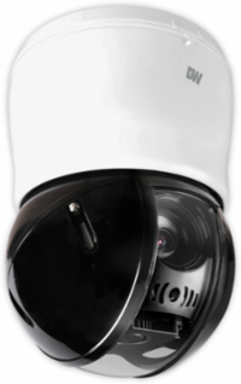

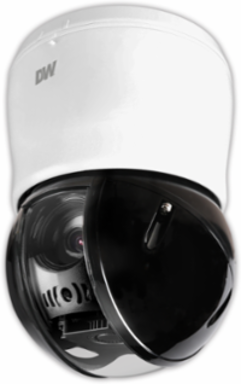

Digital Watchdog DWC-MPTZ230XTW MEGApix 2.1MP/1080p PTZ IP Camera, 30x Optical Zoom, 4.3~129mm Lens
- MPN: DWC-MPTZ230XTW
- UPC: 813379011498
- PPN: DWD-DWC-MPTZ230XTW
CAD
$4694.26
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Experience unparalleled surveillance capabilities with the MEGApix 2.1MP/1080p PTZ IP camera, engineered by Digital Watchdog. This advanced camera features a versatile 4.3~129mm vari-focal lens with motorized zoom and an impressive 30x optical zoom, ensuring that every detail is captured with clarity, even in low-light conditions thanks to the Star-Light Plus™ technology. Built to withstand the elements, it boasts an IP66 rating for dust and water resistance, making it suitable for both indoor and outdoor installations.
With features like true wide dynamic range (WDR), programmable privacy zones, and advanced motion detection, this camera offers exceptional image quality and security. The inclusion of Smart DNR™ 3D digital noise reduction enhances video clarity, while the dual-streaming capability allows for flexible bandwidth management. Whether you need to monitor a vast area or focus on specific zones, the MEGApix camera provides the reliability and performance required for comprehensive surveillance solutions.
Features
- 2.1MP/1080p 1/3” image sensor at real-time 30fps
- Star-Light Plus™ color in near-total darkness technology
- 4.3~129mm motorized zoom PTZ lens
- 30x optical zoom
- True wide dynamic range (WDR)
- Multiple codecs (H.265, H.264, MJPEG) with simultaneous dual-stream
- Smart DNR™ 3D digital noise reduction
- True day/night with mechanical IR cut filter
- Digital Image Stabilizer (DIS)
- Programmable privacy zones
- Backlight Compensation (BLC)
- Auto white balance (AWB)
- Motion detection
- Two-way audio

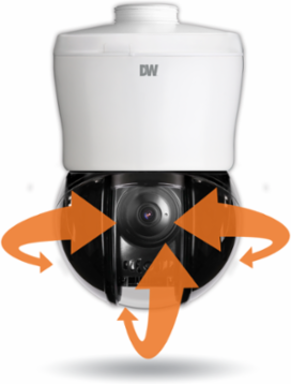

- Pan 0~360° endless, 360° per second pan speed
- Vector drive technology – pan/tilt motion in the shortest path
- 255 preset positions
- 10 tours
- Micro SD/SDHC/SDXC class 10 card slot (card not included)
- Alarm sensor input
- Relay output
- Web server built-in
- PoE injector included
- PoE class5, DC24V and AC24V
- ONVIF conformant, profile S
- NDAA compliant
- IP66 environmental-rated dust-tight and water-resistant
- IK 10-rated impact-resistant
Documentation & Downloads
Specifications
ENVIRONMENTAL
- Operating temperature
- -4°F ~ 122°F (-20°C ~ 50°C )
- IP rating
- IP66-rated
- Other certifications
- CE, FCC, RoHS
Operating humidity10–90% RH (non–condensing)
IK ratingIK-10 impact-resistant
MECHANICAL
- Material
- Aluminum PTZ, polycarbonate dome
- Weight
- 6.17 lb (2.8kg)
Dimensions5.9” x 9.13” (150 x 232mm)
ELECTRICAL
- Power requirement
- PoE IEEE 802.3bt class5 (PoE injector included), DC24V, AC24V
OPERATIONAL
- Shutter mode
- Auto, manual, slow shutter
- Slow shutter
- x2, x4
- De-fog
- Yes
- Wide dynamic range (WDR) dB
- 120dB
- Smart DNR™ 3D digital noise reduction
- 3D DNR
- Day and night
- Auto, day (color), night (B/W)
- Privacy zones
- 16 programmable privacy masks
- Memory slot
- Micro SD/SDHC/SDXC card (not included).
- Alarm notifications
- Notifications via e-mail, FTP server, alarm output activation or SD card recording.
Shutter speed1/8 ~ 1/30,000 second.
BacklightYes
Wide dynamic range (WDR)True WDR, off, low, middle, high
Digital image stabilizer (DIS)Yes
White balanceAuto
Mirror / flipYes
Motion detection4 programmable motion zones
Event bufferingPre-event - 1seconds ~ 5 seconds, Post-event - 240seconds
I/O
- Audio input / output
- 1 input / 1 output
- Alarm input/ output
- 1 input / 1 output
Audio compressionG.711
Event triggersMotion alarm, network disconnect, temperature anomaly
LENS
- Focal length
- 4.3~129mm, F1.6~F4.7
- IR distance
- 200ft range
- Optical zoom
- 30x optical zoom
Lens typeVari-focal lens with motorized zoom and auto-focus
Angle of view65.1° ~ 2.34°
PTZ FUNCTION
- Pan range
- 360° endless
- Tilt range
- -5°~190°
- Preset
- 255
- Home function
- Yes (parking action)
Pan speedMax. 360°/sec. (preset)
Tilt speedMax. 360°/sec. (preset)
Tour10
NETWORK
- LAN
- RJ-45 (10/100Base-T)
- Resolution
- H.265 - 2.1MP/1080p, 720p, VGA, D1, CIF, H.264 - 2.1MP/1080p, 720p, VGA, D1, CIF, MJPEG - 1280x720, 800x600, VGA, 768x432, D1, CIF
- Frame rate
- Up to 30fps at all resolutions
- Bitrate control
- Multi-streaming CVBR/VBR at H.265, H.264 (controllable framerate and bandwidth)
- Protocol
- TCP/IP, UDP, AutoIP, RTP (UDP/TCP), RTSP, NTP, HTTP, HTTPS, SSL, DNS, DDNS, DHCP, FTP, SMTP, ICMP, SNMPv1/v2/v3 (MIB-2), ONVIF
- ONVIF conformance
- Yes
Video compression typeH.265 (main profile), H.264 (baseline, main, high profile), MJPEG
Video bitrate100Kbps ~ 10Mbps, multi-rate for preview and recording
Streaming capabilityDual-stream at different rates and resolutions
IPIPv4, IPv6
SecurityHTTPS (TLS), IP filtering, 802.1x, digest authentication (ID/PW)
- Image sensor
- 2.1MP/1080p 1/3” CMOS sensor
- Video output
- 1 CVBS 1.0V p-p (75ohm)
Total pixels1981 (H) x 1288 (V)
