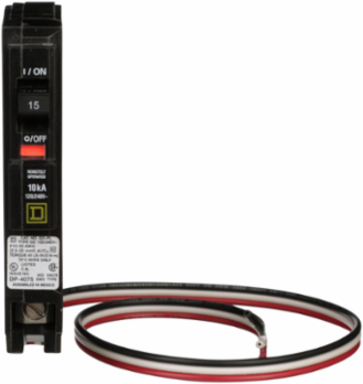

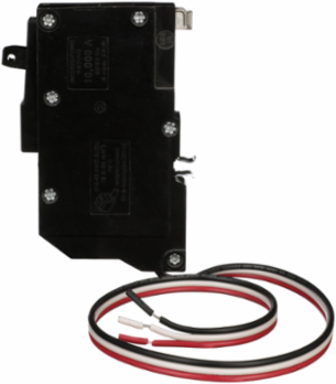

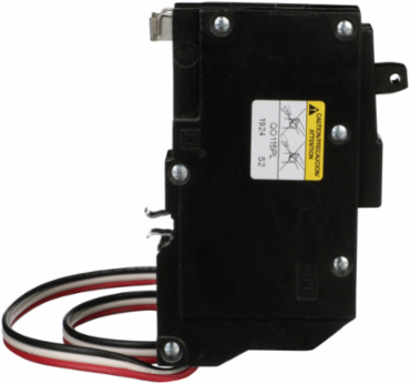

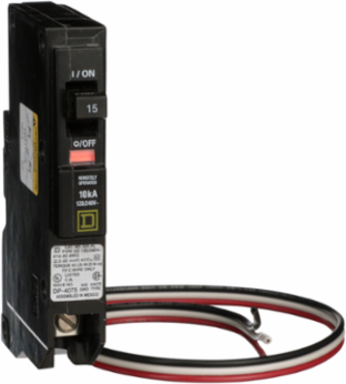

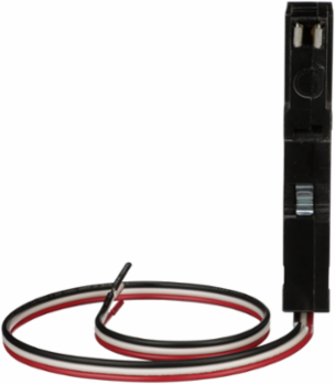

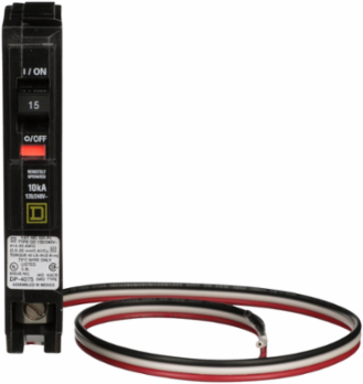

Square D QO115PL Mini Circuit Breaker, 15A, 1 Pole, 120/240V AC, 10kA, Plug-In Mount
Square D QO115PL Mini Circuit Breaker, 15A, 1 Pole, 120/240V AC, 10kA, Plug-In Mount
- MPN: QO115PL
- UPC: 785901095699
- PPN: SCH-QO115PL
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$140.17/ EA
Description
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 1 pole QO circuit breaker is rated at 15A at 120/240VAC. This unit provides 10kA breaking capacity and plug in mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This product has a Powerlink feature. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555 QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555
Specifications
- Rated Current
- 15 A
- Breaking Capacity
- 10 kA 120/240 V AC 50/60 Hz
- Mounting Type
- Plug-in
- Electrical Connection
- Box lugs
- Tightening Torque
- 4 N·m (35.4 lbf·in)
- Width
- 19 mm (0.75 in)
- Net Weight
- 0.227 kg (0.50 lb)
- Ambient Air Temperature For Operation
- 40 °C (104 °F)
- Toxic Heavy Metal Free
- Yes
- Reach Regulation
- Contains SVHC above threshold
- Range Of Product
- QO
- Number Of Spaces Required
- 1
Rated Operational Voltage120/240 V AC
Number of Poles1P
Circuit Breaker TypeStandard
Wire SizeAWG 12 to AWG 2 aluminum, AWG 14 to AWG 2 copper
Height116 mm (4.57 in)
Depth74 mm (2.91 in)
Product CertificationsUL Listed, CSA Certified
Mercury FreeYes
Halogen Content PerformanceHalogen free product
RoHS ComplianceCompliant with exemptions, Product out of China RoHS scope
Product TypeCircuit breaker
Country of OriginMexico
