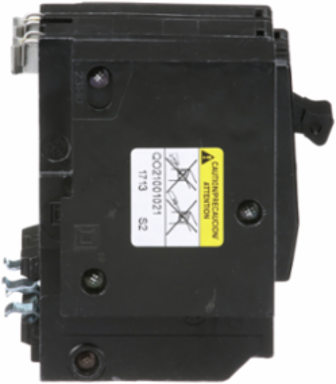

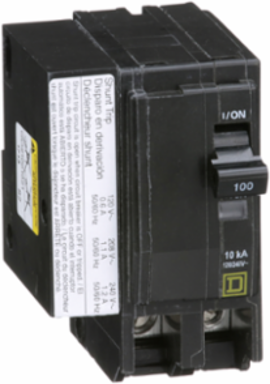

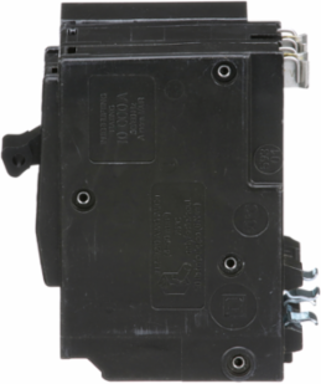

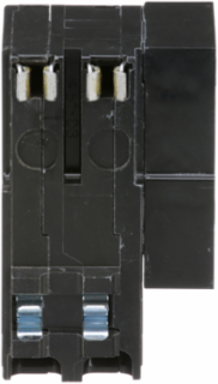

Square D QO21001021 Mini circuit breaker, QO, 100A, 2 pole, 120/240VAC, 10kA, plug in mount, AC shunt
Square D QO21001021 Mini circuit breaker, QO, 100A, 2 pole, 120/240VAC, 10kA, plug in mount, AC shunt
- MPN: QO21001021
- UPC: 785901030539
- PPN: SCH-QO21001021
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$674.57/ EA
Description
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 2 pole QO circuit breaker is rated at 100A at 120/240VAC. This unit provides 10kA breaking capacity and plug in mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This product includes an AC shunt trip. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555 QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555
Specifications
Environment
- Product Certifications
- UL listed || CSA
Ambient Air Temperature For Operation40 °C
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Circularity ProfileN/A
Mercury FreeYes
Eu Rohs DirectiveCompliant with Exemptions
Halogen Content PerformanceHalogen free product
Complementary
- Height
- 89 mm
- Tightening Torque
- 5.6-5.6 N.m
- Awg Gauge
- AWG 4...AWG 2/0 copper or aluminum
- Depth
- 74 mm
Breaking Capacity10 kA 120/240 V AC 50/60 Hz || 10 kA 120 V AC 50/60 Hz
Number Of Spaces Required3
Width57 mm
Net Weight0.445 kg
Specifications
- Circuit Breaker Application
- HACR rated
- Circuit Breaker Type
- standard
- Poles Description
- 2P
- Electrical Connection
- box lugs
- Product Or Component Type
- miniature circuit-breaker
Mounting Modeplug-in
Range Of ProductQO
Accessory / Separate Part Typeshunt trip 120/208/240 V AC
[In] Rated Current100 A
[Ue] Rated Operational Voltage120/240 V AC || 120 V AC
