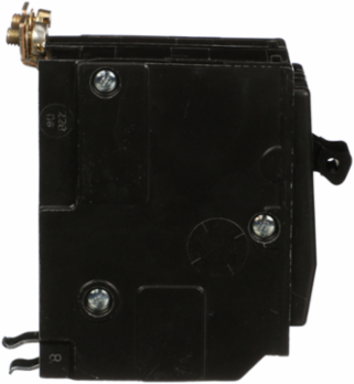

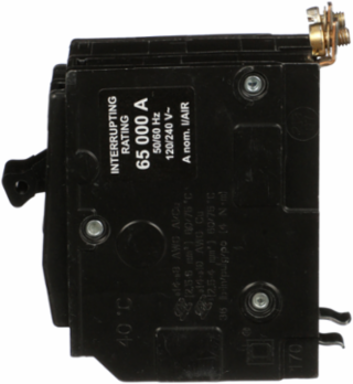

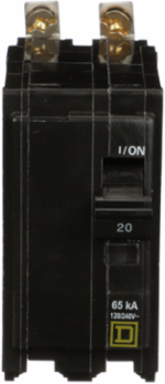

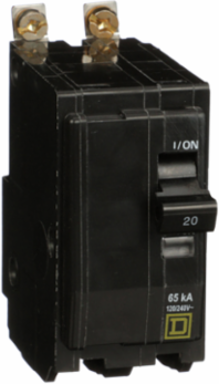

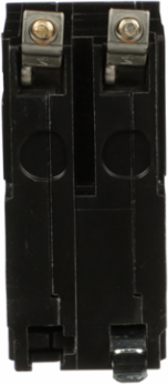

Square D QHB220 Mini Circuit Breaker 20A 2 Pole 120/240V AC 65kA Bolt-On Mount
Square D QHB220 Mini Circuit Breaker 20A 2 Pole 120/240V AC 65kA Bolt-On Mount
- MPN: QHB220
- UPC: 785901341635
- PPN: SCH-QHB220
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$633.02/ EA
Description
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 2 pole QO circuit breaker is rated at 20A at 120/240VAC. This unit provides 65kA breaking capacity and bolt on mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
Specifications
- Current Rating
- 20 A
- Interrupt Rating
- 65 kA
- Circuit Breaker Type
- Standard
- Number of Spaces
- 2
- Tightening Torque
- 4.6 N.m

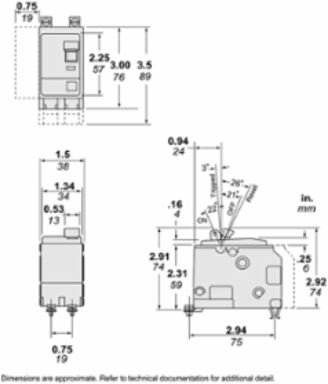

- Width
- 38 mm
- Net Weight
- 0.249 kg
- Product Certifications
- UL Listed, CSA Certified
- Circuit Breaker Application
- HACR rated
- Mercury Free
- Yes
- Halogen Content Performance
- Halogen free product
- Warranty
- 18 months
Voltage120/240 V AC
Mounting TypeBolt-on
Electrical ConnectionPressure plate
Wire SizeAWG 14...AWG 8 copper or aluminum
Height76 mm
Depth74 mm
Ambient Air Temperature for Operation40 °C
Poles2
Toxic Heavy Metal FreeYes
RoHS Compliant with ExemptionsYes
Range of ProductQO
