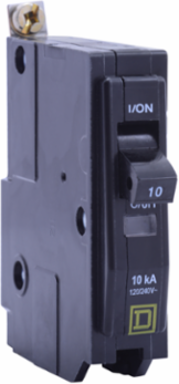

Square D QHB130 Miniature Circuit Breaker 30A 1 Pole 120/240V AC 65kA Bolt-On Mount
Square D QHB130 Miniature Circuit Breaker 30A 1 Pole 120/240V AC 65kA Bolt-On Mount
- MPN: QHB130
- UPC: 785901255390
- PPN: SCH-QHB130
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$364.92/ EA
Description
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 1 pole QO circuit breaker is rated at 30A at 120/240VAC. This unit provides 65kA breaking capacity and bolt on mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
Specifications
- Rated Current
- 30 A
- Breaking Capacity
- 65 kA 120/240 V AC 50/60 Hz, 65 kA 120 V AC 50/60 Hz
- Ambient Air Temperature for Operation
- 40 °C
- Tightening Torque
- 4.6 N.m

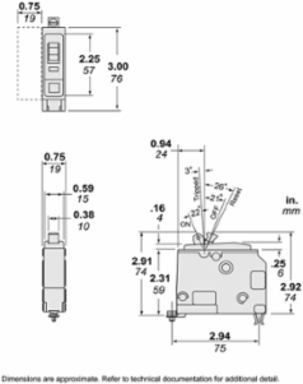

- Height
- 76 mm (2.99 in)
- Depth
- 74 mm (2.91 in)
- Product Certifications
- UL listed, CSA certified
- EU RoHS Directive
- Compliant with Exemptions
- Mercury Free
- Yes
- Electrical Connection
- pressure plate
- Circuit Breaker Type
- standard
- Warranty
- 18 months
Rated Operational Voltage120/240 V AC, 120 V AC
Poles1P
Wire SizeAWG 14...AWG 8 copper or aluminum
Mounting Typebolt-on
Width19 mm (0.75 in)
Net Weight0.136 kg (0.30 lb)
RoHS ComplianceCompliant with Exemptions, RoHS Exemption Yes, China RoHS out of scope
Halogen ContentHalogen free product
Toxic Heavy Metal FreeYes
Range of ProductQO
Circuit Breaker ApplicationHACR rated
Sustainable Offer StatusGreen Premium product
