Square D QOH270 Mini Circuit Breaker 70A 2 Pole 120/240VAC 42kA Plug-in Mount
Square D QOH270 Mini Circuit Breaker 70A 2 Pole 120/240VAC 42kA Plug-in Mount
- MPN: QOH270
- UPC: 785901054894
- PPN: SCH-QOH270
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$417.26/ EA
Description
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 2 pole QO circuit breaker is rated at 70A at 120/240VAC. This unit provides 42kA breaking capacity and plug in mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555
Specifications
- Current Rating
- 70 A
- Interrupt Rating
- 42 kA 120/240 V AC 50/60 Hz
- Mounting Type
- Plug-in
- Electrical Connection
- Box lugs
- Tightening Torque
- 5.6 N.m

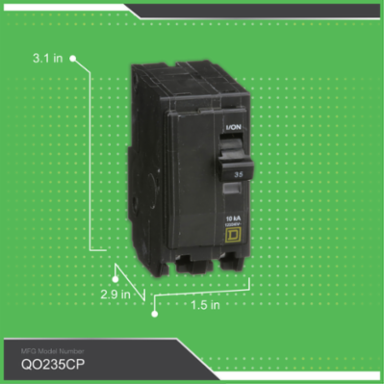

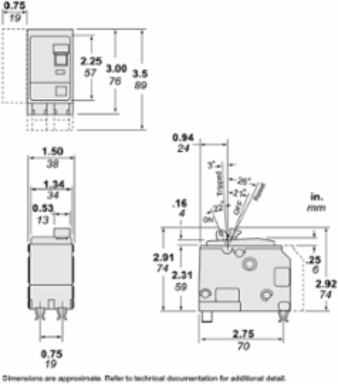

- Width
- 57 mm (2.24 in)
- Net Weight
- 0.340 kg (0.75 lb)
- Ambient Rating
- 40 °C (104 °F)
- RoHS
- Compliant with exemptions, China RoHS out of scope
- Product Type
- Miniature circuit-breaker
Voltage Rating120/240 V AC
Number of Poles2P
Circuit Breaker TypeStandard
Wire SizeAWG 8...AWG 2 copper or aluminum
Height79 mm (3.11 in)
Depth74 mm (2.91 in)
CertificationsUL Listed, CSA
Halogen ContentHalogen free
Mercury FreeYes
RangeQO
