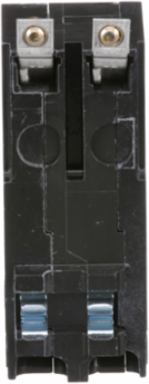

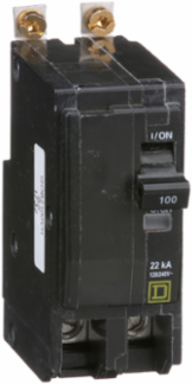

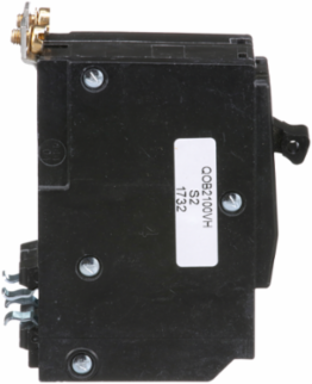

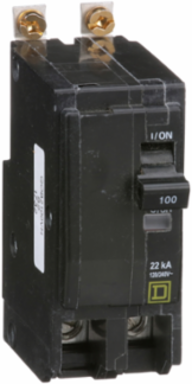

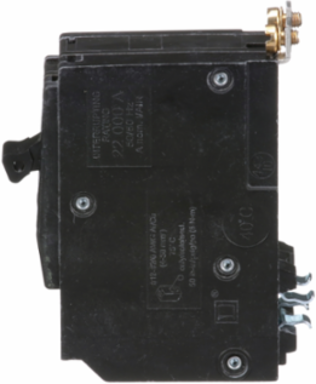

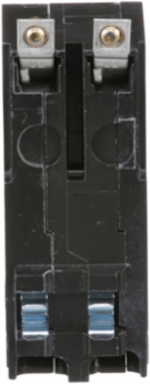

Square D QOB2100VH Mini Circuit Breaker, 100A, 2 Pole, 240VAC, 22kA, Bolt-On Mount
Square D QOB2100VH Mini Circuit Breaker, 100A, 2 Pole, 240VAC, 22kA, Bolt-On Mount
- MPN: QOB2100VH
- UPC: 785901054757
- PPN: SCH-QOB2100VH
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$231.23/ EA
Description
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 2 pole QO circuit breaker is rated at 100A at 240VAC. This unit provides 22kA breaking capacity and bolt on mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555
Specifications
- Rated Current
- 100 A
- Breaking Capacity
- 22 kA 120/240 V AC 50/60 Hz
- Mounting Type
- Bolt-on
- Tightening Torque
- 5.6 N.m

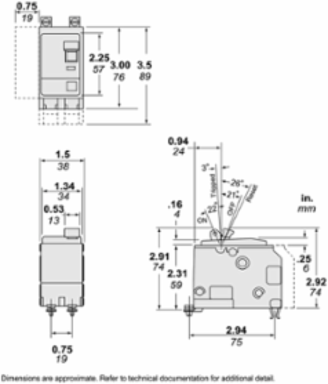

- Width
- 38 mm (1.50 in)
- Net Weight
- 0.340 kg (0.75 lb)
- Circuit Breaker Application
- HACR rated
- Circuit Breaker Type
- standard
- Mercury Free
- Yes
- China RoHS
- Out of China RoHS scope
- RoHS Exemption Information
- Yes
- Product Certifications
- UL Listed, CSA Certified
- Range Of Product
- QO
- Sustainable Offer Status
- Green Premium product
Voltage120/240 V AC
Number of Poles2
Wire SizeAWG 4 to AWG 2/0 copper or aluminum
Height89 mm (3.50 in)
Depth74 mm (2.91 in)
Ambient Air Temperature For Operation40 C (104 F)
Product Or Component Typeminiature circuit-breaker
Electrical Connectionbox lugs
RoHS ComplianceCompliant with Exemptions
REACH RegulationContains Substances of Very High Concern above threshold
Halogen Content PerformanceHalogen free product
Warranty18 months
Number Of Spaces Required2
Circularity ProfileN/A
