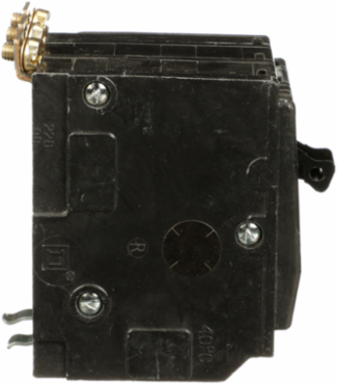

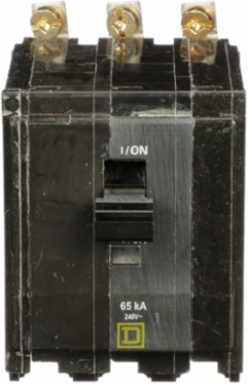

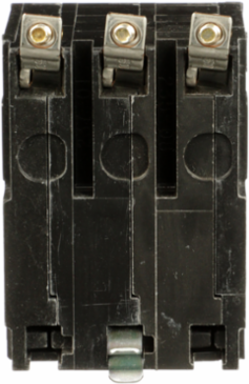

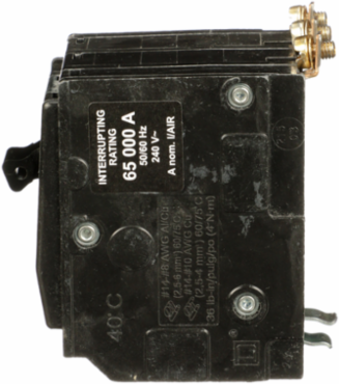

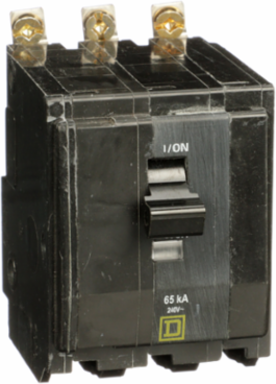

Square D QHB315 Miniature Circuit Breaker 15A 3 Pole 120/240VAC 65kA Bolt-On Mount
Square D QHB315 Miniature Circuit Breaker 15A 3 Pole 120/240VAC 65kA Bolt-On Mount
- MPN: QHB315
- UPC: 785901341659
- PPN: SCH-QHB315
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1095.49/ EA
Description
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 3 pole QO circuit breaker is rated at 15A at 120/240VAC. This unit provides 65kA breaking capacity and bolt on mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
Specifications
- Current Rating
- 15 A
- Interrupt Rating
- 65 kA 120/240 V AC 50/60 Hz
- Circuit Breaker Application
- HACR rated
- Tightening Torque
- 4.6 N.m
- Width
- 57 mm
- Net Weight
- 0.390 kg
- Electrical Connection
- Pressure plate
- Product Certifications
- UL Listed, CSA
- Country of Origin
- Mexico
Voltage120/240 V AC
Number of Poles3
Mounting TypeBolt-on
Height76 mm
Depth74 mm
Circuit Breaker TypeStandard
Wire SizeAWG 14...AWG 8 copper or aluminum
Ambient Rating40 °C
