Schneider Electric RXM2AB2B7PVM Miniature Plug-In Relay, 2 C/O Contacts, 10A, 24V AC, LED Indicator
Schneider Electric RXM2AB2B7PVM Miniature Plug-In Relay, 2 C/O Contacts, 10A, 24V AC, LED Indicator
- MPN: RXM2AB2B7PVM
- PPN: SCH-RXM2AB2B7PVM
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$40.71/ EA
Description

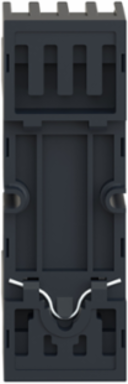

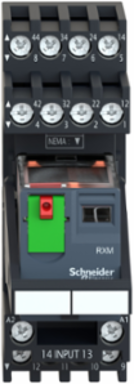

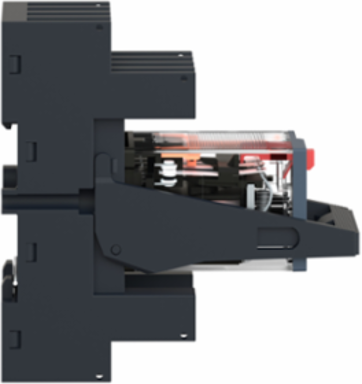

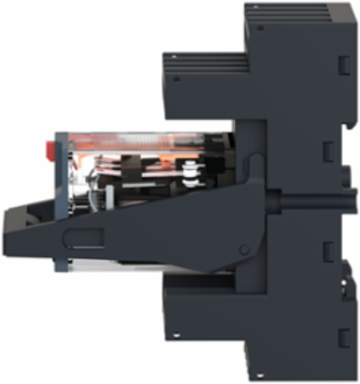

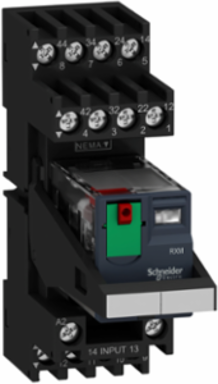

This miniature Plug-In relay belongs to the Schneider Electric Harmony electromechanical relays range. This is a pre-assembled relay mounted on a mixed contact terminal socket with integrated clamp and legend. This is a 12A, 24Vac, 2 CO miniature mechanical relay. This pre-mounted relay is a ready-to-go package saving assembly time. It also offers one-step lockable test button and LED indicator. The miniature relay socket connection is by screw connector or screw clamp terminal type. This pre-assembled relay weighs 0.099Kg. Its design is fit for industrial machines, packaging, textile, HVAC, automation control panels, low/medium voltage switchgear, motor controls, PLC Interfaces, power supplies, building or medical equipment, lighting controls. It is a green premium product and conforms to international standard and certifications like IEC, UL, EAC, CSA, Lloyd's, RoHS and REACH. It is sold in lots of 30. The RXM plug-in relays are a series of industrial plug-in relays designed for both simple and complex automation systems and available with 2 CO (12A), 3 CO (10A) or 4 CO (6A) contacts.
Specifications
Environment
- Product Certifications
- UL || Lloyd's || CE || CSA || GOST || IECEE CB Scheme
- Pollution Degree
- 2
- Dielectric Strength
- 1300 V AC between contacts micro disconnection || 2000 V AC between coil and contact basic insulation || 2000 V AC between poles basic insulation
- Shock Resistance
- 10 gnin operation || 30 gnnot operating
- Ambient Air Temperature For Storage
- -40-85 °C
StandardsUL 508 || IEC 61810-1 || CSA C22.2 No 14 || IEC 61984
Ambient Air Temperature For Operation-40-55 °C
Vibration Resistance3 gn +/- 1 mm 10-150 Hz)5 cycles in operation || 5 gn +/- 1 mm 10-150 Hz)5 cycles not operating
Ip Degree Of ProtectionIP20 IEC 60529
Contractual warranty
- Warranty
- 18 Months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1511008EN
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileN/A
Complementary
- Maximum Switching Capacity
- 2500 VA AC || 280 W DC
- Continuous Output Current
- 10 A
- Torque Value
- 1 N.m
- Test Levels
- level A group mounting
- Reset Time
- 20 ms
- Cad Overall Height
- 79 mm
- Average Resistance
- 180 Ohm 20 °C +/- 10 %
- Connections - Terminals
- connector, 1 x 0.25...1 x 2.5 mm² AWG 22...AWG 14) flexible with cable end || connector, 2 x 0.25...2 x 1 mm² AWG 22...AWG 17) flexible with cable end || connector, 1 x 0.5...1 x 2.5 mm² AWG 20...AWG 14) solid without cable end || connector, 2 x 0.5...2 x 1.5 mm² AWG 20...AWG 16) solid without cable end
- Rated Operational Voltage Limits
- 19.2...26.4 V AC
- Sale Per Indivisible Quantity
- 30
- Minimum Switching Current
- 10 mA
- Mechanical Durability
- 10000000 cycles
- Operating Time
- 20 ms
- Drop-Out Voltage Threshold
- >= 0.3 Uc AC
- Cad Overall Width
- 26.9 mm
- Minimum Switching Capacity
- 170 mW 10 mA, 17 V
Safety Reliability DataB10d = 100000
Operating Rate<= 1200 cycles/hour under load || <= 18000 cycles/hour no-load
Protection CategoryRT I
Contacts MaterialAgNi
Net Weight0.096 kg
Maximum Switching Voltage250 V
Device Presentationcomplete product
Average Coil Consumption1.2 W, AC
[Ie] Rated Operational Current6 A 28 V DC) NC IEC || 6 A 250 V AC) NC IEC || 10 A 28 V DC) NO UL || 10 A 250 V AC) NO UL
[Ui] Rated Insulation Voltage250 V IEC
Electrical Durability100000 cycles resistive
Operating Positionany position
Load Current10 A 250 V AC || 10 A 28 V DC
[Uimp] Rated Impulse Withstand Voltage4 kV 1.2/50 µs
Minimum Switching Voltage17 V
Cad Overall Depth78.45 mm
Specifications
- Utilisation Coefficient
- 20 %
- Range Of Product
- Harmony Electromechanical Relays
- Status Led
- with
- Series Name
- Miniature
- Device Short Name
- RXM
[Uc] Control Circuit Voltage24 V AC 50/60 Hz
Product Or Component Typepre-assembled plug-in relay with socket
Control Typelockable test button
Contacts Type And Composition2 C/O
