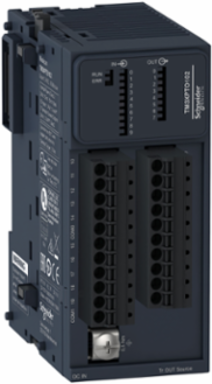

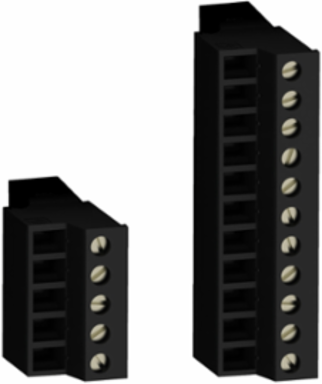

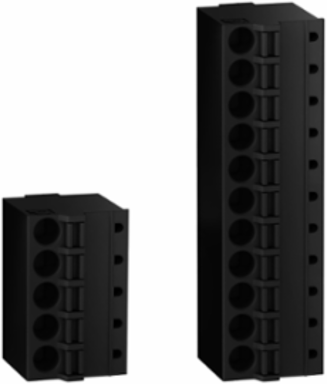

Schneider Electric TM3XFHSC202G High-Speed Counting Module 10 Inputs 8 Outputs 200 kHz
- MPN: TM3XFHSC202G
- PPN: SCH-TM3XFHSC202G
CAD
$778.83
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The Schneider Electric High-Speed Counting Module is an advanced solution designed to enhance automation systems with its impressive capacity of 10 inputs and 8 outputs, supporting counting speeds of up to 200 kHz. This module is engineered for precision and reliability, making it a suitable choice for applications requiring rapid and accurate counting. By integrating this module into your setup, you can optimize performance in challenging environments, ensuring seamless interaction with a variety of control systems. Its robust design reflects Schneider Electric's commitment to quality and innovation in industrial automation solutions.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, Indonesia, Singapore, United States
Depth85 mm
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8
- Counting Mode
- 2 main expert function (main counting function, frequency meter, period meter), Max 8 simple counting function
- Local Signalling
- 1 LED I/O, 1 LED RUN, 1 LED ERR
- Resistance To Fast Transients
- 2 kV alimentation cableEN/IEC 61000-4-41 kV Ethernet lineEN/IEC 61000-4-4, 1 kV serial linkEN/IEC 61000-4-4, 1 kV inputEN/IEC 61000-4-4, 1 kV transistor outputEN/IEC 61000-4-4
- Certificate Agency
- CSA, cULus, IACS E10, RCM, CE, UKCA, EAC
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.3 kg CO2 eq., 0.2961208654602444
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 11 kg CO2 eq., 10.748979054624499
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Serviceability
- No
- Field Service Division
- IDIBS
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Market Segmentation Id
- INDUSTRIAL
- Product Kit Identifier
- N
- Current Consumption
- 100 mA 5 V DC50 mA 24 V DC
- Event Management
- 8 maximum per PLC <= 100 µsThresholds < 10 µs
- Product Or Component Type
- module hight speed counting
- Reset
- automatic reset
- Resistance To Electromagnetic Fields
- 10 V/m 80 MHz...1 GHz EN/IEC 61000-4-33 V/m 1.4 GHz...2 GHz EN/IEC 61000-4-31 V/m 2 GHz...3 GHz EN/IEC 61000-4-3
- Returnability
- No
- Shock Resistance
- 15 gn 11 ms
- Sustainable Packaging
- Yes
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Pep Code
- ENVPEP1904007EN
- Pep Verification Date
- 2024-11-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Energy Model - Manufacturing [A1-a3]
- Indonesia, ID
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2018; China, CN
- Height Nominal
- 90 mm
- [Us] Rated Supply Voltage
- 24 V DC external supply - 15...20 %)
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8538908180
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Electrical Circuit Typestandard input, latch input
Mounting Supporttop hat type TH35-15 rail IEC 60715, top hat type TH35-7.5 rail IEC 60715, plate or panel with fixing kit
Vibration Resistance1 gn 8.4-200 Hz panel3.5 mm 2-8.4 Hz DIN rail1 gn 8.4-200 Hz DIN rail, 3.5 mm 2-8.4 Hz panel
Carbon Footprint Of The Distribution Phase [A4]1.1545082997099696, 1 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.0039127175253750295, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]128 kg CO2 eq., 127.95944296049423
Local Publishable Date2026-01-12
Stocking FlagY
Device TypePLC System - PLC Component
TraceabilityYes
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1904007EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1936
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Market SegmentationIndustrial
Counting Frequency200 kHz
Electromagnetic Emissionconducted emissions 120...69 dBµV/m QP10-150 kHz EN/IEC 55011conducted emissions 63 dBμV/m QP1.5-30 MHz EN/IEC 55011radiated emissions 40 dBµV/m class A30-230 MHz EN/IEC 55011conducted emissions 79...63 dBμV/m QP150-1500 kHz EN/IEC 55011radiated emissions 47 dBµV/m class A230-1000 MHz EN/IEC 55011
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Range Of ProductModicon TM3
Resistance To Conducted Disturbances10 V 0.15...80 MHz EN/IEC 61000-4-4
Resistance To Electrostatic Discharge8 kV in air EN/IEC 61000-4-24 kV on contact EN/IEC 61000-4-2
ServicesHSC simple One shot/ModuloHSC main single phase One shot/Modulo/Event countingHSC main dual phase Modulo/Free-largeperiod meter Edge to Edge, Edge to Opposite
Software Versionv6.2.2
Total Lifecycle Carbon Footprint140 kg CO2 eq.
Dc Supply Voltage24-24 V
Database Version2023-02
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionTo count the pulses generated by a sensor or to process signals from an incremental encoder 100% of the time for 10 years
Functional-unit UnitUnit
Energy Consumption On Product Lifetime In Kwh148.92
Energy Model - Installation [A5]Electricity Mix; Low voltage; 2018; China, CN
Energy Model - End Of Life [C1-c4]Electricity Mix; Low voltage; 2018; China, CN
Width Nominal39 mm
Discrete I/O Number18
Package Weight(Lbs)209.000 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -20-60 °C horizontal installation, -20-60 °C horizontal installation, -20-50 °C vertical installation, -20-50 °C vertical installation-20-60 °C horizontal installation, -20-60 °C horizontal installation, -20-50 °C vertical installation
- Relative Humidity
- 10-95 %, without condensation in operation), 10-95 %, without condensation in storage)
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI1904007EN
- Eu Rohs Directive
- Compliant By Exemption
- Operating Altitude
- 0...6561.68 ft (0...2000 m)
- Packaging Without Single Use Plastic
- Yes
- Storage Altitude
- 0-3000 m
- Pep Verification Date
- 2024-11-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
Ambient Air Temperature For Storage-40-85 °C, -40-85 °C
Take BackNo
China Rohs RegulationX
Carbon Footprint140.1629638978143
Environmental DisclosureENVPEP1904007EN
Ip Degree Of ProtectionIP20 with protective cover in place
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP1904007EN
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- module hight speed counting
Range Of ProductModicon TM3
ETIM
- ETIM 8
- EC001601
ETIM 9EC001601
Output Attributes
- Discrete Output Current
- 300 mA fast output Q0...Q7)
- Number Of Output Channels
- 8
- Output Voltage
- 24 V DC transistor output
Discrete Output Logicsource
Output Protection Typeagainst overload and short-circuits
Output Voltage Limits30 V DC
Input Attributes
- Discrete Input Logic
- sink or source
- Number Of Input Channels
- 10
Discrete Input Voltage24 V DC
