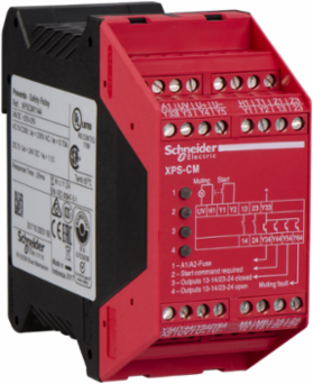

Telemecanique Sensors XPSCM1144P Safety Module for Single-Beam Photo-Electric Sensors, 24 V DC, Built-in Muting
- MPN: XPSCM1144P
- PPN: SCH-XPSCM1144P
CAD
$1328.09
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This XPSCM safety module is for monitoring of single-beam photo-electric sensors and has a built-in "muting" function. It meets the requirements of PL c/Category 2 conforming to EN/ISO 13849-1.and SILCL1 conforming to EN/IEC 61508 and EN/IEC 62061. Used in conjunction with XU2S single-beam photo-electric sensors (periodically tested), it establishes a category 2 light curtain conforming to IEC/EN 61496 parts 1 and 2.
Documentation & Downloads
Specifications
Key Specifications
| [Us] Rated Supply Voltage | 24 V DC - 20...20 % |
|---|---|
| Product Or Component Type | safety module |
| Safety Module Name | XPSCM |
| Connections - Terminals | captive screw clamp terminals, removable terminal block, 1 x 0.2...1 x 2.5 mm² solid or flexible without cable end || captive screw clamp terminals, removable terminal block, 1 x 0.25...1 x 2.5 mm² flexible with cable end, with bezel || captive screw clamp terminals, removable terminal block, 1 x 0.25...1 x 2.5 mm² flexible with cable end, without bezel || captive screw clamp terminals, removable terminal block, 2 x 0.2...2 x 1 mm² solid without cable end || captive screw clamp terminals, removable terminal block, 2 x 0.2...2 x 1.5 mm² flexible without cable end || captive screw clamp terminals, removable terminal block, 2 x 0.25...2 x 1 mm² flexible with cable end, without bezel || captive screw clamp terminals, removable terminal block, 2 x 0.5...2 x 1.5 mm² flexible with cable end, with double bezel |
| Number Of Additional Circuits | 0 |
| Safety Module Application | for monitoring of single beam photo-electric sensor |
| Function Of Module | built-in muting |
| Range Of Product | Telemecanique Safety light curtains XUSL |
|---|---|
| Number Of Inputs | 2 MA, MB)muting function || 4 Z1, Z2, Z3, Z4)sensor |
| Output Type | relay 2 NO 13-14, 23-24), volt-free |
| Input Compatibility | XC limit switch muting function || XU2M18PP340... muting function || XU2S18PP340... (infrared) sensor || XU9M18PP340... muting function |
| Input Voltage | 24 V DCsensor || 24 V DC U+, U-)muting function |
| Safety Reliability Data | MTTFd = 16.6 years EN/ISO 13849-1 || DC = 95.5 % EN/ISO 13849-1 || PFH = 3.12E-7 1/h EN/IEC 61508 || PFHd = 3.12E-7 1/h EN/IEC 62061 |
| Safety Level | can reach category 2 with the appropriate control system and correctly wired EN/ISO 13849-1 || can reach SILCL 1 with the appropriate control system and correctly wired EN/IEC 62061 || can reach PL = c with the appropriate control system and correctly wired EN/ISO 13849-1 |
Complementary
| Muting Maximum Duration | 60 s - 10...30 %) |
|---|---|
| Power Consumption In W | 15 W |
| Minimum Output Current | 10 mA relay output |
| Associated Fuse Rating | 4 A gG relay output DIN VDE 0660 part 200 || 4 A gG relay output EN/IEC 60947-5-1 || 6 A fast blow relay output DIN VDE 0660 part 200 || 6 A fast blow relay output EN/IEC 60947-5-1 |
| Local Signalling | 1 LED electronic internal fuse status || 1 LED restarting || 1 LED safety outputs closed || 1 LED safety outputs open || 1 incandescent lamp muting 4-6.5 W |
| Sensor Power Supply | U+, U- 24-24 V DC |
| Maximum Supply Current For Sensors | 200 mA |
| Synchronisation Time Between Inputs | 3 s +/- 20 %) for the activation of the MA/MB muting signal |
| Maximum Response Time On Input Open | 25 ms |
| Output Thermal Current | 5.6 A per relay || 11 A maximum |
|---|---|
| Minimum Output Voltage | 17 V relay output |
| Input Current | 200 mA muting function |
| [Uimp] Rated Impulse Withstand Voltage | 4 kV III DIN VDE 0110 parts 1 and 2 || 4 kV III EN/IEC 60947-5-1 |
| [Ui] Rated Insulation Voltage | 300 V 2)DIN VDE 0110 parts 1 and 2 || 300 V 2)EN/IEC 60947-5-1 |
| Maximum Line Resistance | 10 Ohm sensor power supply |
| Protection Type | electronic internal fuse |
| Breaking Capacity | 20 mA 24 V solid state output || 1.5 A 24 V DC-13)50 ms relay output |
| Breaking Capacity | 180 VA holding AC-15 C300 relay output || 1800 VA inrush AC-15 C300 relay output |
Environment
| Ambient Air Temperature For Operation | -10-55 °C |
|---|---|
| Ambient Air Temperature For Storage | -25-85 °C |
| Ip Degree Of Protection | IP20 IEC 60529 terminals) || IP40 IEC 60529 enclosure) |
|---|
Contractual warranty
| Warranty | 18 months |
|---|
Offer Sustainability
| Rohs Exemption Information | Yes |
|---|---|
| Environmental Disclosure | ENVPEP1406024EN |
| Pvc Free | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins |
| Circularity Profile | ENVEOLI1406024EN |
| Mercury Free | Yes |
|---|---|
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| China Rohs Regulation | X |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
