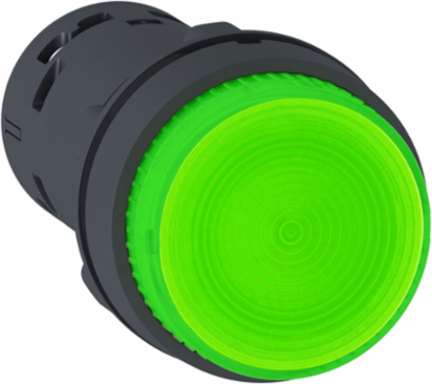

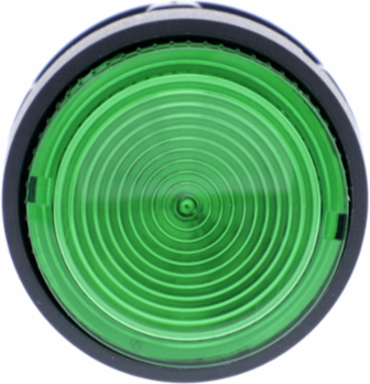

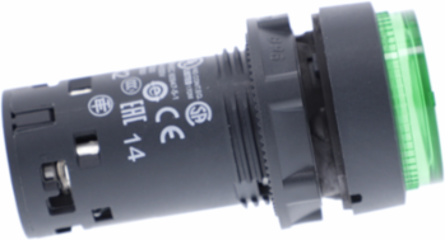

Schneider Electric XB7NW33M1 Harmony XB7 Illuminated Push Button, 22mm, Green, 230V AC, IP65
- MPN: XB7NW33M1
- PPN: SCH-XB7NW33M1
CAD
$177.89
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This Harmony XB7, illuminated projecting monolithic green push button operates with a spring return mechanism, is supplied with 230V AC, uses an integral LED and screw clamp terminals. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance due to clear colors and illumination via integral LED, minimizing errors in machine control and enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. It has a double insulated plastic bezel. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, Indonesia
Physical Attributes
- Cad Overall Depth
- 57.5 mm
- Cad Overall Width
- 29 mm
Cad Overall Height29 mm
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Electrical Durability
- 1000000 cycles, DC-13, 0.3 A 24 V 216000 cyc/mn 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 0.03 A 230 V 216000 cyc/mn 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 0.09 A 240 V 108000 cyc/mn 0.5 IEC 60947-5-1 appendix C
- Shape Of Screw Head
- cross JIS No 1, cross Philips no 1, cross pozidriv No 1slotted flat Ø 4 mm, slotted flat Ø 5.5 mm
- [Us] Rated Supply Voltage
- 230 V, 230 V AC 50/60 Hz
- Carbon Footprint Of The Distribution Phase [A4]
- 0.003032, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.000035731, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 16 kg CO2 eq., 15.516
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- Y
- Use Carbon Footprint
- 15.516
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 7
- Without Single Use Plastic
- No
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Compatibility Code
- XB7
- Contacts Type And Composition
- 1 NO
- Device Short Name
- XB7
- Electrical Shock Protection Class
- class II conforming to IEC 61140
- Fixing Mode
- fixing nut beneath head 2-2.4 N.m
- Mechanical Durability
- 300000 cycles
- Operator Profile
- green projecting, unmarked
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Protective Treatment
- TH
- Returnability
- No
- Service Life
- 70000 h at rated voltage and 25 °C
- Shock Resistance
- 50 gn 11 ms) half sine wave acceleration IEC 60068-2-2730 gn 18 ms) half sine wave acceleration
- Software Version
- EIME v5.7.3
- Sustainable Packaging
- No
- Total Lifecycle Carbon Footprint
- 16 kg CO2 eq.
- Vibration Resistance
- 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
- Pep Code
- ENVPEP2502022EN
- Pep Verification Date
- 2018-05-01
- Psr Version
- PSR-0005-ed2-EN-2016 03 29
- Data Source
- referent product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 20
- Energy Model - Installation [A5]
- Electricity Mix; AC; < 1kV; EU-27
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; AC; < 1kV; EU-27
- [Ie] Rated Operational Current
- 0.1 A 250 V, DC-13, R300 IEC 60947-5-10.22 A 125 V, DC-13, R300 IEC 60947-5-10.3 A 240 V, AC-14, D300 IEC 60947-5-10.6 A 120 V, AC-14, D300 IEC 60947-5-1
- [Uimp] Rated Impulse Withstand Voltage
- 4 kV IEC 60947-1

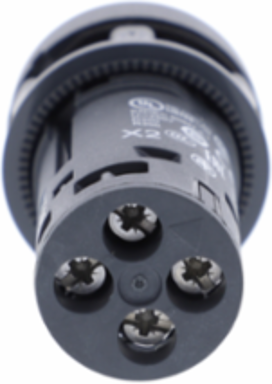

- Connections - Terminals
- screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1screw clamp terminals, 1 x 0.34...2 x 2.5 mm² without cable end IEC 60947-1
- Carbon Footprint (Kg Co2 Eq Total Life Cycle)
- 16.021
- Package Weight(Lbs)
- 25.000 g
- Warranty (In Months)
- 18
- Air Pollution (M3) Total Life Cycle
- 717.88
- Air Pollution (M3) Operational Energy Use [B6]
- 665.44
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) Manufacturing [A1-a3]
- 5.623
- Global Warming (Kg.Equivalent.Co2) Total Life Cycle
- 16.021
- Non-hazardous Waste Disposed Of (Kg) Total Life Cycle
- 58.169
- Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Total Life Cycle
- 297.45
- Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
- 291.85
- Total Use Of Primary Energy During The Life Cycle (Mj) Manufacturing [A1-a3]
- 5.6647
- Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Total Life Cycle
- 22.639
- Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle
- 297
- Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
- 291.85
- Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
- 22.493
- Water Pollution (M3) Manufacturing [A1-a3]
- 83.891
- Water Pollution (M3) End Of Life [C1-c4]
- 0.2887
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial

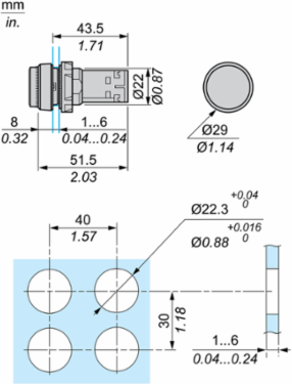

Fixing Center>= 30 x 40 mm support panel) metal 1-6 mm, >= 30 x 40 mm support panel) metal 1-6 mm, >= 30 x 40 mm support panel) metal 1-6 mm, >= 30 x 40 mm support panel) metal 1-6 mm, >= 30 x 40 mm support panel) plastic 2-6 mm, >= 30 x 40 mm support panel) plastic 2-6 mm, >= 30 x 40 mm support panel) plastic 2-6 mm, >= 30 x 40 mm support panel) plastic 2-6 mm>= 30 x 40 mm support panel) metal 1-6 mm, >= 30 x 40 mm support panel) metal 1-6 mm, >= 30 x 40 mm support panel) metal 1-6 mm, >= 30 x 40 mm support panel) metal 1-6 mm, >= 30 x 40 mm support panel) plastic 2-6 mm, >= 30 x 40 mm support panel) plastic 2-6 mm
Certificate AgencyGOST, CCC
Terminals Description Iso N°1(13-14)NO, (13-14)NO
Carbon Footprint Of The End-of-life Phase [C1 To C4]0 kg CO2 eq., 0.0034757
Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.5 kg CO2 eq., 0.49871
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2502022EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Bulb Baseintegral LED
Contact Operationslow-break
Current Consumption22...27 mA
Electrical Reliabilityλ <= 10exp(-6) 17 V 5 mA IEC 60947-5-4
Electromagnetic Emissionclass B IEC 55011
Light SourceLED
Mounting Diameter22 mm
Positive Openingwith (only NO)
Product Or Component Typeilluminated push-button
Range Of ProductHarmony XB7
Sale Per Indivisible Quantity10
Shape Of Signaling Unit Headround
Signalling Typesteady
Supply Voltage Limits195-264 V AC
Tightening Torque0.8-1.2 N.m IEC 60947-1
Type Of Operatorspring return
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2016-11
Pcr VersionPCR-ed3-EN-2015 04 02
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionSwitch ON/OFF electical contact, and/or provide visual signaling for 20 years at a 30% use rate.
Functional-unit Unitunité (unit)
Energy Model - Manufacturing [A1-a3]Energy model used: France
Energy Model - Use [B6]Electricity Mix; AC; < 1kV; EU-27
Recyclability Potential In %53
[Ui] Rated Insulation Voltage250 V 3)IEC 60947-1
Cap/Operator Or Lens Colourgreen
Short-circuit Protection4 A cartridge fuse gG IEC 60947-5-1
Nbr. Of Units In Pkg.1
Take-backNo
Acidification Of Soil And Water (Kg.Equivalent.So2) Total Life Cycle0.1183
Air Pollution (M3) Manufacturing [A1-a3]52.071
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Total Life Cycle165.53
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]159.83
Global Warming (Kg.Equivalent.Co2) Operational Energy Use [B6]15.516
Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]58.039
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]5.5192
Total Use Of Primary Energy During The Life Cycle (Mj) Total Life Cycle320.09
Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]314.35
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]22.493
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]5.0775
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle22.638
Water Pollution (M3) Total Life Cycle735.75
Water Pollution (M3) Operational Energy Use [B6]651.07
Customs Code8536509031
Environment Attributes Main
- Ambient Air Temperature For Operation
- -25-70 °C, -25-70 °C
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 16.021
- Environmental Disclosure
- ENVPEP2502022EN
- Ip Degree Of Protection
- IP20 IEC 60529 rear face)IP65 IEC 60529 front face)
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2018-05-01
- Psr Version
- PSR-0005-ed2-EN-2016 03 29
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Circularity ProfileENVEOLI2502022EN
Eu Rohs DirectiveCompliant By Exemption
Nema Degree Of ProtectionUL type 12NEMA 12 UL 50 E
Packaging Without Single Use PlasticNo
Pep CodeENVPEP2502022EN
Pcr VersionPCR-ed3-EN-2015 04 02
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- illuminated push-button
Range Of ProductHarmony XB7
ETIM
- ETIM 8
- EC001028
ETIM 9EC001028
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Overview Attributes
- Device Presentation
- monolithic product
