Schneider Electric TM262M25MESS8T Modicon M262 Motion Controller 8 Axes 24V DC 0.67kg
Schneider Electric TM262M25MESS8T Modicon M262 Motion Controller 8 Axes 24V DC 0.67kg
- MPN: TM262M25MESS8T
- PPN: SCH-TM262M25MESS8T
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$3894.71/ EA
Description

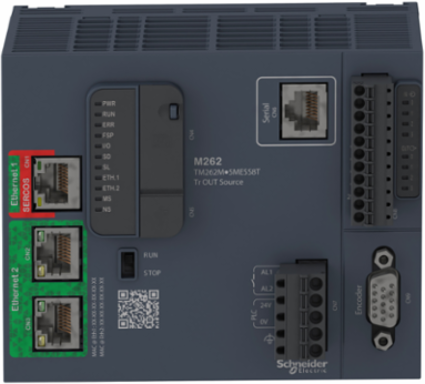

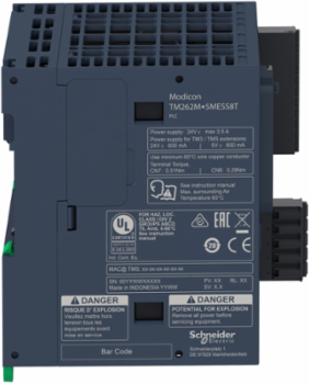

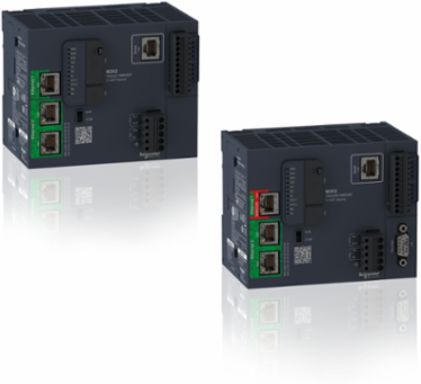

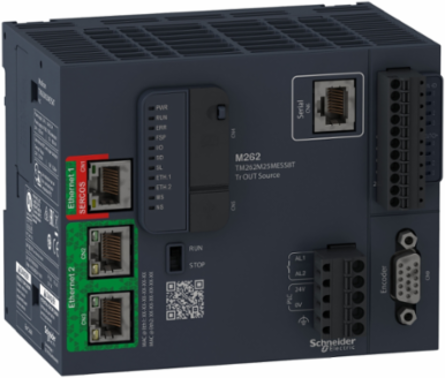

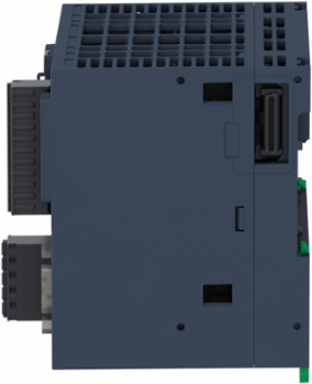

Modicon M262 logic/motion controllers are designed for performance-demanding machines, IIoT-ready and combine logic, motion and safety control applications. TM262M25MESS8T is specialized in the motion control of 4 fast digital inputs and 4 fast digital ouputs, 1 encoder input and up to 8 synchronized axes, embedding a safety control application according to SIL3. This motion controller embeds 3 Ethernet-based networks (EtherNet/IP, Modbus/TCP, Sercos), one serial port (Modbus, ASCII, Machine Expert protocols). Modicon M262 are logic/motion controllers with embedded cloud connectivity, figuring cybersecurity capabilities, supporting monitoring, analytics and predictive maintenance. It is powered with a non-isolated 24V DC power supply, has a built-in overload protection, embeds a dual-core processor, reaches a 5ns/instruction performance. This motion controller has one communication bus (Ethernet, CANopen), one IO bus, one IO port, one encoder connector. It measures 125mm width, 90mm depth, and 100 mm height. It weighs 0.670kg. This controller is designed for machinery requiring integrated IIoT connectivity or encrypted communication. Certified with CE, cULus HazLoc, RCM, EAC, Achilles L2, EU RO Mutual, Conform to UL 61010-1/-2-201, CSAC22.2 No. 61010-1/-2-201, ANSI/ISA 12-12-01, EN 61131-2. This controller is compatible with TMS CANopen/Ethernet smart communication module, Modicon TM3 IO expansion modules, configured by EcoStruxure Machine Expert. Modicon M262 logic controller installs on 35mm DIN rail with Clip-on locks. Modicon M262 logic/motion controllers are the IIoT-ready controllers for performance machines. Modicon M262 logic/motion controllers embed Industrial Internet of Things (IIoT) protocols and encryption to provide direct cloud connectivity & digital services.
Specifications
Complementary
- Discrete Input Logic
- sink
- Data Backed Up
- 1 GB built-in flash memory backup of user programs
- Electrical Connection
- removable spring terminal block for inputs and outputs || removable spring terminal block for connecting the 24 V DC power supply
- Maximum Cable Distance Between Devices
- shielded cable <3 m fast input || shielded cable <3 m fast output || unshielded cable <50 m input || unshielded cable <50 m output || shielded cable <30 m RS485 link || shielded cable <15 m RS232
- Discrete Output Logic
- source
- Inrush Current
- 40 A
- Discrete Output Number
- 4 transistor fast output
- Communication Service
- MQTTs || OPC UA server (Encrypt) || OPC UA client (Encrypt) || HTTPs Methods (API) || web server || web visu || TLS 1.2 || TLS 1.3 || SNTP || NTP client/server || FTP client/server || FTPs server || SQL client (remote access) || DHCP client || DHCP server || DNS client || POP3s client || SMTP client || SNMP client/server
- Accuracy
- +/- 0.1 % 0.02-0.1 kHz fast output || +/- 1 % 0.1-1 kHz fast output
- Transmission Rate
- 115 kbit/s 15-15 m RS485 || 115 kbit/s 3-3 m RS232 || 480 Mbit/s 3-3 m USB || 10/100 Mbit/s Ethernet1 || 10/100/1000 Mbit/s Ethernet2
- Communication Port Protocol
- EtherNet/IP adapter || EtherNet/IP scanner || Modbus TCP client/server || Modbus TCP IO scanner || Modbus TCP NVL || Ethernet RSTP || Modbus SL client/server || Modbus SL IO scanner || Modbus SL modem management || Machine Expert || ASCII manager || ASCII modem management || Sercos III master
- Reset Time
- 200 ms automatic reset fast output
- Maximum Number Of I/O Expansion Module
- 7 TM3 IO module remote || 7 TM3 IO module local || 64 TM3, TM5 or TM7 IO island distributed
- Discrete Output Current
- 0.5 A fast output Q0...Q3)
- Voltage State 0 Guaranteed
- <= 5 V DC
- Output Voltage Limits
- 30 V DC
- Memory Capacity
- 32 MB program RAM || 32 MB OS/website RAM || 192 MB system memory RAM
- Integrated Connection Type
- Ethernet/Sercos 1 RJ45 10/100BASE-T || Ethernet 2 2 RJ45 100/1000BASE-T || serial link RJ45 RS232/RS485 || 1 encoder female SUB-D 15 RS422/SSI || Smart Communication Bus || TM3 IO bus || USB type mini B
- Supply Voltage Limits
- 20.4-28.8 V DC
- Local Signalling
- PWR 1 LED green/red) || RUN 1 LED green/red) || ERROR (fault) 1 LED green/red) || stop forced 1 LED green/red) || I/O error (I/O) 1 LED green/red) || SD card activity 1 LED green/orange) || SL activity 1 LED green/orange) || ETH1 state 1 LED green/red) || ETH2 state 1 LED green/red) || EIP MS 1 LED green/red) || EIP NS 1 LED green/red) || Sercos 1 LED green/red)
- Response Time
- <= 1 µs turn-on, I0...I3 fast input || <= 1 µs turn-off, I0...I3 fast input || <= 1 µs turn-on, Q0...Q3 fast output || <= 1 µs turn-off, Q0...Q3 fast output
- Maximum Output Frequency
- 300 kHz
- Overvoltage Protection
- with
- Width
- 125 mm
- Maximum Tungsten Load
- <1.5 W
- Discrete Input Number
- 4 , discrete input fast input IEC 61131-2 Type 1
- Data Storage Equipment
- <= 32 GB SDHC card optional)
- Maximum Number Of Connected Devices
- EtherNet/IP <64 || Modbus TCP <64 || Modbus TCP/EtherNet/IP <128
Power Consumption In W82 W
Discrete Output Typetransistor
Input Impedance2.81 kOhm input
Height100 mm
Discrete Input Voltage24 V
Encoder Typeincremental encoder
Discrete Input Voltage TypeDC
Positioning Functionslibraries axes coordinated || libraries axes synchronous || Sercos 3 motion bus
Maximum Current Per Output Common0.5 A Q0...Q3 fast output
Clock Drift<= 10 s/month 25-25 °C
Backup Time1000 h 25 °C
Cycle Time0.5 ms
Net Weight0.67 kg
Application Structure8 event tasks || 4 cyclic master tasks || 3 cyclic master tasks + 1 freewheeling task || 8 external event tasks
Configurable Filtering Time0.001 ms fast input || 0.002 ms fast input || 0.005 ms fast input || 0.01 ms fast input || 0.05 ms fast input || 0.1 ms fast input || 0.5 ms fast input || 1 ms fast input || 4 ms fast input || 12 ms fast input
Discrete Output Voltage24 V DC
Voltage State 1 Guaranteed>= 15 V DC
Product Compatibilityexternal encoder 5/24 V DC no encoder power supply
Mounting Supporttop hat type TH35-15 rail IEC 60715 || top hat type TH35-7.5 rail IEC 60715 || plate or panel with fixing kit
Surge Withstand1 kV power lines (DC) common mode IEC 61000-4-5 || 1 kV shielded cable common mode IEC 61000-4-5 || 0.5 kV relay output differential mode IEC 61000-4-5 || 1 kV input common mode IEC 61000-4-5 || 1 kV transistor output common mode IEC 61000-4-5
Discrete Input Current7.5 mA fast input
Execution Time For 1 Kinstruction0.003 ms
Realtime Clockwith
Depth90 mm
Protection Typeshort-circuit and overload protection with automatic reset || reverse polarity protection || short-circuit protection
Maximum Leakage Current10 µA output
Insulationbetween fast input and internal logic 550 V AC || non-insulated between inputs || between output and internal logic 550 V AC || non-insulated between outputs || between input and output 550 V AC || between supply and internal logic 550 V AC || non-insulated between supply and ground
Specifications
- [Us] Rated Supply Voltage
- 24 V DC - 15...20 %
- Product Or Component Type
- motion controller
- Upstream Connectivity
- IIoT-ready machine to cloud || connected machine to plant
Range Of ProductLogic/motion controller - Modicon M262
Discrete I/O Number8
Environment
- Product Certifications
- CE || cULus || cULus HazLoc Class I Division 2 CSA 22-2 No 213 || RCM || EAC || Achilles || KC
- Resistance To Electromagnetic Fields
- 10 V/m 80 MHz...1 GHz IEC 61000-4-3 || 3 V/m 1.4 GHz...2 GHz IEC 61000-4-3 || 1 V/m 2 GHz...3 GHz IEC 61000-4-3
- Storage Altitude
- 0-3000 m
- Pollution Degree
- 2
- Shock Resistance
- 15 gn 11 ms
- Ambient Air Temperature For Storage
- -40-85 °C
- Ip Degree Of Protection
- IP20
- Resistance To Fast Transients
- 2 kV IEC 61000-4-4 power lines) || 1 kV IEC 61000-4-4 Ethernet line) || 1 kV IEC 61000-4-4 serial link) || 1 kV IEC 61000-4-4 input) || 1 kV IEC 61000-4-4 transistor output)
- Electromagnetic Emission
- conducted emissions 120...69 dBµV/m QP power lines)10-150 kHz IEC 55011 || conducted emissions 63 dBμV/m QP power lines)1.5-30 MHz IEC 55011 || radiated emissions 40 dBµV/m30-230 kHz IEC 55011 || conducted emissions 79...63 dBμV/m QP power lines)150-1500 kHz IEC 55011 || radiated emissions230-1000 MHz IEC 55011
Resistance To Conducted Disturbances10 V 0.15...80 MHz IEC 61000-4-4 || 3 V 0.1...80 MHz || 10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz)
Immunity To Microbreaks0.01 ms
StandardsUL 61010-1 || UL 61010-2-201 || CSA C22.2 No 61010-1 || CSA C22.2 No 61010-2-201 || CSA C22.2 No 213 || ANSI/ISA 12-12-01 || IEC 61131-2
Ambient Air Temperature For Operation-20-60 °C horizontal installation) || -20-50 °C vertical installation) || -20-45 °C flat mounting)
Vibration Resistance3.5 mm 2-8.4 Hz symmetrical rail || 1 gn 8.4-200 Hz symmetrical rail || 3.5 mm 2-8.4 Hz panel mounting || 1 gn 8.4-200 Hz panel mounting
Relative Humidity10-95 %, without condensation in operation) || 10-95 %, without condensation in storage)
Resistance To Electrostatic Discharge4 kV on contact IEC 61000-4-2 || 8 kV on air IEC 61000-4-2
Operating Altitude0...2000 m
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1904006EN
- Pvc Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
- Circularity Profile
- ENVEOLI1904006EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
