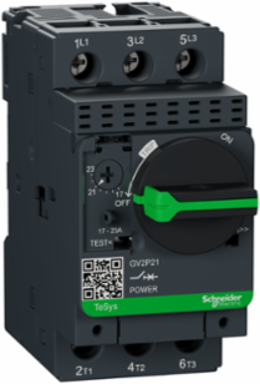

Schneider Electric GV2P21 TeSys Deca Motor Circuit Breaker, 3P, 23A, Rotary Handle, Thermal-Magnetic
- MPN: GV2P21
- PPN: SCH-GV2P21
CAD
$246.32
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
TeSys GV motor circuit breaker, 3 poles (3P), 23A/690V, for 3-phase motor applications 9kW@400V. It provides a thermal-magnetic protection with a thermal setting range 17-23A, magnetic tripping at 13xIn, high breaking capacity Icu 50kA@400V. Connection by screw clamp terminals. Start-stop control by rotary knob guaranteed for 100 000 cycles AC-3. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX), Green Premium compliant (RoHS/REACh).
Features
- The Schneider Electric GV2P21 is a 3-pole TeSys Deca Manual Motor Starter and Protector. It is a specialized device that combines the functions of a circuit breaker (short-circuit protection), a manual disconnect switch, and a thermal overload relay into one compact 45mm unit. It is engineered to protect 3-phase motors from overcurrent, phase loss, and short circuits in Canadian industrial environments.
- The GV2P21 features an adjustable thermal setting range of 17 to 23 Amps. Using the dial on the front, you can precisely calibrate the protection to match your motor's Full Load Amps (FLA) found on the nameplate. This precise adjustment prevents motor burnout from long-term overloads while allowing the motor to run at its rated capacity without nuisance tripping.
- Unlike the push-button "ME" versions, the "P" series utilizes a rotary handle. This handle provides a clear visual indication of the device status (ON, OFF, or TRIPPED). For safety compliance in Canada, the handle is padlockable in the "OFF" position, making it a critical component for Lockout/Tagout (LOTO) procedures during machine servicing.
- The GV2P21 is built for high-demand applications, offering a high breaking capacity of 50kA at 400/415V. This ensures that the device can safely interrupt even massive short-circuit currents without exploding or damaging the upstream electrical infrastructure, providing "Type 2" coordination for your facility.
- This motor protector includes inherent phase-failure sensitivity. If one phase of your 3-phase power drops out (a common cause of rapid motor failure), the GV2P21 will detect the imbalance and trip the circuit almost instantly. This protection is a standard requirement for maintaining the lifespan of expensive industrial motors.
Documentation & Downloads
Specifications
Additional
- Rated Current
- 23 A IEC 60947-4-1
- Magnetic Tripping Current
- 327 A
- Motor Power
- 9 kW at 400/415 V AC
- Rated Operational Voltage
- 690 V AC 50/60 Hz IEC 60947-2
- Rated Insulation Voltage
- 690 V AC 50/60 Hz IEC 60947-2
- Power Dissipation Per Pole
- 2.5 W
- Control Type
- Rotary handle
- Electrical Durability
- 100000 cycles AC-3 415 V In IEC 60947-4-1
- Height
- 89 mm (3.50 in)
- Tightening Torque
- 1.7 N.m (15.05 lbf.in) screw clamp terminal
- Fixing Mode
- 35 mm symmetrical DIN rail clipped or panel screwed with 2 x M4 screws
- IP Degree of Protection
- IP20 IEC 60529
- Storage Ambient Temperature Range
- -40 to 80 °C (-40 to 176 °F)
- Operating Altitude
- 2000 m (6562 ft)
- Utilisation Category
- category A IEC 60947-2; AC-3, AC-3e IEC 60947-4-1
- Network Frequency
- 50/60 Hz IEC 60947-4-1
- Rated Duty
- continuous IEC 60947-4-1
- Product Certifications
- UL, CSA, CCC, EAC, ATEX, Marine, RoHS, REACh, CCC, UL, CSA, EAC, ATEX, LROS, BV, RINA, DNV-GL, UKCA
- Environmental Disclosure
- ENVPEP2211002
- European RoHS Directive
- Compliant with exemptions
- Climatic Withstand
- IACS E10
- Circularity Profile
- ENVEOLI2211002
- Range
- TeSys Deca
- Warranty
- 18 months
Thermal Protection Adjustment Range17-23 A IEC 60947-4-1
Breaking Capacity50 kA at 400/415 V AC IEC 60947-2
Poles3P
Conventional Free Air Thermal Current23 A IEC 60947-4-1
Rated Impulse Withstand Voltage6 kV IEC 60947-2
Phase Failure SensitivityYes IEC 60947-4-1
Mechanical Durability100000 cycles
Width45 mm (1.77 in)
Depth97 mm (3.82 in)
Connection TypeScrew clamp terminals
IK Degree of ProtectionIK04
Operating Ambient Temperature Range-20 to 60 °C (-4 to 140 °F)
Fire Resistance960 °C IEC 60695-2-11
Suitability for IsolationYes IEC 60947-1 §7-1-6
Network TypeAC
Trip Unit Technologythermal-magnetic
Device Applicationmotor protection
ColorDark grey
China RoHS RegulationOut of China RoHS scope
REACH RegulationContains SVHC above threshold
Mechanical RobustnessShocks 30 Gn for 11 ms; vibrations 5 Gn 5-150 Hz
Device Short NameGV2P
Product Or Component TypeMotor circuit breaker
