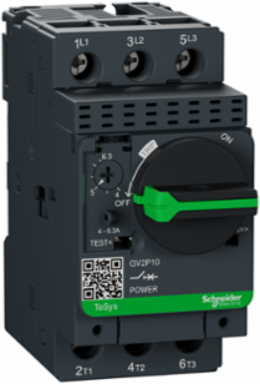

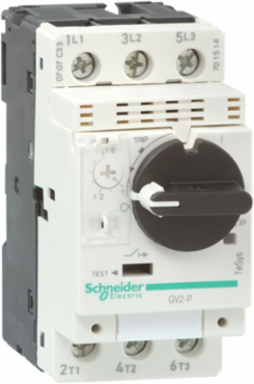

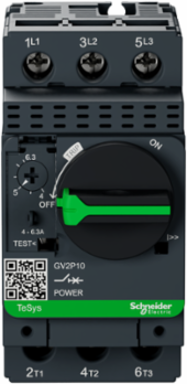

Schneider Electric GV2P10 TeSys Deca Motor Circuit Breaker 3P 4-6.3A Thermal-Magnetic
- MPN: GV2P10
- PPN: SCH-GV2P10
CAD
$187.15
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
TeSys GV motor circuit breaker, 3 poles (3P), 6.3A/690V, for 3-phase motor applications 2.2kW@400V. It provides a thermal-magnetic protection with a thermal setting range 4-6.3A, magnetic tripping at 13xIn, high breaking capacity Icu 100kA@400V. Connection by screw clamp terminals. Start-stop control by rotary knob guaranteed for 100 000 cycles AC-3. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX), Green Premium compliant (RoHS/REACh).
Features
- The Schneider GV2P10 is a TeSys Deca manual motor starter that features a rotary handle instead of push-buttons. This rotary design provides a clearer visual indication of the "Tripped" status and offers a higher breaking capacity, making it the preferred choice for high-specification industrial control panels.
- Featuring a precise thermal setting range of 4.0 to 6.3 Amps, this starter allows you to match the protection exactly to your motor's nameplate Full Load Amps (FLA). The "Class 10" trip characteristic ensures that your motor is protected against overloads and phase loss while preventing nuisance trips during the initial startup surge.
- The GV2P series is engineered for superior performance, offering a breaking capacity (Icu) of 100kA at 400/415V. This extreme level of short-circuit protection ensures the starter can safely clear high-energy faults, protecting your personnel and downstream equipment from catastrophic damage.
- To comply with strict safety protocols, the rotary handle is padlockable in the "OFF" position. This allows for secure lockout-tagout procedures, ensuring that the motor cannot be accidentally energized while maintenance staff are working on the machinery.
- With a standard 45mm width, the GV2P10 packs a 3-pole circuit breaker and an adjustable overload relay into a single, slim module. It snaps directly onto 35mm DIN rails, drastically reducing the footprint of your motor control center and simplifying the internal layout of your enclosure.
Documentation & Downloads
Specifications
Additional
- Rated Operational Voltage
- 690 V AC 50/60 Hz IEC 60947-2
- Rated Current
- 6.3 A IEC 60947-4-1
- Magnetic Tripping Current
- 78 A
- Poles
- 3P
- Rated Impulse Withstand Voltage
- 6 kV IEC 60947-2
- Mechanical Durability
- 100000 cycles
- Width
- 45 mm (1.77 in)
- Depth
- 97 mm (3.82 in)
- Control Type
- Rotary handle
- IK Degree of Protection
- IK04
- Ambient Air Temperature for Storage
- -40 to 80 °C (-40 to 176 °F)
- Phase Failure Sensitivity
- Yes IEC 60947-4-1
- Rated Duty
- Continuous IEC 60947-4-1
- Operating Altitude
- Up to 2000 m
- Product Or Component Type
- Motor circuit breaker
- Color
- Dark grey
- Product Certifications
- CCC, UL, CSA, EAC, ATEX, Lloyds Register, BV, RINA, DNV-GL, UKCA
- China RoHS Regulation
- Out of China RoHS scope
Thermal Protection Adjustment Range4-6.3 A IEC 60947-4-1
Breaking Capacity100 kA Icu 230/240 V to 690 V AC 50/60 Hz IEC 60947-2
Motor Power2.2 kW at 400/415 V AC 50/60 Hz
Rated Insulation Voltage690 V AC 50/60 Hz IEC 60947-2
Operating Frequency50/60 Hz IEC 60947-4-1
Electrical Durability100000 cycles AC-3/AC-3e 415 V IEC 60947-4-1
Height89 mm (3.50 in)
Connection TypeScrew clamp terminals, 1.7 N·m tightening torque
IP Degree of ProtectionIP20 IEC 60529
Ambient Air Temperature for Operation-20 to 60 °C (-4 to 140 °F)
Fire Resistance960 °C IEC 60695-2-11
Suitability For IsolationYes IEC 60947-1 § 7-1-6
Mechanical RobustnessShocks 30 Gn for 11 ms, vibrations 5 Gn 5-150 Hz
RangeTeSys Deca
Product NameTeSys GV2 / TeSys Deca
Country of OriginThailand
EU RoHS DirectiveCompliant with exemptions
REACHContains Substances of Very High Concern above threshold
