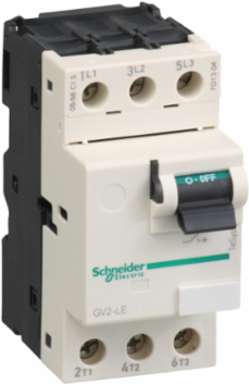

Schneider Electric GV2LE08 TeSys Deca 3P Motor Circuit Breaker 4A Magnetic Toggle Control
Schneider Electric GV2LE08 TeSys Deca 3P Motor Circuit Breaker 4A Magnetic Toggle Control
- MPN: GV2LE08
- PPN: SCH-GV2LE08
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$230.95/ EA
Description
TeSys GV motor circuit breaker, 3 poles (3P), 4A/690V, for 3-phase motor applications 1.1-1.5kW@400V. It provides a magnetic protection with a tripping level at 13xIn, high breaking capacity Icu 100kA@400V. Connection by screw clamp terminals. Start-stop control by toggle guaranteed for 100 000 cycles AC-3. To complete motor protection, use in association with a thermal overload relay LRD08 (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
Specifications
Environment
- Product Certifications
- CCC || UL || CSA || EAC || LROS (Lloyds register of shipping) || BV || RINA || DNV-GL || UKCA || IECEE CB Scheme
- Mechanical Robustness
- shocks 30 Gn for 11 ms || vibrations 5 Gn, 5...150 Hz
- Standards
- EN/IEC 60947-4-1 || UL 60947-4-1 || CSA C22.2 No 60947-4-1
- Ambient Air Temperature For Storage
- -40-80 °C
- Operating Altitude
- 2000 m
Ik Degree Of ProtectionIK04
Ambient Air Temperature For Operation-20-60 °C
Climatic WithstandIACS E10
Ip Degree Of ProtectionIP20 IEC 60529
Fire Resistance960 °C IEC 60695-2-11
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP121004
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Eu Rohs Directive
- Compliant with Exemptions
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI121004
Complementary
- [In] Rated Current
- 4 A
- Height
- 89 mm
- Network Type
- AC
- [Ith] Conventional Free Air Thermal Current
- 4 A IEC 60947-4-1
- Utilisation Category
- category A IEC 60947-2 || AC-3 IEC 60947-4-1 || AC-3e IEC 60947-4-1
- Fixing Mode
- 35 mm symmetrical DIN rail clipped || panel screwed with adaptor plate)
- [Ics] Rated Service Short-Circuit Breaking Capacity
- 100 % 230/240 V AC 50/60 Hz IEC 60947-2 || 100 % 400/415 V AC 50/60 Hz IEC 60947-2 || 100 % 440 V AC 50/60 Hz IEC 60947-2 || 100 % 500 V AC 50/60 Hz IEC 60947-2 || 75 % 690 V AC 50/60 Hz IEC 60947-2
- Power Dissipation Per Pole
- 1.8 W
- [Ui] Rated Insulation Voltage
- 690 V AC 50/60 Hz IEC 60947-2
- Suitability For Isolation
- yes IEC 60947-1 § 7-1-6
- Mechanical Durability
- 100000 cycles
- Colour
- dark grey
- Depth
- 78.5 mm
[Ue] Rated Operational Voltage690 V AC 50/60 Hz IEC 60947-2
Rated Dutycontinuous IEC 60947-4-1
Magnetic Tripping Current51-51 A
Motor Power Kw1.5-1.5 kW 400/415 V AC 50/60 Hz || 1.5-1.5 kW 500 V AC 50/60 Hz || 2.2-2.2 kW 500 V AC 50/60 Hz || 3-3 kW 690 V AC 50/60 Hz
Net Weight0.33 kg
[Uimp] Rated Impulse Withstand Voltage6 kV IEC 60947-2
Control Typetoggle
Electrical Durability100000 cycles AC-3 415 V In || 100000 cycles AC-3e 415 V In
Breaking Capacity100 kA Icu 230/240 V AC 50/60 Hz IEC 60947-2 || 100 kA Icu 400/415 V AC 50/60 Hz IEC 60947-2 || 100 kA Icu 440 V AC 50/60 Hz IEC 60947-2 || 100 kA Icu 500 V AC 50/60 Hz IEC 60947-2 || 3 kA Icu 690 V AC 50/60 Hz IEC 60947-2
Tightening Torque1.7 N.m screw clamp terminal
Poles Description3P
Width45 mm
Network Frequency50/60 Hz IEC 60947-2
Specifications
- Product Or Component Type
- motor circuit breaker
- Range
- TeSys Deca
- Device Short Name
- GV2LE
Product NameTeSys GV2
Device Applicationmotor protection
Trip Unit Technologymagnetic
