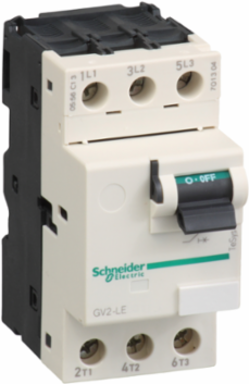

Schneider Electric GV2LE10 TeSys Deca Motor Circuit Breaker 3P, 6.3A, 690V, Magnetic Control
- MPN: GV2LE10
- PPN: SCH-GV2LE10
CAD
$244.82
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
TeSys GV motor circuit breaker, 3 poles (3P), 6.3A/690V, for 3-phase motor applications 2.2kW@400V. It provides a magnetic protection with a tripping level at 13xIn, high breaking capacity Icu 100kA@400V. Connection by screw clamp terminals. Start-stop control by toggle guaranteed for 100 000 cycles AC-3. To complete motor protection, use in association with a thermal overload relay LRD010 (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, United Kingdom
Depth78.5 mm
Physical Attributes
- Color
- dark grey
Complementary Attributes
- Rated Current
- 6.3 A
- Maximum Operating Rate
- 40 cyc/h
Line Rated Current6.3 A
Rated Dutyuninterrupted IEC 60947-4-1
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SC
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Electrical Durability
- 100000 cycles AC-3 415 V In, 100000 cycles AC-3e 415 V In
- Mounting Position
- horizontal, vertical
- Utilisation Category
- category A IEC 60947-2AC-3 IEC 60947-4-1, AC-3e IEC 60947-4-1
- Certificate Agency
- CCC, UL, CSA, EAC, LROS (Lloyds register of shipping), BV, RINA, DNV-GL, UKCA, IECEE CB Scheme
- Connections - Terminals
- power circuit: screw clamp terminal 2 cable(s) 1-6 mm² - solid, power circuit: screw clamp terminal 2 cable(s) 1.5-6 mm² - flexible without cable end, power circuit: screw clamp terminal 2 cable(s) 1-4 mm² - flexible with cable end
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.5673109662856276, 0.6 kg CO2 eq.
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 2 kg CO2 eq., 2.048894492826965
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Serviceability
- No
- Field Service Division
- PPIBS
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI121004
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 2538
- China Rohs In Scope
- No
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Compatibility Code
- GV2LE
- Device Application
- motor protection
- Fire Resistance
- 960 °C IEC 60695-2-11
- Mechanical Durability
- 100000 cycles
- Motor Power Kw
- 2.2-2.2 kW 400/415 V AC 50/60 Hz3-3 kW 500 V AC 50/60 Hz4-4 kW 690 V AC 50/60 Hz
- Network Type
- AC
- Power Dissipation Per Pole
- 1.8 W
- Product Name
- TeSys GV2
- Range
- TeSys Deca
- Software Version
- v6.2.4
- Sustainable Packaging
- Yes
- Total Lifecycle Carbon Footprint
- 12 kg CO2 eq.
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Database Version
- 2024-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- Protect the installation from overloads and short circuits in a circuit with rated voltage Ue, rated current In, with Np poles, a rated breaking capacity Icu, and, if applicable, the specific specifications, in the Industrial application area, according to the appropriate use scenario, and during the reference service life of the product of 20 years.
- Functional-unit Unit
- unit
- Energy Consumption On Product Lifetime In Kwh
- 98.55
- Energy Model - Installation [A5]
- No energy used
- Energy Model - End Of Life [C1-c4]
- Global, European and French datasets are used.
- Height Nominal
- 89 mm
- [Ith] Conventional Free Air Thermal Current
- 6.3 A IEC 60947-2
- [Ui] Rated Insulation Voltage
- 690 V AC 50/60 Hz IEC 60947-2
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536200040
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician
Market SegmentationCommercial, Industrial
Fixing Mode35 mm symmetrical DIN rail clipped, panel screwed with adaptor plate)
Range Of ProductTeSys GV2, TeSys Deca
Rated Current 16.3 A
[Ics] Rated Service Short-circuit Breaking Capacity100 % 230/240 V AC 50/60 Hz IEC 60947-2, 100 % 400/415 V AC 50/60 Hz IEC 60947-2, 100 % 440 V AC 50/60 Hz IEC 60947-2, 100 % 500 V AC 50/60 Hz IEC 60947-275 % 690 V AC 50/60 Hz IEC 60947-2
Carbon Footprint Of The Distribution Phase [A4]0.10317828056841415, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.1 kg CO2 eq., 0.05160333539990024
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]9 kg CO2 eq., 8.86395212531129
Local Publishable Date2026-02-25
Stocking FlagY
Device TypeLV equipment - Low voltage circuit breaker
TraceabilityNo
Average Life Duration15 year(s)
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label3
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Control Typetoggle
Device Short NameGV2LE
Magnetic Tripping Current91-91 A
Mechanical Robustnessshocks 30 Gn for 11 msvibrations 5 Gn, 5...150 Hz
Network Frequency50/60 Hz IEC 60947-2
Number Of Poles3P
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Product Or Component Typemotor circuit breaker
ReturnabilityNo
Suitability For Isolationyes IEC 60947-1
Tightening Torque1.7 N.m screw clamp terminal
Trip Unit Technologymagnetic
Pep CodeENVPEP1210004EN
Pep Verification Date2026-03-30
Psr VersionPSR-0005-ed3-2023 06 06
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; France, FR
Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; France, FR
Recyclability Potential In %49
Width Nominal45 mm
[Ue] Rated Operational Voltage690 V AC 50/60 Hz IEC 60947-2
[Uimp] Rated Impulse Withstand Voltage6 kV IEC 60947-2
Package Weight(Lbs)271.000 g
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Take Back
- No
- Mercury Free
- Yes
- Ambient Air Temperature For Operation
- -20-60 °C-20-60 °C
- Climatic Withstand
- IACS E10
- Eu Rohs Directive
- Compliant By Exemption
- Operating Altitude
- <= 6561.68 ft (2000 m)<= 6561.68 ft (2000 m)
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP1210004EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Storage-40-80 °C, -40-80 °C
Recycled Metal Content At Cr Level0 %
Carbon Footprint11.634939200392196
Circularity ProfileENVEOLI121004
Environmental DisclosureENVPEP1210004EN
Ip Degree Of ProtectionIP20 IEC 60529
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2026-03-30
Psr VersionPSR-0005-ed3-2023 06 06
General Attributes
- Range Of Product
- TeSys GV2, TeSys Deca
Product Or Component Typemotor circuit breaker
ETIM
- ETIM 8
- EC000074
ETIM 9EC000074
Contractual Warranty Attributes
- Warranty Period
- 18 months
