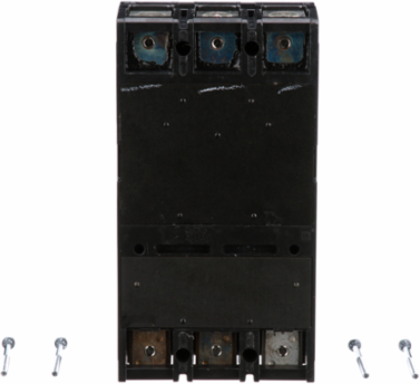

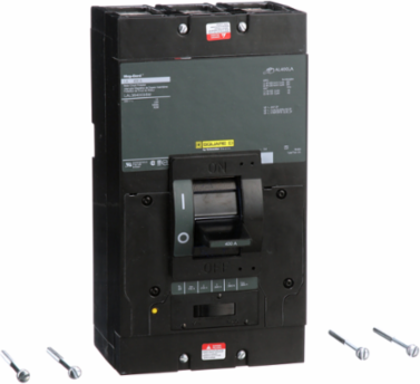

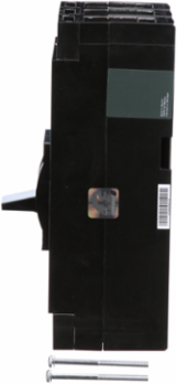

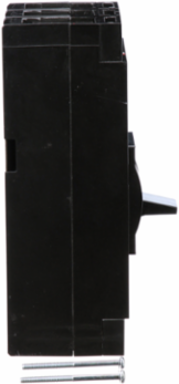

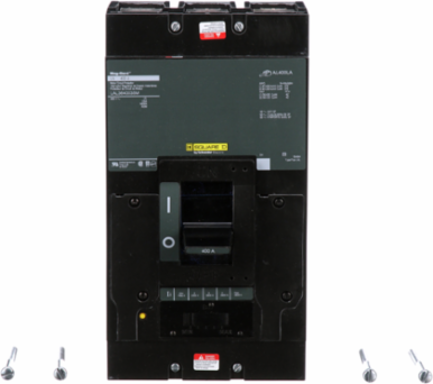

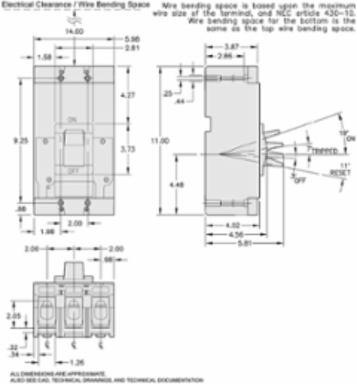

Square D LAL3640035M Motor Circuit Protector 400A, 3 Pole, Thermal-Magnetic, 6 Inch Width, UL Listed
- MPN: LAL3640035M
- UPC: 785901650492
- PPN: SCH-LAL3640035M
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Square D LA magnetic only molded case circuit breakers (Mag-Gard) provide motor circuit protection. They are designed as disconnect devices for use in combination with motor starts. They are magnetic detection so provide short circuit protection only. This Square D LA Mag-Gard is 3 pole unit mount, 400A and 600VAC, with lugs. Mag-Gard circuit breakers have an adjustable amperage pick up so can be set to open instantaneously to coordinate with the motor.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
Depth5.84 in
Complementary Attributes
- Line Rated Current
- 400 A
Important Information Attributes
- Persona Type Ids
- LC, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Electrical Connection
- lugs, load, lugs, line
- Certificate Agency
- IEC, UL Listed, CSA
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 12 kg CO2 eq., 11.67639778652332
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 50 kg CO2 eq., 49.671357924070975
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Serviceability
- No
- Field Service Division
- PPIBS
- Weee Scope
- In
- Scope Perimeter
- Outside of Europe
- End Of Life Doc Ref
- ENVEOLI2206029_V2
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 1906
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Energy Efficiency Optimized
- False
- Magnetic Tripping Current
- 3500-3500 A
- Number Of Poles
- 3P
- Product Or Component Type
- Motor Circuit Protector
- Software Version
- v6.2.5-6
- Terminal Identifier
- AL400LA
- Trip Unit Technology
- thermal-magnetic
- Database Version
- 2024-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional-unit Description
- Protect the installation from overloads and short circuits in a circuit with rated voltage Ue, rated current In, with Np poles, a rated breaking capacity Icu, and, if applicable, the specific specifications, in the Industrial application area, according to the appropriate use scenario, and during the reference service life of the product of 20 years.
- Functional-unit Unit
- unit
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Low voltage; 2020; United States, US
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2020; United States, US
- Recyclability Potential, In %
- 58
- Width Nominal
- 6 in
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
Persona Type NamesContractor, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Tightening Torque13-13 N.m 42-304 mm² (AWG 1...600 kcmil), 13-13 N.m 42-127 mm² (AWG 1...250 kcmil)
Carbon Footprint Of The Distribution Phase [A4]2.228383327123949, 2 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]2.1496401101385745, 2 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]739 kg CO2 eq., 739.3949682892573
Local Publishable Date2025-11-18
Stocking FlagN
Device TypeLV equipment - Low voltage circuit breaker
TraceabilityYes
Average Life Duration15 year(s)
Weee Product Category4
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label7
Without Single Use PlasticYes
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Magnetic Hold Current1750 A
Mounting Modeunit mount
Product AvailabilityStock - Normally stocked in distribution facility
ReturnabilityYes
Sustainable PackagingYes
Total Lifecycle Carbon Footprint805 kg CO2 eq.
Pep CodeENVPEP2206029EN
Pep Verification Date2028-05-09
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y20
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
Height Nominal11 in
Halogen-free StatusHalogen free plastic parts product
Package Weight(Lbs)7.280 kg
Warranty (In Months)18
Environment Attributes Main
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI2206029_V2
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2028-05-09
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
Halogene PerformanceHalogen free plastic parts product
China Rohs RegulationX
Carbon Footprint805.1207474371142
Environmental DisclosureENVPEP2206029EN
Halogen Content PerformanceHalogen free plastic parts product
Packaging Without Single Use PlasticYes
Pep CodeENVPEP2206029EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Product Or Component Type
- Motor Circuit Protector
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
