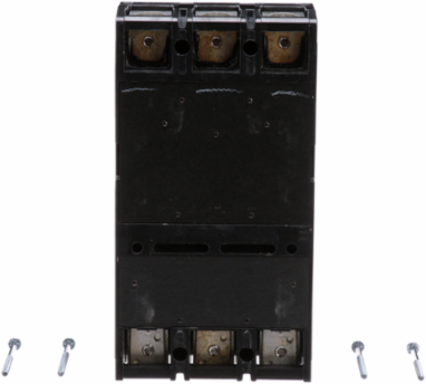

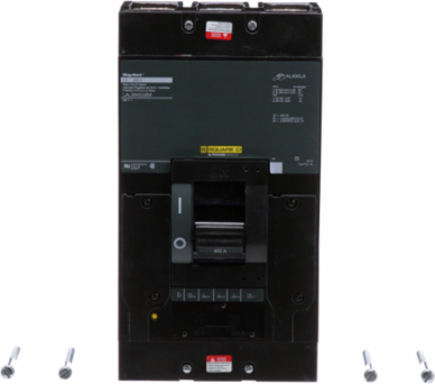

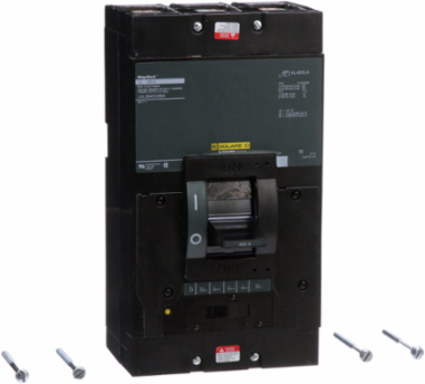

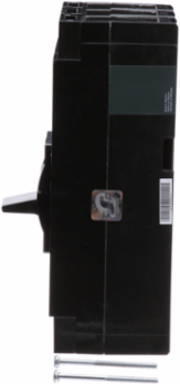

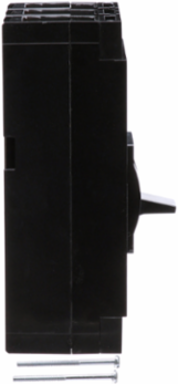

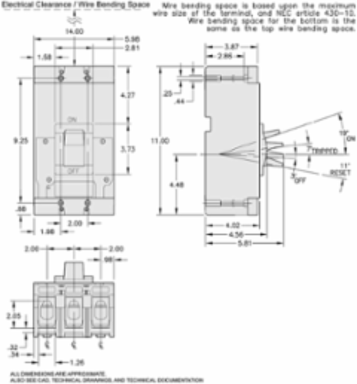

Square D LAL3640036M Motor Circuit Protector 400A 3 Pole 600VAC Thermal Magnetic

MPN: LAL3640036M
UPC: 785901650508
PPN: SCH-LAL3640036M
UNSPSC: 39121601

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Square D LA magnetic only molded case circuit breakers (Mag-Gard) provide motor circuit protection. They are designed as disconnect devices for use in combination with motor starts. They are magnetic detection so provide short circuit protection only. This Square D LA Mag-Gard is 3 pole unit mount, 400A and 600VAC, with lugs. Mag-Gard circuit breakers have an adjustable amperage pick up so can be set to open instantaneously to coordinate with the motor.

Features

Magnetic trip unit to offer short circuit protection for motors
Adjustable amperage pick up setting
Allows coordinating pick up to motor starter
Accepts the same lugs and accessories as equivalent LA circuit breakers
The LA-frame motor circuit protector is compliant with standards IEC 60947-2 and UL 508/CSA 22.2 N°14, UL 489.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Mexico
Depth	5.84 in

Weight	7711 g

Complementary Attributes

Line Rated Current	400 A

Important Information Attributes

Persona Type Ids	LC, OM8, PB
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Electrical Connection	lugs, load, lugs, line
Certificate Agency	UL Listed, CSA, IEC
Carbon Footprint Of The End Of Life Phase C1 To C4	12 kg CO2 eq., 11.67639778652332
Carbon Footprint Of The Manufacturing Phase A1 To A3	50 kg CO2 eq., 49.671357924070975
Local Data Status	Publishable
Return Indicator	Y
Serviceability	No
Field Service Division	PPIBS
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2206029_V2
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	1906
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Energy Efficiency Optimized	False
Magnetic Tripping Current	4000-4000 A
Number Of Poles	3P
Product Or Component Type	Motor Circuit Protector
Software Version	v6.2.5-6
Terminal Identifier	AL400LA
Trip Unit Technology	thermal-magnetic
Database Version	2024-01
Height Nominal	11 in
Nbr. Of Units In Pkg.	1
Halogen Free Status	Halogen free plastic parts product
Functional Unit Description	Protect the installation from overloads and short circuits in a circuit with rated voltage Ue, rated current In, with Np poles, a rated breaking capacity Icu, and, if applicable, the specific specifications, in the Industrial application area, according to the appropriate use scenario, and during the reference service life of the product of 20 years.
Functional Unit Unit	unit
Recyclability Potential In %	58

Persona Type Names	Contractor, OEM - Control Panelbuilder, Panel Builder
Market Segmentation	Commercial, Industrial
Tightening Torque	13-13 N.m 42-304 mm² (1 AWG...600 kcmil), 13-13 N.m 42-127 mm² (1 AWG...250 kcmil)
Carbon Footprint Of The Distribution Phase A4	2.228383327123949, 2 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	2.1496401101385745, 2 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6	739 kg CO2 eq., 739.3949682892573
Local Publishable Date	2025-11-18
Device Type	LV equipment - Low voltage circuit breaker
Traceability	Yes
Average Life Duration	15 year(s)
Weee Product Category	4
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	7
Without Single Use Plastic	Yes
Tier Id	2
Function Option Id	STANDARD
Product Kit Identifier	N
Magnetic Hold Current	2000 A
Mounting Mode	unit mount
Product Availability	Non-Stock - Not normally stocked in distribution facility
Returnability	Yes
Sustainable Packaging	Yes
Total Lifecycle Carbon Footprint	805 kg CO2 eq.
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Data Source	extrapolated product
Width Nominal	6 in
Customs Code	8536200020
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	20

Environment Attributes Main

Take Back	No
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Circularity Profile	ENVEOLI2206029_V2
Eu Rohs Directive	Compliant By Exemption
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2028-05-10
Psr Version	PSR-0005-ed3.1-EN-2023 12 08

Halogene Performance	Halogen free plastic parts product
China Rohs Regulation	X
Carbon Footprint	805.1207474371142
Environmental Disclosure	ENVPEP2206029EN
Halogen Content Performance	Halogen free plastic parts product
Packaging Without Single Use Plastic	Yes
Pep Code	ENVPEP2206029EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent external review
