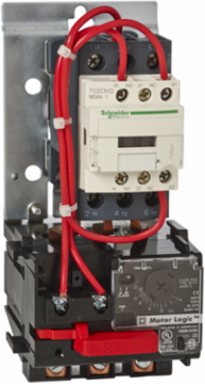

Schneider Electric T36AN13G7 Motor Starter, TeSys NEMA, nonreversing, Size 00, 9A, 3 pole, HP rated, Motor Logic SSOLR, 120 VAC 60 Hz coil, open

Motor Starter, TeSys NEMA, nonreversing, Size 00, 9A, 3 pole, HP rated, Motor Logic SSOLR, 120 VAC 60 Hz coil, open
  • MPN: T36AN13G7
  • UPC: 785901955269
  • PPN: SCH-T36AN13G7

Spec sheet

Loading compare button...

  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below
    • Available to Order

    Company Stock:

    0

    Lead times may vary. For an accurate estimate please contact us.

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    CAD$728.48/ EA

    Description

    TeSys N contactors and starters conform to NEMA ICS2 standards. The NEMA size is printed directly on the face of the contactor. The 3 pole NEMA size 00 motor starter has a 9 amperage continuous current rating. It also has ratings of 1.5 HP at 200 to 230 Vac and 2 HP at 460 and 575 VAC poly phase. This motor starter has a Motor Logic solid state overload relay with a Class 10/20 rating. The overload is adjustable from 3 to 9 amperes. The starter has a 120 VAC replaceable coil with common control. Starter has 1 normally open and 1 normally closed auxiliary contact. This starter is not in an enclosure. Motor starter is UL listed and CSA Certified.

    Specifications

    Offer Sustainability

    China Rohs Regulation
    Product out of China RoHS scope. Substance declaration for your information
    Mercury Free
    Yes
    Reach Regulation
    Free of Substances of Very High Concern above the threshold
    Rohs Exemption InformationYes
    Eu Rohs DirectiveCompliant with Exemptions
    Reach Free Of SvhcYes

    Specifications

    Product Certifications
    UL listed || CSA
    Thermal Overload Type
    solid state Motor Logic class 10/20 3-9 A
    Auxiliary Contact Composition
    1 NO + 1 NC
    Range Of Product
    TeSys N
    Poles Description
    3P
    [In] Rated Current
    9 A
    Control Circuit
    common control circuit
    Network Number Of Phases
    3 phases
    Motor Starter Typenon reversing
    [Uc] Control Circuit Voltage120 V AC
    Nema Degree Of Protectionnot rated (open device)
    Nema Size00
    Rated Power In Hp1.5 HP 200 V AC || 1.5 HP 230 V AC || 2 HP 460 V AC || 2 HP 575 V AC
    Electrical Connectionscrew clamp terminals
    Product Or Component Typestarter
    [Ue] Rated Operational Voltage600 V AC
