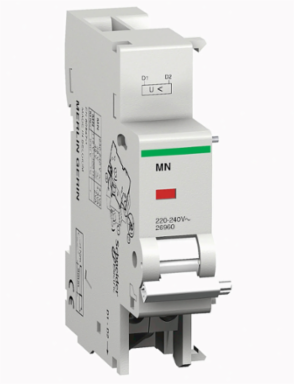

Schneider Electric M9A27107 Multi9 Undervoltage Release 120 V AC 24 V DC, 82.5 mm Height, 18 mm Width
- MPN: M9A27107
- PPN: SCH-M9A27107
CAD
$157.78
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This Multi9 MN electrical auxiliary is an undervoltage release device. It is dedicated to Multi9 GFP, C60 and C60H-DC. It prevents device closing again until its input voltage has been restored.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Belgium, France
Depth68 mm
Physical Attributes
- Wire Stripping Length
- 9 mm for bottom connection
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8
- Range Of Product
- GFP, C60BP, C60SP, C60BPR
- Connections - Terminals
- clamp terminal bottom) - 1 2.5-2.5 mm² AWG 14) - rigid, clamp terminal bottom) - 2 1.5-1.5 mm² AWG 16) - rigid
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.1 kg CO2 eq., 0.09348027282414043
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 0.3 kg CO2 eq., 0.3421632651676013
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 1
- Weee Product Category
- 5
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 1648
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Market Segmentation
- Commercial
- Comb Busbar And Distribution Block Compatibility
- top YES
- Device Short Name
- MN
- Local Signalling
- action indicator
- Mounting Support
- DIN rail
- Product Or Component Type
- undervoltage release
- Returnability
- Yes
- Sustainable Packaging
- No
- Total Lifecycle Carbon Footprint
- 1 kg CO2 eq.
- Control Circuit Voltage 4
- 120 V
- Pep Code
- ENVPEP2206015EN
- Pep Verification Date
- 2025-12-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 20
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Low voltage; 2020; India, IN
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2020; Europe, EU-27
- Recyclability Potential, In %
- 29
- Width Nominal
- 18 mm
- Nbr. Of Units In Pkg.
- 1
- Silicone-free
- No
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Certificate AgencyUR, PCT, UL
Carbon Footprint Of The Distribution Phase [A4]0.012598306150670095, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.01744019125357007, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]0.5 kg CO2 eq., 0.5311163929133567
Local Publishable Date2026-03-26
Stocking FlagY
Weee ScopeIn
Scope PerimeterAt least in Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label2
Without Single Use PlasticYes
Tier Id2
Function Option IdSTANDARD
Market Segmentation IdCOMMERCIAL
Product Kit IdentifierN
Control Typestandard
Energy Efficiency OptimizedFalse
Mounting Modefixed
Product AvailabilityStock - Normally stocked in distribution facility
RangeMulti9
Software Versionv6.2.5-6
Tightening Torque1-1 N.m bottom
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Control Circuit Voltage 4 Control Circuit Voltage120 V
Database Version2024-01
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent external review
Functional-unit DescriptionIndicate locally and remotely electrical protection device status for 20 years
Functional-unit Unitunit
Energy Consumption On Product Lifetime, In Kwh1.314
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
Height Nominal82.5 mm
[Uc] Control Circuit Voltage120 V AC 50/60 Hz
Package Weight(Lbs)76.000 g
Take-backNo
Environment Attributes Main
- Ambient Air Temperature For Operation
- -25-50 °C, -25-50 °C
- Take Back
- No
- China Rohs Regulation
- X
- Silicon Free
- No
- 9 Mm Pitches
- 2
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP2206015EN
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent external review
Ambient Air Temperature For Storage-40-85 °C, -40-85 °C
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Carbon Footprint0.9967984283093385
Environmental DisclosureENVPEP2206015EN
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2025-12-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Range Of Product
- GFP, C60BP, C60SP, C60BPR
Product Or Component Typeundervoltage release
ETIM
- ETIM 8
- EC001286
ETIM 9EC001286
