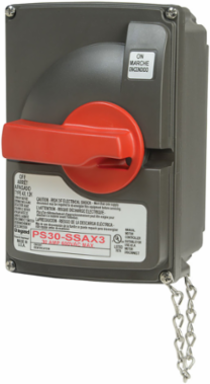

Pass & Seymour PS30SSAX3 Non-Fusible Safety Switch 30A with 3 Auxiliary Contacts, NEMA 4X Enclosure
- MPN: PS30SSAX3
- UPC: 785007070996
- PPN: P-S-PS30SSAX3
CAD
$689.48
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Non-Fusible Safety Switch 30A with 3 Auxiliary Contacts, NEMA 4X Enclosure
Features
- Compact design fits in most I-beams to provide mounting versatility, easy access, and reduced possibility of impact damage.
- Nonconductive, watertight, corrosion-, heat-, and impact-resistant thermoplastic enclosure ensures NEMA 4X and 12 ratings. Withstands the harshest industrial environments.
- Corrosion-resistant, stainless steel captive screws speed installation, minimize risk of lost parts, and withstand abuse.
- Adjustable mounting feet can be moved to center of unit for instant strut- or pole-mounting without special brackets or harnesses.
- Durable, stainless steel coverretaining chain makes installation and maintenance more convenient.
- Heavy-duty, ergonomic switch handle meets OSHA Lockout/Tagout provisions and provides plenty of grip for sure, easy operation.
- Black/red color coding and high-visibility ON/OFF markings clearly indicate status from a distance and at any visual angle.
- Switch entry into the enclosure is offset to the side and sealed to provide enhanced water resistance.
- Bottom and top wiring access options. No unnecessary openings to compromise water resistance.
- Top mount auxiliary contact enables additional control functions or signal lights.
- Certified for IP69 applications.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Finish
- Matte
- Product Line
- Pass & Seymour
- Features
- Durable
- Type
- Safety Switch
- Standard
- CSA Listed
- Connection
- Hardwired
- Enclosure Type
- NEMA 12
- Enclosure Type
- Plastic
- Contact Configuration
- 600V
- Features
- Corrosion Resistant
- Horsepower Rating
- 3 HP @ 120 VAC
- Horsepower Rating
- 10 HP @ 240 VAC
- Horsepower Rating
- 20 HP @ 480 VAC
- Horsepower Rating
- 20 HP @ 3ø 240 VAC
- Horsepower Rating
- 50 HP @ 3ø 600 VAC
- Horsepower Rating
- 40 HP @ 3øY 277/480 VAC
- Environmental Conditions
- Watertight per IEC 309-1
- Special Features
- Covers are Nonconductive, watertight, corrosion, heat and impact resistant
ColorGray
MaterialVALOX
Amperage30.0 A
StandardUL Lister
FeaturesWatertight
Wiring LocationTop
Voltage120 to 600 V
Enclosure TypeNEMA 4X
Wiring LocationBottom
Contact Rating30amp, 600vac
Application SectorIndustrial
Horsepower Rating10 HP @ 208 VAC
Horsepower Rating15 HP @ 277 VAC
Terminal Accommodation#14 AWG - #10 AWG
Horsepower Rating40 HP @ 3ø 480 VAC
Horsepower Rating20 HP @ 3øY 120/208 VAC
Horsepower Rating50 HP @ 3øY 347/600 VAC
Maximum Horsepower Rating50 HP @ 3øY 347/600 VAC
