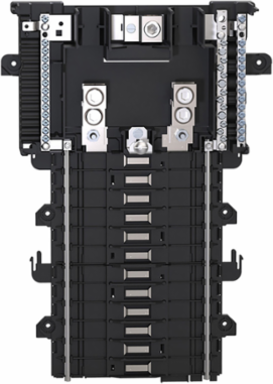

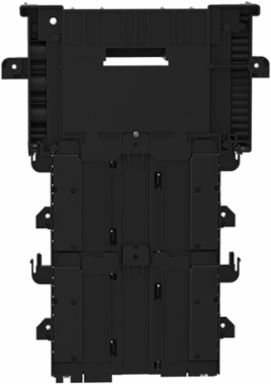

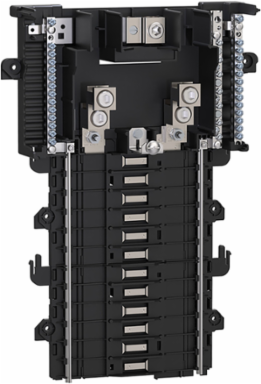

Square D QON124L200PDL QO Load Center Mounting Base, 200A, 24 Spaces, 1 Phase
Square D QON124L200PDL QO Load Center Mounting Base, 200A, 24 Spaces, 1 Phase
- MPN: QON124L200PDL
- UPC: 785901453383
- PPN: SCH-QON124L200PDL
- UNSPSC: 39121101
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$550.22/ EA
Description
QO Load Centers offer premium features like QO breakers, ground arc fault interrupters and surge arresters. QO load centers are designed for residential and industrial use to protect electrical systems, equipment and people. Systems are single or three phase and have indoor and outdoor versions. QO Load Centers enable the use of a full complement of accessories. Indoor enclosures are designed to be rotated 180 degrees to accommodate top or bottom service entrance feed. This QO OEM plug on mounting base is for 200A 120/240 VAC 1 phase 3 wire systems. This QO OEM mounting base has a 10 kA breaking capacity. This product is for 24 spaces. This mounting base will accept only QO plug on circuit breakers. This system is plug on neutral and has a double lugs. The QON mounting base is UL component recognized.
Features
- Provides superior performance and durability
- Straight in wiring saves wire, labor, and time
- Compatible with any Square D™ QO Circuit Breaker
- The fully distributed neutral bar allows for QO™ plug-on neutral circuit breakers in any space
- Complies with UL 67 listed, CSA, and IEC standards
Specifications
- Amperage
- 200 A
- Short Circuit Current
- 10 kA
- Phase
- 1 Phase
- Height
- 15.12 in
- Wire Size Compatibility
- AWG 4 to 250 kcmil aluminium/copper
- Mercury Free
- Yes
- ROHS Eur Status
- Compliant
- Country of Origin
- United States
Voltage120/240 V AC
Number of Spaces24
Width10.63 in
Depth2.6 in
MaterialMounting Base
Toxic Heavy Metal FreeYes
Reach ComplianceContains Substances of Very High Concern
