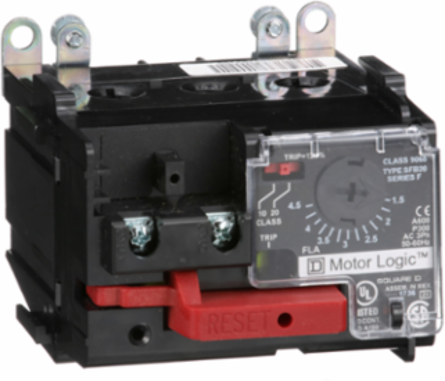

Square D 9065SFB20 Motor Logic Solid State Overload Relay NEMA Size 00 1.5A-4.5A 600V AC

Motor Logic overload relays can be standalone devices or can be used on Type S full voltage non-reversing and reversing starters and combination starters. Motor Logic relays are ambient insensitive and self-powered. Designed to protect 50/60 Hz, three phase AC motors from overloads, phase unbalance and phase loss conditions. This Motor Logic solid state overload relay is for use with NEMA size 00 three pole starters. This Motor Logic solid state overload relay has a full load current rating of 1.5A to 4.5A. Maximum voltage rating of 600 V. The trip free operation will help the motor from overheating. Switch selectable from Class 10 to Class 20 overload trip. The trip free operation will help the motor from overheating. The visible trip indicator and trip test function make trouble shooting much quicker. Electrical remote reset is available. This overload relay is 2.69 inches tall, 3.26 inches wide and 3.90 inches deep. Motor Logic SSOLR are UL listed and CSA certified.
