TeSys Deca Thermal Overload Relay 690V, 23-32A, Class 10A, 1NO+1NC
TeSys Deca Thermal Overload Relay 690V, 23-32A, Class 10A, 1NO+1NC
Schneider Electric

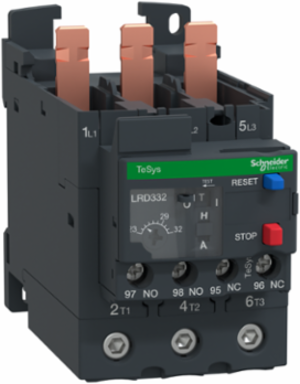

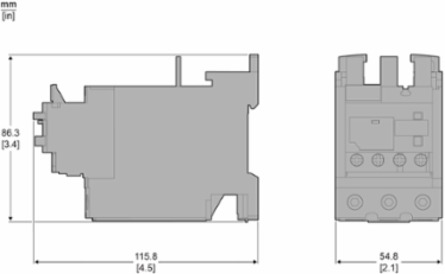

Schneider Electric LRD332 TeSys Deca Thermal Overload Relay 690V, 23-32A, Class 10A, 1NO+1NC

  • MPN: LRD332
  • PPN: SCH-LRD332
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $217.80

    / EA

    Available to Order

    Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

    Company Stock:

    0

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    Spec sheet

    Description

    TeSys LRD overload relays are designed to be used with TeSys D contactors to make a motor starter. This overload relay can be used with 9 amp through 38 amp TeSys D contactors. These differential thermal overload relays detect over currents in the lines to the motor. When an overcurrent is detected the overload relay working with the contactor will disconnect the power to the motor. This will minimize the damage to the motor windings. This overload relay has an adjustable trip current rating of 16 to 24 amperes. This trip current rating is calibrated per Class 10A. This overload relay uses EVERLINK termnals in place of the standard terminals.

    Features

    • Featuring an adjustable dial calibrated from 23 to 32 Amps, this relay allows industrial technicians to match the exact full-load amperage (FLA) listed on their motor's nameplate. This precise tuning eliminates frequent nuisance trips during intense startup cycles while ensuring rigorous, code-compliant thermal protection for mid-range pumps, fans, and compressors.
    • Engineered for seamless mechanical integration, the LRD332 mounts directly beneath Schneider Electric's TeSys Deca LC1D40A through LC1D65A 3-pole contactors. This plug-and-play connection eliminates the need for extra interconnecting wires or external mounting brackets, maximizing available rail space and dramatically reducing assembly time for commercial panel builders.
    • Built with advanced differential mechanism logic, the LRD332 automatically compensates for ambient temperature variations and rapidly detects an unbalance or total loss of a phase. By tripping the control circuit before winding heat can spike dangerously, it saves high-value three-phase motors from catastrophic insulation breakdown and failure.
    • Operating on a rigorous Class 10A trip curve, this relay guarantees a reliable circuit disconnect within 10 seconds of encountering a locked-rotor or 600% overload condition. This standardized timing provides optimal thermal protection for general-purpose applications like conveyors, fans, and pumps, ensuring code-compliant safety.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    Brazil, China, France, United States
    Depth123 mm

    Important Information Attributes

    Associated Fuse Rating
    4 A gG for signalling circuit, 4 A BS for signalling circuit
    Mechanical Robustness
    shocks15 Gn for 11 ms IEC 60068-2-7, vibrations4 gn IEC 60068-2-6
    Network Type
    AC, DC
    Product Name
    TeSys LRD, TeSys Deca
    Temperature Compensation
    -20-60 °C, -20-60 °C
    Certificate Agency
    IEC, UL, CSA, CCC, EAC, DNV-GL, RMRS, EU-RO MR, LROS (Lloyds register of shipping), ATEX INERIS, UKCA
    Connections - Terminals
    power circuit EverLink BTR screw connectors 1 1-35 mm² flexible with cable end, power circuit EverLink BTR screw connectors 1 1-35 mm² solid without cable endcontrol circuit screw clamp terminals 2 1-2.5 mm² flexible without cable end, control circuit screw clamp terminals 2 1-2.5 mm² flexible with cable end, control circuit screw clamp terminals 2 1-2.5 mm² solid without cable end, power circuit EverLink BTR screw connectors 1 1-35 mm² flexible without cable end
    Carbon Footprint Of The End-of-life Phase [C1 To C4]
    0.9 kg CO2 eq., 0.871212274
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]
    0.5 kg CO2 eq., 0.45216814
    Local Data Status
    Publishable
    Return Indicator
    Y
    Stock Policy
    2
    Serviceability
    No
    Weee Scope
    In
    Scope Perimeter
    At least in Europe
    End Of Life Doc Ref
    ENVEOLI0804005
    Reach Full Compliance Status Id
    NOT_CONTAINING_SVHC
    Rohs Eur In Scope
    Yes
    Rohs Eur Conformity Date
    1926
    China Rohs In Scope
    No
    With Recycled Cardboard
    Yes
    Product Contributes To Saved And Avoided Emissions
    No
    Compatibility Code
    LRD
    Dielectric Strength
    1.89 kV 50 Hz IEC 60947-1
    Network Frequency
    0...400 Hz
    Product Availability
    Stock - Normally stocked in distribution facility
    Relay Application
    motor protection
    Software Version
    v6.1
    Thermal Overload Class
    class 10A IEC 60947-4-1
    Total Lifecycle Carbon Footprint
    4 kg CO2 eq.
    Weee Label
    The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Pep Code
    ENVPEP0804005EN
    Pep Verification Date
    2024-06-01
    Psr Version
    PSR-0005-ed3.1-EN-2023 12 08
    Data Source
    extrapolated product
    Functional-unit Quantity
    1
    Reference Lifetime, In Y
    20
    Energy Model - Manufacturing [A1-a3]
    France, FR
    Energy Model - Use [B6]
    Electricity Mix; Low voltage; 2018; France, FR
    Recyclability Potential, In %
    27
    Width Nominal
    55 mm
    [Ue] Rated Operational Voltage
    690 V AC 0...400 Hz power circuit IEC 60947-4-1
    Nbr. Of Units In Pkg.
    1
    Take-back
    No
    Control TypeRed push-button stop, Blue push-button reset
    Mounting Supportplate, with specific accessories, rail, with specific accessories, under contactor
    Permissible Current0.95 A 380 V AC-15 signalling circuit, 0.06 A 440 V DC-13 signalling circuit
    RangeTeSys, TeSys Deca
    Tightening Torquecontrol circuit 1.7 N.m screw clamp terminals, power circuit 5 N.m EverLink BTR screw connectors
    [Ui] Rated Insulation Voltagepower circuit 600 V CSA, power circuit 600 V UL, power circuit 690 V IEC 60947-4-1
    Carbon Footprint Of The Distribution Phase [A4]0.532707701, 0.5 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]0.060948491, 0.1 kg CO2 eq.
    Carbon Footprint Of The Use Phase [B2, B3, B4, B6]2 kg CO2 eq., 1.896335784
    Local Publishable Date2026-03-26
    Stocking FlagN
    Device TypeRelay, Control & Measurement - Protection relay
    TraceabilityNo
    Weee Product Category5
    Eoli Availability DisplayYes
    Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
    Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant
    Rohs Eur Full Compliance StatusCompliant
    China Rohs Label1
    Without Single Use PlasticYes
    Product Kit IdentifierN
    Device Short NameLRD
    Flame RetardanceV1 conforming to UL 94
    Phase Failure Sensitivitytripping current 130 % of Ir on two phase, the last one at 0
    Product Or Component Typedifferential thermal overload relay
    ReturnabilityYes
    Sustainable PackagingYes
    Thermal Protection Adjustment Range23-32 A
    Tripping Threshold1.14 +/- 0.06 Ir IEC 60947-4-1
    R Thermal Protection Adj Range23-32 A
    Database Version2023-02
    Pcr VersionPCR-4-ed4-EN-2021 09 06
    Type Of Verification For The PepIndependent internal review
    Functional-unit DescriptionThe functional unit of the LRD365 is to detect overload currents in order to protect the load for 20 years.
    Functional-unit Unitunit
    Energy Consumption On Product Lifetime, In Kwh28.3824
    Energy Model - Installation [A5]Electricity Mix; Low voltage; 2018; France, FR
    Energy Model - End Of Life [C1-c4]Electricity Mix; Low voltage; 2018; France, FR
    Height Nominal123 mm
    [Ith] Conventional Free Air Thermal Current5 A signalling circuit
    [Uimp] Rated Impulse Withstand Voltage6 kV
    Package Weight(Lbs)393.000 g
    Warranty (In Months)18

    Environment Attributes Main

    China Rohs Regulation
    Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
    Ambient Air Temperature For Storage
    -60-70 °C, -60-70 °C
    Take Back
    No
    Recycled Metal Content At Cr Level
    0 %
    Mercury Free
    Yes
    Circularity Profile
    ENVEOLI0804005
    Environmental Disclosure
    ENVPEP0804005EN
    Ip Degree Of Protection
    IP20 conforming to IEC 60529
    Packaging Without Single Use Plastic
    Yes
    Reach Regulation
    Free of Substances of Very High Concern above the threshold
    Pep Verification Date
    2024-06-01
    Psr Version
    PSR-0005-ed3.1-EN-2023 12 08
    Ambient Air Temperature For Operation-20-60 °C without derating IEC 60947-4-1, -20-60 °C without derating IEC 60947-4-1, -20-60 °C without derating IEC 60947-4-1-20-60 °C without derating IEC 60947-4-1, -20-60 °C without derating IEC 60947-4-1, -20-60 °C without derating IEC 60947-4-1
    Product CompatibilityLC1D40A, LC1D65A, LC1D50A
    Reach Free ShvcYes
    Toxic Heavy Metal FreeYes
    Carbon Footprint3.81337239
    Climatic WithstandIACS E10
    Eu Rohs DirectiveCompliant
    Packaging Made With Recycled CardboardYes
    Reach Free Of SvhcYes
    Pep CodeENVPEP0804005EN
    Pcr VersionPCR-4-ed4-EN-2021 09 06
    Type Of Verification For The PepIndependent internal review

    General Attributes

    Product Or Component Type
    differential thermal overload relay

    ETIM

    ETIM 8
    EC000106
    ETIM 9EC000106

    Contractual Warranty Attributes

    Warranty Period
    18 months
    Warranty18 months
