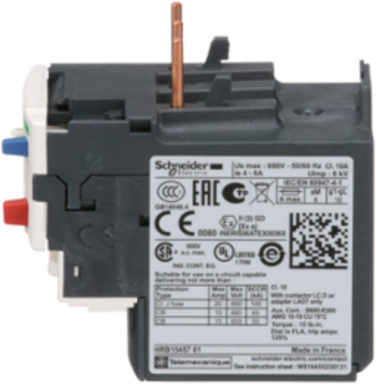

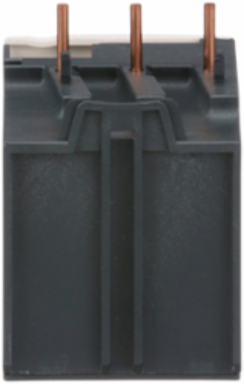

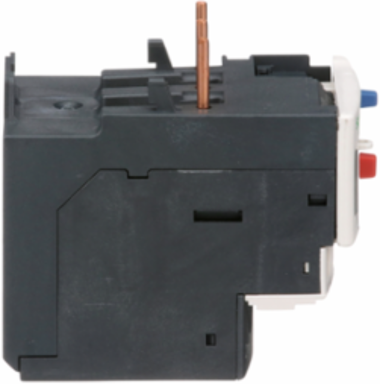

TeSys Deca Thermal Overload Relay, 690VAC, 4-6A, 3P, Class 10A
TeSys Deca Thermal Overload Relay, 690VAC, 4-6A, 3P, Class 10A
TeSys Deca Thermal Overload Relay, 690VAC, 4-6A, 3P, Class 10A
Schneider Electric

Schneider Electric LRD10 TeSys Deca Thermal Overload Relay, 690VAC, 4-6A, 3P, Class 10A

  • MPN: LRD10
  • PPN: SCH-LRD10
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $124.05

    / EA

    Available to Order

    Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    TeSys LRD overload relays are designed to be used with TeSys D contactors to make a motor starter. This overload relay can be used with 9 amp through 38 amp TeSys D contactors. These differential thermal overload relays detect over currents in the lines to the motor. When an overcurrent is detected the overload relay working with the contactor will disconnect the power to the motor. This will minimize the damage to the motor windings. This overload relay has an adjustable trip current rating of 4 to 6 amperes. This trip current rating is calibrated per Class 10A. Multi standards certified (IEC, UL, CSA, CCC, EAC, ATEX, Marine).

    Features

    • The LRD10 is a TeSys Deca differential thermal overload relay designed to protect AC motors against overloads and phase failures. It acts as a fail-safe by monitoring the current flowing to the motor and automatically tripping the associated contactor if the current exceeds the set limit for a specific duration, preventing motor burnout and costly equipment replacement.
    • Featuring a precise current adjustment dial ranging from 4 to 6 Amps, the LRD10 allows you to match the protection profile exactly to your motor's Full Load Amps (FLA). This level of customization ensures that the relay provides a tight safety margin, preventing nuisance trips during normal operation while reacting instantly to genuine mechanical overloads.
    • This relay features a "differential" design, making it highly sensitive to phase loss or phase unbalance. If one phase fails a leading cause of motor failure the LRD10 detects the discrepancy and trips faster than a standard overload, shielding your motor from the rapid heat buildup that occurs during single-phasing conditions.
    • The LRD10 is equipped with 1 NO (Normally Open) + 1 NC (Normally Closed) auxiliary contacts. These are used to integrate the overload into your control circuit; the NC contact is wired to stop the contactor, while the NO contact can be used to trigger a "Fault" pilot light or send a status signal to a PLC, providing immediate diagnostic feedback.

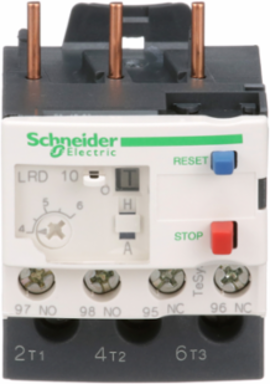

    • The unit features a blue lever that allows you to choose between Manual or Automatic reset modes. Manual mode ensures a technician must inspect the machine before restarting, while the integrated "Test" and "Stop" buttons allow for safe verification of the control circuit and manual simulation of a trip condition without disconnecting any wiring.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    France, United States
    Depth70 mm

    Important Information Attributes

    Persona Type Ids
    EU, LC, OM, OM8, PB, SC
    Market Segmentation Id
    COMMERCIAL, INDUSTRIAL
    Associated Fuse Rating
    4 A gG for signalling circuit, 4 A BS for signalling circuit
    Mounting Support
    plate, with specific accessories, rail, with specific accessories, under contactor
    Permissible Current
    3 A 120 V AC-15 signalling circuit, 0.22 A 125 V DC-13 signalling circuit
    Range
    TeSys, TeSys Deca
    Tightening Torque
    control circuit 1.7 N.m screw clamp terminals, power circuit 1.7 N.m screw clamp terminals
    [Ui] Rated Insulation Voltage
    power circuit 600 V CSA, power circuit 600 V ULpower circuit 690 V IEC 60947-4-1
    Carbon Footprint Of The Distribution Phase [A4]
    0.024163479198025903, 0 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]
    0 kg CO2 eq., 0.01635889814277638
    Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
    12 kg CO2 eq., 11.633004615445152
    Local Publishable Date
    2026-06-27
    Stocking Flag
    Y
    Device Type
    Relay, Control & Measurement - Protection relay
    Traceability
    No
    Weee Scope
    In
    Scope Perimeter
    At least in Europe
    End Of Life Doc Ref
    ENVEOLI0802006
    Reach Full Compliance Status Id
    NOT_CONTAINING_SVHC
    Rohs Eur In Scope
    Yes
    Rohs Eur Conformity Date
    0627
    China Rohs In Scope
    No
    With Recycled Cardboard
    Yes
    Product Contributes To Saved And Avoided Emissions
    No
    Tier
    1
    Function Option
    Standard
    Compatibility Code
    LRD
    Device Short Name
    LRD
    Energy Efficiency Optimized
    False
    Network Frequency
    0...400 Hz
    Product Availability
    Stock - Normally stocked in distribution facility
    Relay Application
    motor protection
    Software Version
    v6.1
    Thermal Overload Class
    class 10A IEC 60947-4-1
    Total Lifecycle Carbon Footprint
    13 kg CO2 eq.
    Weee Label
    The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Pep Code
    ENVPEP0802006EN
    Pep Verification Date
    2025-08-05
    Psr Version
    PSR-0005-ed3-EN-2023 06 06
    Data Source
    extrapolated product
    Functional-unit Quantity
    1
    Reference Lifetime In Y
    20
    Energy Model - Manufacturing [A1-a3]
    Europe, EU-27
    Energy Model - Use [B6]
    Electricity Mix; Low voltage; 2018; Europe, EU-27
    Recyclability Potential In %
    50
    Width Nominal
    45 mm
    [Ue] Rated Operational Voltage
    690 V AC 0...400 Hz power circuit IEC 60947-4-1
    Nbr. Of Units In Pkg.
    1
    Take-back
    No
    Customs Code
    8536490055
    Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician
    Market SegmentationCommercial, Industrial
    Mechanical Robustnessvibrations6 Gn IEC 60068-2-6, shocks15 Gn for 11 ms IEC 60068-2-7
    Network TypeDC, AC
    Product NameTeSys LRD, TeSys Deca
    Temperature Compensation-20-60 °C, -20-60 °C
    Certificate AgencyIEC, UL, CSA, CCC, EAC, BV, RINA, DNV-GL, LROS (Lloyds register of shipping), ATEX INERIS, UKCA
    Connections - Terminalspower circuit screw clamp terminals 1 1-4 mm² flexible with cable endpower circuit screw clamp terminals 1 1-6 mm² solid without cable end, control circuit screw clamp terminals 2 1-2.5 mm² flexible without cable end, control circuit screw clamp terminals 2 1-2.5 mm² flexible with cable end, control circuit screw clamp terminals 2 1-2.5 mm² solid without cable end, power circuit screw clamp terminals 1 1.5-10 mm² flexible without cable end
    Carbon Footprint Of The End-of-life Phase [C1 To C4]0.21678519324421383, 0.2 kg CO2 eq.
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]1 kg CO2 eq., 1.0267614686619415
    Local Data StatusPublishable
    Return IndicatorY
    Stock Policy1
    ServiceabilityNo
    Service Catalog ItemFinished good
    Weee Product Category5
    Eoli Availability DisplayYes
    Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
    Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant
    Rohs Eur Full Compliance StatusCompliant
    China Rohs Label1
    Without Single Use PlasticYes
    Tier Id1
    Function Option IdSTANDARD
    Product Kit IdentifierN
    Control TypeRed push-button stopBlue push-button reset
    Dielectric Strength1.89 kV 50 Hz IEC 60947-1
    Flame RetardanceV1 conforming to UL 94
    Phase Failure Sensitivitytripping current 130 % of Ir on two phase, the last one at 0
    Product Or Component Typedifferential thermal overload relay
    ReturnabilityYes
    Sustainable PackagingNo
    Thermal Protection Adjustment Range4-6 A
    Tripping Threshold1.14 +/- 0.06 Ir IEC 60947-4-1
    R Thermal Protection Adj Range4-6 A
    Database Version2023-02
    Pcr VersionPCR-4-ed4-EN-2021 09 06
    Type Of Verification For The PepIndependent internal review
    Functional-unit DescriptionOther switchgear and controlgear solutions mentioned in the scope (e.g. fuses TC32, all-or-nothing relays TC94, Measuring relays and protection equipment TC95), apply the general rules of PCR and mention in the accompanying report the functional unit, the reference product characteristics, the reference lifetime and the use scenario which are applied consistently with the relevant IEC technical standards.
    Functional-unit Unitunit
    Energy Consumption On Product Lifetime In Kwh28.3824
    Energy Model - Installation [A5]Electricity Mix; Low voltage; 2018; Europe, EU-27
    Energy Model - End Of Life [C1-c4]Electricity Mix; Low voltage; 2018; Europe, EU-27
    Height Nominal66 mm
    [Ith] Conventional Free Air Thermal Current5 A signalling circuit
    [Uimp] Rated Impulse Withstand Voltage6 kV
    Package Weight(Lbs)139.000 g
    Warranty (In Months)18

    Environment Attributes Main

    China Rohs Regulation
    Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
    Ambient Air Temperature For Storage
    -60-70 °C, -60-70 °C
    Take Back
    No
    Recycled Metal Content At Cr Level
    0 %
    Mercury Free
    Yes
    Circularity Profile
    ENVEOLI0802006
    Environmental Disclosure
    ENVPEP0802006EN
    Ip Degree Of Protection
    IP20 conforming to IEC 60529
    Packaging Without Single Use Plastic
    Yes
    Reach Regulation
    Free of Substances of Very High Concern above the threshold
    Pep Verification Date
    2025-08-05
    Psr Version
    PSR-0005-ed3-EN-2023 06 06
    Ambient Air Temperature For Operation-20-60 °C without derating IEC 60947-4-1, -20-60 °C without derating IEC 60947-4-1, -20-60 °C without derating IEC 60947-4-1-20-60 °C without derating IEC 60947-4-1, -20-60 °C without derating IEC 60947-4-1, -20-60 °C without derating IEC 60947-4-1
    Product CompatibilityLC1D09, LC1D32, LC1D38, LC1D12, LC1D18, LC1D25
    Reach Free ShvcYes
    Toxic Heavy Metal FreeYes
    Carbon Footprint12.917073654692109
    Climatic WithstandIACS E10
    Eu Rohs DirectiveCompliant
    Packaging Made With Recycled CardboardYes
    Reach Free Of SvhcYes
    Pep CodeENVPEP0802006EN
    Pcr VersionPCR-4-ed4-EN-2021 09 06
    Type Of Verification For The PepIndependent internal review

    General Attributes

    Product Or Component Type
    differential thermal overload relay

    ETIM

    ETIM 8
    EC000106
    ETIM 9EC000106

    Contractual Warranty Attributes

    Warranty Period
    18 months
    Warranty18 months
