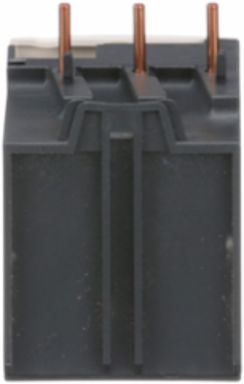

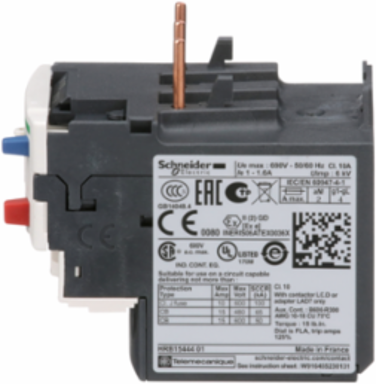

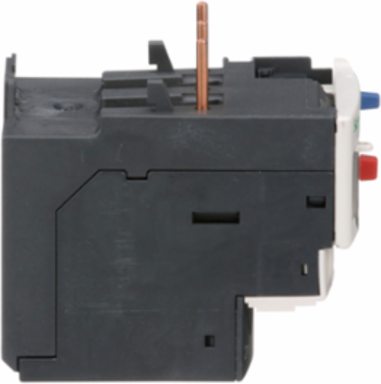

Schneider Electric LRD06 TeSys Deca Thermal Overload Relay 690VAC 1-1.6A Class 10A 1NO+1NC

MPN: LRD06
PPN: SCH-LRD06

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$124.05

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

TeSys LRD overload relays are designed to be used with TeSys D contactors to make a motor starter. This overload relay can be used with 9 amp through 38 amp TeSys D contactors. These differential thermal overload relays detect over currents in the lines to the motor. When an overcurrent is detected the overload relay working with the contactor will disconnect the power to the motor. This will minimize the damage to the motor windings. This overload relay has an adjustable trip current rating of 1.0 to 1.7 amperes. This trip current rating is calibrated per Class 10A. Multi standards certified (IEC, UL, CSA, CCC, EAC, ATEX, Marine).

Features

The Schneider LRD06 is a bimetallic thermal overload relay designed to protect AC motors from overloads, phase failure, and prolonged stalling. It is specifically engineered to mount directly beneath a TeSys D contactor (models LC1D09 through LC1D38), creating a seamless and coordinated motor starter assembly.
The LRD06 features a precise adjustment dial covering a current range of 1.0 to 1.6 Amps. This low-amperage range is ideal for protecting small fractional-horsepower motors, such as those found in small pumps, specialized fans, or precision conveyor systems, where accurate calibration is essential to prevent motor burnout.
This relay includes a differential trip mechanism that monitors all three phases. If one phase is lost (single-phasing) or if there is a significant current imbalance, the LRD06 will trip the circuit faster than a standard overload relay. This proactive protection prevents the rapid heat buildup that leads to catastrophic internal motor damage.

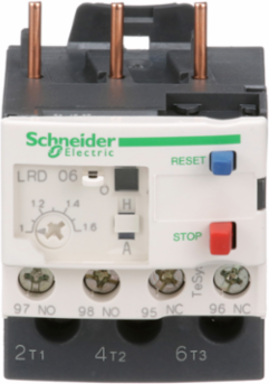

The unit features a blue Reset/Selector button that allows you to choose between Manual (H) or Automatic (A) reset. In Manual mode, the relay stays tripped until an operator inspects the motor and pushes the button; in Automatic mode, it resets itself once the internal bimetallic strips have cooled, which is useful for automated systems in hard-to-reach locations.
For easier commissioning, the LRD06 includes a red Stop button and a Test trip slide. The Stop button manually opens the NC (Normally Closed) contact to stop the motor, while the Test function simulates a trip to verify that your auxiliary alarm or PLC signaling circuits are functioning correctly without needing to physically overheat the motor.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	France, United States

Depth	70 mm

Important Information Attributes

Persona Type Ids	EU, LC, OM, OM8, PB, SC
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Associated Fuse Rating	4 A gG for signalling circuit, 4 A BS for signalling circuit
Mounting Support	plate, with specific accessories, rail, with specific accessories, under contactor
Permissible Current	3 A 120 V AC-15 signalling circuit, 0.22 A 125 V DC-13 signalling circuit
Range	TeSys, TeSys Deca
Tightening Torque	control circuit 1.7 N.m screw clamp terminals, power circuit 1.7 N.m screw clamp terminals
[Ui] Rated Insulation Voltage	power circuit 600 V CSA, power circuit 600 V ULpower circuit 690 V IEC 60947-4-1
Carbon Footprint Of The Distribution Phase [A4]	0.02767108101709418, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	0 kg CO2 eq., 0.01873357690543747
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	12 kg CO2 eq., 11.63300461544515
Local Publishable Date	2026-06-27
Stocking Flag	Y
Device Type	Relay, Control & Measurement - Protection relay
Traceability	No
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	Yes
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Control Type	Red push-button stopBlue push-button reset
Dielectric Strength	1.89 kV 50 Hz IEC 60947-1
Network Frequency	0...400 Hz
Product Availability	Stock - Normally stocked in distribution facility
Relay Application	motor protection
Software Version	v6.1
Thermal Overload Class	class 10A IEC 60947-4-1
Total Lifecycle Carbon Footprint	13 kg CO2 eq.
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Pep Code	ENVPEP0802006EN
Pep Verification Date	2025-11-10
Psr Version	PSR-0005-ed3-EN-2023 06 06
Data Source	referent product
Functional-unit Quantity	1
Reference Lifetime In Y	20
Energy Model - Installation [A5]	Electricity Mix; Low voltage; 2018; Europe, EU-27
Energy Model - End Of Life [C1-c4]	Electricity Mix; Low voltage; 2018; Europe, EU-27
Height Nominal	66 mm
[Ith] Conventional Free Air Thermal Current	5 A signalling circuit
[Uimp] Rated Impulse Withstand Voltage	6 kV
Package Weight(Lbs)	138.000 g
Warranty (In Months)	18

Persona Type Names	End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician
Market Segmentation	Commercial, Industrial
Mechanical Robustness	vibrations6 Gn IEC 60068-2-6, shocks15 Gn for 11 ms IEC 60068-2-7
Network Type	DC, AC
Product Name	TeSys LRD, TeSys Deca
Temperature Compensation	-20-60 °C, -20-60 °C
Certificate Agency	IEC, UL, CSA, CCC, EAC, BV, RINA, DNV-GL, LROS (Lloyds register of shipping), ATEX INERIS, UKCA
Connections - Terminals	power circuit screw clamp terminals 1 1-4 mm² flexible with cable endpower circuit screw clamp terminals 1 1-6 mm² solid without cable end, control circuit screw clamp terminals 2 1-2.5 mm² flexible without cable end, control circuit screw clamp terminals 2 1-2.5 mm² flexible with cable end, control circuit screw clamp terminals 2 1-2.5 mm² solid without cable end, power circuit screw clamp terminals 1 1.5-10 mm² flexible without cable end
Carbon Footprint Of The End-of-life Phase [C1 To C4]	0.2482540116183739, 0.2 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	1 kg CO2 eq., 1.175807488306417
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	1
Serviceability	No
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI0802006
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	0627
China Rohs In Scope	No
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Compatibility Code	LRD
Device Short Name	LRD
Flame Retardance	V1 conforming to UL 94
Phase Failure Sensitivity	tripping current 130 % of Ir on two phase, the last one at 0
Product Or Component Type	differential thermal overload relay
Returnability	Yes
Sustainable Packaging	No
Thermal Protection Adjustment Range	1-1.6 A
Tripping Threshold	1.14 +/- 0.06 Ir IEC 60947-4-1
R Thermal Protection Adj Range	1-1.6 A
Database Version	2023-02
Pcr Version	PCR-4-ed4-EN-2021 09 06
Type Of Verification For The Pep	Independent internal review
Functional-unit Description	Other switchgear and controlgear solutions mentioned in the scope (e.g. fuses TC32, all-or-nothing relays TC94, Measuring relays and protection equipment TC95), apply the general rules of PCR and mention in the accompanying report the functional unit, the reference product characteristics, the reference lifetime and the use scenario which are applied consistently with the relevant IEC technical standards.
Functional-unit Unit	unit
Energy Model - Manufacturing [A1-a3]	Europe, EU-27
Energy Model - Use [B6]	Electricity Mix; Low voltage; 2018; Europe, EU-27
Recyclability Potential In %	50
Width Nominal	45 mm
[Ue] Rated Operational Voltage	690 V AC 0...400 Hz power circuit IEC 60947-4-1
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8536490075

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
Ambient Air Temperature For Storage	-60-70 °C, -60-70 °C
Take Back	No
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Circularity Profile	ENVEOLI0802006
Environmental Disclosure	ENVPEP0802006EN
Ip Degree Of Protection	IP20 conforming to IEC 60529
Packaging Without Single Use Plastic	Yes
Reach Regulation	Free of Substances of Very High Concern above the threshold
Pep Verification Date	2025-11-10
Psr Version	PSR-0005-ed3-EN-2023 06 06

Ambient Air Temperature For Operation	-20-60 °C without derating IEC 60947-4-1, -20-60 °C without derating IEC 60947-4-1, -20-60 °C without derating IEC 60947-4-1-20-60 °C without derating IEC 60947-4-1, -20-60 °C without derating IEC 60947-4-1, -20-60 °C without derating IEC 60947-4-1
Product Compatibility	LC1D25, LC1D32, LC1D12, LC1D18, LC1D38, LC1D09
Reach Free Shvc	Yes
Toxic Heavy Metal Free	Yes
Carbon Footprint	13.103470773292472
Climatic Withstand	IACS E10
Eu Rohs Directive	Compliant
Packaging Made With Recycled Cardboard	Yes
Reach Free Of Svhc	Yes
Pep Code	ENVPEP0802006EN
Pcr Version	PCR-4-ed4-EN-2021 09 06
Type Of Verification For The Pep	Independent internal review
