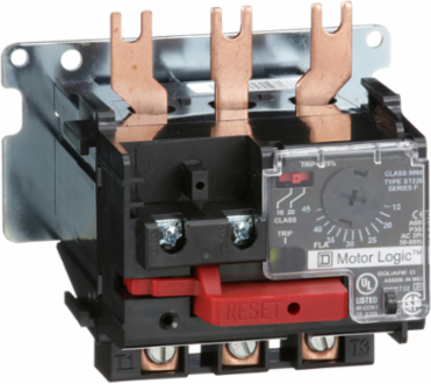

Square D 9065ST220 Motor Logic Solid State Overload Relay NEMA Size 2 15A-45A 600V AC
- MPN: 9065ST220
- UPC: 785901750017
- PPN: SCH-9065ST220
CAD
$667.51
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
Motor Logic overload relays can be standalone devices or can be used on Type S full voltage non-reversing and reversing starters and combination starters. Motor Logic relays are ambient insensitive and self-powered. Designed to protect 50/60 Hz, three phase AC motors from overloads, phase unbalance and phase loss conditions. This replacement Motor Logic solid state overload relay is for use with Type S NEMA size 2 three pole starters. This Motor Logic solid state overload relay has a full load current rating of 15A to 45A. Maximum voltage rating of 600 V. The trip free operation will help the motor from overheating. Switch selectable from Class 10 to Class 20 overload trip. The trip free operation will help the motor from overheating. The visible trip indicator and trip test function make trouble shooting much quicker. Electrical remote reset is available. This overload relay is 3.51 inches tall, 4.28 inches wide and 3.51 inches deep. Motor Logic SSOLR are UL listed and CSA certified.
Features
- This premium Motor Logic solid state overload relay is engineered specifically as a direct replacement component for Square D Type S NEMA Size 2 three-pole starters. Designed to drop perfectly into non-reversing, reversing, combination, and multi-speed configurations, it ensures a hassle-free mechanical fit that eliminates the guesswork and downtime of panel retrofitting.
- Featuring a wide, adjustable Full Load Amperage (FLA) range from 15A to 45A, this single electronic relay provides precise matching to your exact motor nameplate parameters. The broad current spectrum eliminates the need to purchase, inventory, and swap out individual traditional thermal heater elements when motor requirements change, dramatically lowering your total cost of ownership.
- Engineered for comprehensive electronic motor diagnostics, it safeguards your critical three-phase systems against destructive overloads, phase unbalance, and rapid phase loss conditions. Its ultra-responsive solid-state circuitry reacts significantly faster than traditional bimetallic heaters, protecting expensive industrial pumps, compressors, and conveyors before winding insulation damage can occur.
Documentation & Downloads
Specifications
Additional
- Voltage
- 600 V AC
- Frequency
- 50/60 Hz
- Height
- 89.2 mm
- Depth
- 89.2 mm
- Mounting
- Mounting plate
- PVC Free
- Yes
- Country of Origin
- Mexico
Phase3 phases
NEMA Size2
Width108.7 mm
Thermal Overload TypeSolid State
Mercury FreeYes
RoHSCompliant with Exemptions
