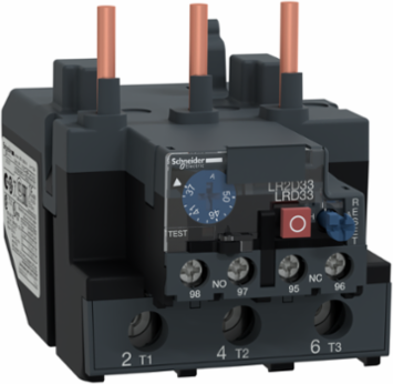

Schneider Electric LRD3357 TeSys Deca Thermal Overload Relay 37-50A Class 10A
- MPN: LRD3357
- PPN: SCH-LRD3357
CAD
$255.68
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
TeSys LRD overload relays are designed to be used with TeSys D contactors to make a motor starter. This overload relay can be used with 80 amp through 95 amp TeSys D contactors. These differential thermal overload relays detect over currents in the lines to the motor. When an overcurrent is detected the overload relay working with the contactor will disconnect the power to the motor. This will minimize the damage to the motor windings. This overload relay has an adjustable trip current rating of 37 to 50 amperes. This trip current rating is calibrated per Class 10A. Multi standards certified (IEC, UL, CSA, CCC, EAC, ATEX, Marine).
Features
- Engineered for seamless direct mounting to Schneider Electric TeSys D contactors (specifically LC1D80 and LC1D95), this thermal overload relay creates a compact, integrated motor starter assembly. This plug-and-play design eliminates the need for extra wiring or DIN-rail adapters, saving valuable panel space and reducing labor time during installation or maintenance.
- Featuring a high-visibility adjustment dial, this relay allows for fine-tuned current settings between 37A and 50A to match your specific motor s Full Load Amps (FLA). This precision prevents nuisance tripping while ensuring the relay reacts instantly to overloads, effectively shielding your heavy-duty motors from overheating and costly winding failure.
- Built with advanced differential tripping technology, the LRD3357 detects phase unbalance and phase loss in real-time. This critical protection layer automatically disconnects the motor if one phase fails, preventing the rapid heat buildup and catastrophic motor burnout that typically occurs when industrial equipment tries to run on unbalanced power.
- Equipped with a versatile blue reset button, the device allows for a choice between manual reset forcing a technician inspection or automatic reset for remote applications. The integrated red stop/test button allows you to manually verify the internal tripping mechanism and auxiliary contacts (1 NO + 1 NC) without a fault, ensuring your safety circuit is fully operational before the line goes live.
- Utilizing Schneider s patented EverLink screw technology, the power connections maintain constant pressure on the cables even as the copper creeps or vibrates over time. This eliminates the need for periodic re-tightening and prevents hot spots at 600V, ensuring your 3-phase industrial power distribution remains stable and fire-safe in high-vibration manufacturing environments.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, China, France, United States
Depth115 mm
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SC
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Associated Fuse Rating
- 4 A gG for signalling circuit, 4 A BS for signalling circuit
- Mounting Support
- plate, with specific accessories, rail, with specific accessories, under contactor
- Permissible Current
- 0.72 A 500 V AC-15 signalling circuit, 0.06 A 440 V DC-13 signalling circuit
- Temperature Compensation
- -20-60 °C, -20-60 °C
- [Ui] Rated Insulation Voltage
- power circuit 1000 V IEC 60947-4-1power circuit 600 V CSA, power circuit 600 V UL
- Carbon Footprint Of The Distribution Phase [A4]
- 0.11399705911971895, 0.1 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.06103430356206878, 0.1 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 2 kg CO2 eq., 1.8963357840065684
- Local Publishable Date
- 2026-06-27
- Stocking Flag
- Y
- Device Type
- Relay, Control & Measurement - Protection relay
- Traceability
- No
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Control Type
- Red push-button stopBlue push-button reset
- Dielectric Strength
- 2.2 kV 50 Hz IEC 60947-1
- Network Frequency
- 0...400 Hz
- Product Availability
- Stock - Normally stocked in distribution facility
- Range
- TeSys
- Returnability
- Yes
- Sustainable Packaging
- Yes
- Thermal Protection Adjustment Range
- 37-50 A
- Total Lifecycle Carbon Footprint
- 6 kg CO2 eq.
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Pep Code
- ENVPEP1101001EN
- Pep Verification Date
- 2025-08-05
- Psr Version
- PSR-0005-ed3-EN-2023 06 06
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 20
- Energy Model - Manufacturing [A1-a3]
- France, FR
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2018; France, FR
- Recyclability Potential In %
- 63
- Width Nominal
- 70 mm
- [Ue] Rated Operational Voltage
- 1000 V AC 0...400 Hz power circuit IEC 60947-4-1
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536490075
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician
Market SegmentationCommercial, Industrial
Mechanical Robustnessvibrations6 Gn IEC 60068-2-6, shocks15 Gn for 11 ms IEC 60068-2-7
Network TypeDC, AC
Product NameTeSys LRD, TeSys Deca
Certificate AgencyIEC, UL, CSA, CCC, EAC, ATEX INERIS, UKCA
Connections - Terminalscontrol circuit screw clamp terminals 2 1-2.5 mm² flexible with cable endcontrol circuit screw clamp terminals 2 1-2.5 mm² solid without cable end, power circuit screw clamp terminals 1 4-35 mm² flexible without cable end, power circuit screw clamp terminals 1 4-35 mm² flexible with cable end, power circuit screw clamp terminals 1 4-35 mm² solid without cable end, control circuit screw clamp terminals 2 1-2.5 mm² flexible without cable end
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.9 kg CO2 eq., 0.8942442055865407
Carbon Footprint Of The Manufacturing Phase [A1 To A3]3 kg CO2 eq., 3.012824590856316
Local Data StatusPublishable
Return IndicatorY
Stock Policy1
ServiceabilityNo
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1101001
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2023
China Rohs In ScopeNo
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Compatibility CodeLRD
Device Short NameLRD
Flame RetardanceV1 conforming to UL 94
Phase Failure Sensitivitytripping current 130 % of Ir on two phase, the last one at 0
Product Or Component Typedifferential thermal overload relay
Relay Applicationmotor protection
Software Versionv6.1
Thermal Overload Classclass 10A IEC 60947-4-1
Tightening Torquecontrol circuit 1.7 N.m screw clamp terminalspower circuit 9 N.m screw clamp terminals
Tripping Threshold1.14 +/- 0.06 Ir IEC 60947-4-1
R Thermal Protection Adj Range37-50 A
Database Version2023-02
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionOther switchgear and controlgear solutions mentioned in the scope (e.g. fuses TC32, all-or-nothing relays TC94, Measuring relays and protection equipment TC95), apply the general rules of PCR and mention in the accompanying report the functional unit, the reference product characteristics, the reference lifetime and the use scenario which are applied consistently with the relevant IEC technical standards.
Functional-unit Unitunit
Energy Consumption On Product Lifetime In Kwh28.3824
Energy Model - Installation [A5]Electricity Mix; Low voltage; 2018; France, FR
Energy Model - End Of Life [C1-c4]Electricity Mix; Low voltage; 2018; France, FR
Height Nominal81 mm
[Ith] Conventional Free Air Thermal Current5 A signalling circuit
[Uimp] Rated Impulse Withstand Voltage6 kV IEC 60947-1
Package Weight(Lbs)492.000 g
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Ambient Air Temperature For Storage
- -60-70 °C, -60-70 °C
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI1101001
- Environmental Disclosure
- ENVPEP1101001EN
- Ip Degree Of Protection
- IP20 conforming to IEC 60529
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-08-05
- Psr Version
- PSR-0005-ed3-EN-2023 06 06
Ambient Air Temperature For Operation-20-60 °C without derating IEC 60947-4-1, -20-60 °C without derating IEC 60947-4-1, -20-60 °C without derating IEC 60947-4-1-20-60 °C without derating IEC 60947-4-1, -20-60 °C without derating IEC 60947-4-1, -20-60 °C without derating IEC 60947-4-1
Product CompatibilityLC1D95, LC1D80
Reach Free ShvcYes
Toxic Heavy Metal FreeYes
Carbon Footprint5.978435943131213
Climatic WithstandIACS E10
Eu Rohs DirectiveCompliant
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
Pep CodeENVPEP1101001EN
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- differential thermal overload relay
ETIM
- ETIM 8
- EC000106
ETIM 9EC000106
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
