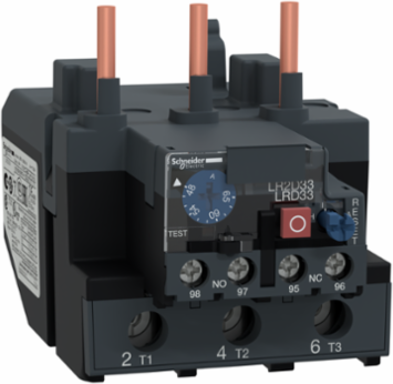

Schneider Electric LRD3359 TeSys Deca Thermal Overload Relay 48-65 A Class 10A
- MPN: LRD3359
- PPN: SCH-LRD3359
CAD
$266.09
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
TeSys LRD overload relays are designed to be used with TeSys D contactors to make a motor starter. This overload relay can be used with 80 amp through 95 amp TeSys D contactors. These differential thermal overload relays detect over currents in the lines to the motor. When an overcurrent is detected the overload relay working with the contactor will disconnect the power to the motor. This will minimize the damage to the motor windings. This overload relay has an adjustable trip current rating of 48 to 65 amperes. This trip current rating is calibrated per Class 10A. Multi standards certified (IEC, UL, CSA, CCC, EAC, ATEX, Marine).
Features
- Featuring an integrated setting dial that adjusts from 48 to 65 Amps, this bimetallic relay allows electrical contractors to match the precise Full Load Amperage (FLA) of three-phase motors. This granular adjustment prevents premature or nuisance tripping during normal, heavy startup draws while guaranteeing robust overcurrent protection for large 30kW pumps, fans, and compressors.
- Purpose-built for the Schneider Electric TeSys Deca framework, this relay mounts directly beneath standard LC1D80 and LC1D95 3-pole contactors. The plug-and-play pin alignment eliminates the labor, space, and wiring costs of separate mounting bases, allowing panel builders to optimize space inside crowded control enclosures.
- This differential overload relay monitors incoming current and rapidly triggers a trip if it detects a single-phase loss or a major phase unbalance. By breaking the control circuit before the motor windings overheat from running on unbalanced voltage, it shields critical plant equipment from catastrophic insulation failure and expensive burnouts.
- Calibrated strictly to a Class 10A trip curve, this safety device guarantees a reliable circuit interruption within 10 seconds of an overcurrent or locked-rotor event. This standard-speed response safely absorbs temporary inrush currents when starting high-inertia loads while responding quickly enough to preserve the operational lifespan of your motor infrastructure.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Brazil, China, France, United States |
|---|
| Depth | 115 mm |
|---|
Important Information Attributes
| Associated Fuse Rating | 4 A gG for signalling circuit, 4 A BS for signalling circuit |
|---|---|
| Mounting Support | plate, with specific accessories, rail, with specific accessories, under contactor |
| Permissible Current | 0.72 A 500 V AC-15 signalling circuit, 0.06 A 440 V DC-13 signalling circuit |
| Temperature Compensation | -20-60 °C, -20-60 °C |
| [Ui] Rated Insulation Voltage | power circuit 1000 V IEC 60947-4-1power circuit 600 V CSA, power circuit 600 V UL |
| Carbon Footprint Of The Distribution Phase [A4] | 0.11399705911971895, 0.1 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.06103430356206878, 0.1 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 2 kg CO2 eq., 1.8963357840065684 |
| Local Publishable Date | 2026-06-27 |
| Stocking Flag | N |
| Device Type | Relay, Control & Measurement - Protection relay |
| Traceability | No |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | Yes |
| Product Kit Identifier | N |
| Control Type | Red push-button stopBlue push-button reset |
| Dielectric Strength | 2.2 kV 50 Hz IEC 60947-1 |
| Network Frequency | 0...400 Hz |
| Product Availability | Stock - Normally stocked in distribution facility |
| Range | TeSys |
| Returnability | Yes |
| Sustainable Packaging | Yes |
| Thermal Protection Adjustment Range | 48-65 A |
| Total Lifecycle Carbon Footprint | 6 kg CO2 eq. |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Pep Code | ENVPEP1101001EN |
| Pep Verification Date | 2025-08-05 |
| Psr Version | PSR-0005-ed3-EN-2023 06 06 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Energy Model - Manufacturing [A1-a3] | France, FR |
| Energy Model - Use [B6] | Electricity Mix; Low voltage; 2018; France, FR |
| Recyclability Potential In % | 63 |
| Width Nominal | 70 mm |
| [Ue] Rated Operational Voltage | 1000 V AC 0...400 Hz power circuit IEC 60947-4-1 |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8536490075 |
| Mechanical Robustness | vibrations6 Gn IEC 60068-2-6, shocks15 Gn for 11 ms IEC 60068-2-7 |
|---|---|
| Network Type | AC, DC |
| Product Name | TeSys LRD, TeSys Deca |
| Certificate Agency | IEC, UL, CSA, CCC, EAC, ATEX INERIS, UKCA |
| Connections - Terminals | control circuit screw clamp terminals 2 1-2.5 mm² flexible with cable endcontrol circuit screw clamp terminals 2 1-2.5 mm² solid without cable end, power circuit screw clamp terminals 1 4-35 mm² flexible without cable end, power circuit screw clamp terminals 1 4-35 mm² flexible with cable end, power circuit screw clamp terminals 1 4-35 mm² solid without cable end, control circuit screw clamp terminals 2 1-2.5 mm² flexible without cable end |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0.9 kg CO2 eq., 0.8942442055865407 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 3 kg CO2 eq., 3.012824590856316 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 2 |
| Serviceability | No |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI1101001 |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 2023 |
| China Rohs In Scope | No |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Compatibility Code | LRD |
| Device Short Name | LRD |
| Flame Retardance | V1 conforming to UL 94 |
| Phase Failure Sensitivity | tripping current 130 % of Ir on two phase, the last one at 0 |
| Product Or Component Type | differential thermal overload relay |
| Relay Application | motor protection |
| Software Version | v6.1 |
| Thermal Overload Class | class 10A IEC 60947-4-1 |
| Tightening Torque | control circuit 1.7 N.m screw clamp terminalspower circuit 9 N.m screw clamp terminals |
| Tripping Threshold | 1.14 +/- 0.06 Ir IEC 60947-4-1 |
| R Thermal Protection Adj Range | 48-65 A |
| Database Version | 2023-02 |
| Pcr Version | PCR-4-ed4-EN-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | Other switchgear and controlgear solutions mentioned in the scope (e.g. fuses TC32, all-or-nothing relays TC94, Measuring relays and protection equipment TC95), apply the general rules of PCR and mention in the accompanying report the functional unit, the reference product characteristics, the reference lifetime and the use scenario which are applied consistently with the relevant IEC technical standards. |
| Functional-unit Unit | unit |
| Energy Consumption On Product Lifetime In Kwh | 28.3824 |
| Energy Model - Installation [A5] | Electricity Mix; Low voltage; 2018; France, FR |
| Energy Model - End Of Life [C1-c4] | Electricity Mix; Low voltage; 2018; France, FR |
| Height Nominal | 81 mm |
| [Ith] Conventional Free Air Thermal Current | 5 A signalling circuit |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV IEC 60947-1 |
| Package Weight(Lbs) | 490.000 g |
| Warranty (In Months) | 18 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope) |
|---|---|
| Ambient Air Temperature For Storage | -60-70 °C, -60-70 °C |
| Take Back | No |
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Circularity Profile | ENVEOLI1101001 |
| Environmental Disclosure | ENVPEP1101001EN |
| Ip Degree Of Protection | IP20 conforming to IEC 60529 |
| Packaging Without Single Use Plastic | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Pep Verification Date | 2025-08-05 |
| Psr Version | PSR-0005-ed3-EN-2023 06 06 |
| Ambient Air Temperature For Operation | -20-60 °C without derating IEC 60947-4-1, -20-60 °C without derating IEC 60947-4-1, -20-60 °C without derating IEC 60947-4-1-20-60 °C without derating IEC 60947-4-1, -20-60 °C without derating IEC 60947-4-1, -20-60 °C without derating IEC 60947-4-1 |
|---|---|
| Product Compatibility | LC1D80, LC1D95 |
| Reach Free Shvc | Yes |
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 5.978435943131213 |
| Climatic Withstand | IACS E10 |
| Eu Rohs Directive | Compliant |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP1101001EN |
| Pcr Version | PCR-4-ed4-EN-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
General Attributes
| Product Or Component Type | differential thermal overload relay |
|---|
ETIM
| ETIM 8 | EC000106 |
|---|
| ETIM 9 | EC000106 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
