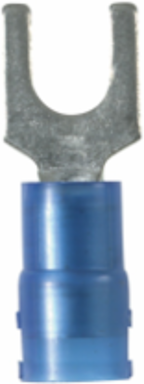

Panduit PN14-14F-C Pan-Term® PN14-14F-C Loose Piece Forks
- MPN: PN14-14F-C
- UPC: 074983803149
- PPN: PAN-PN14-14F-C
- UNSPSC: 39121409
CAD
$1.17
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Fork Terminal, nylon insulated, 18- 14 AWG, 1/4 stud size, standard package.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- Product Segment
- IEI
- Overall Width (In.)
- 0.44
- Finish/Coating
- Tin-Plated
- Tongue Thickness (mm)
- 0.8
- Stud Hole Size (In.)
- 1/4
- Barrel Type
- Grip Sleeve
- Maximum Operating Temperature (°C)
- 105
- Wire Strip Length (mm)
- 5.6
- For Use With
- CT-100, CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550)
- Maximum Operating Temperature (°F)
- 221
- Seam Type
- Butted
- Maximum Voltage (kV)
- 0.6
- Overall Length (mm)
- 25.9
- Barrel Length (mm)
- 13
- Overall Length (In.)
- 1.02
- Tongue Width (mm)
- 11.2
- Tongue Length (mm)
- 13
- Tongue Length (In.)
- 0.51
- Maximum Wire Insulation Diameter (mm)
- 4.1
- Maximum Metric Conductor Size (mm²)
- 2.5
- Wire Size
- 18-14 AWG
Any Reason Not to SellN
Base MaterialCopper
Stud Size1/4"
Stud Hole Size (mm)6
Maximum Wire Insulation Diameter (In.)0.162
Overall Width (mm)11.2
Sub BrandPan-Term®
Tongue Width (In.)0.44
Product TypeFork Terminal
Insulation TypeNylon
Insulation MaterialNylon
Maximum Voltage (V)600
Packaging TypeBottle
Flammability RatingUL 94 HB
Wire Strip Length (In.)7/32
Color CodeBlue
Fork TypeStandard
Tongue Thickness (In.)0.03
Minimum Metric Conductor Size (mm²)1
Barrel Length (In.)0.51
Copper Conductor Size18-14 AWG
Packaging Details
- UPC
- 07498380314
- Standard Package Volume Ft3
- 0.0074
- Std Package Height In
- 1.9
- Std Package Length In
- 4.35
- Std Package Width In
- 1.95
- Std. Pkg. UOM
- Piece
- Std. Pkg. Qty.
- 100
- Standard Carton Volume Ft3
- 0.0368
- Std Carton Height In
- 4.4
- Std Carton Length In
- 9.8
- Std Carton Width In
- 2.35
- Std Ctn Qty
- 500
- EAN
- 00074983803149
- ARRA Compliant
- Y
- Hazardous Material Flag
- N
- Pallet Quantity
- 0
- Pallet Weight
- 0.0000
GTIN Package00074983803149
Standard Package Weight Pounds0.3500
Std Package Height MM48.26
Std Package Length MM110.49
Std Package Width MM49.53
UOM EA PKPK
GTIN Carton50074983803144
Standard Carton Weight Pounds1.7500
Std Carton Height MM111.76
Std Carton Length MM248.92
Std Carton Width MM59.69
Min. Order UOMPiece
REACH StatusN
Mercury Content IndicatorN
Min Order Qty100.0000
Pallet Volume0.000000
RoHS CompliantCompliant
