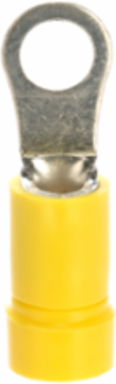

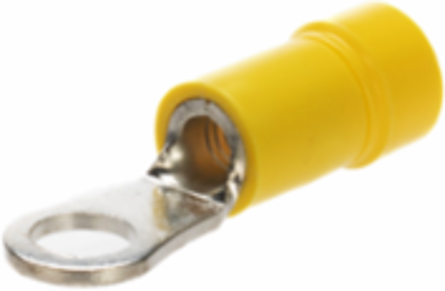

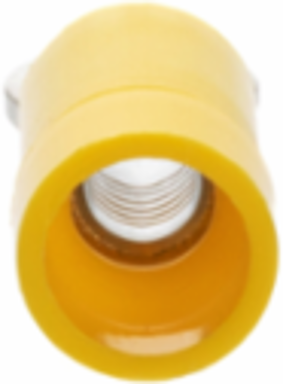

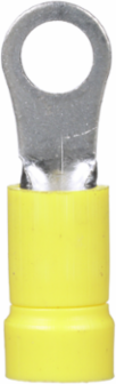

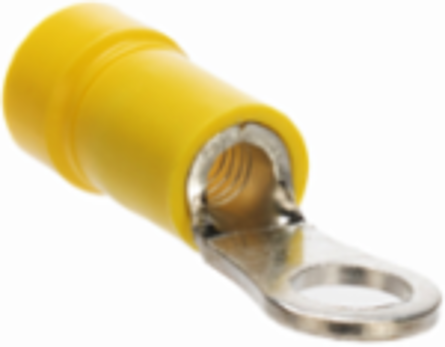

Panduit PV10-10R-L Pan-Term® PV10-10R-L Ring Terminal, Yellow, Vinyl, 10-12 AWG, #10 Stud, PK50
Panduit PV10-10R-L Pan-Term® PV10-10R-L Ring Terminal, Yellow, Vinyl, 10-12 AWG, #10 Stud, PK50
- MPN: PV10-10R-L
- UPC: 074983801329
- PPN: PAN-PV10-10R-L
- UNSPSC: 39121409
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$0.86/ EA
Description
The PV10-10R-L Pan-Term® Terminal is a vinyl insulated, ring terminal. Brazed seam protects terminal barrel from splitting during the crimp process. Internal barrel serrations assure good wire contact and maximum tensile strength. Extented barrel insulation provides protection and strain relief when crimped.
Specifications
Specifications
- Country of Origin
- Mexico
- Product Segment
- IEI
- Wire Strip Length (mm)
- 7.9
- Maximum Operating Temperature (°F)
- 221
- Tongue Thickness (mm)
- 1
- Wire Strip Length (In.)
- 5/16
- Finish/Coating
- Tin-Plated
- Sub Brand
- Pan-Term®
- Stud Hole Size (mm)
- 5
- Overall Width (mm)
- 7.9
- Flammability Rating
- UL94V-0
- Color Code
- Yellow
- For Use With
- CT-100, CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550)
- Barrel Type
- Funnel Entry
- Maximum Wire Insulation Diameter (mm)
- 5.8
- Insulation Material
- Vinyl
- Product Type
- Ring Terminal
- Overall Length (In.)
- 1.05
- Copper Conductor Size
- 12-10 AWG
Any Reason Not to SellN
Maximum Voltage (V)600
Maximum Metric Conductor Size (mm²)6
Maximum Voltage (kV)0.6
Stud Size#10
Seam TypeBrazed
Stud Hole Size (In.)#10
Tongue Width (In.)0.31
Minimum Metric Conductor Size (mm²)4
Packaging TypeBottle
Overall Length (mm)26.7
Tongue Thickness (In.)0.04
Base MaterialCopper
Maximum Wire Insulation Diameter (In.)0.23
Overall Width (In.)0.31
Tongue Width (mm)7.9
Maximum Operating Temperature (°C)105
Wire Size12-10 AWG
Packaging Details
- UPC
- 07498380132
- Standard Package Volume Ft3
- 0.0037
- Std Package Height In
- 1.75
- Std Package Length In
- 3.6
- Std Package Width In
- 1.8
- Std. Pkg. UOM
- Piece
- Std. Pkg. Qty.
- 50
- Standard Carton Volume Ft3
- 0.0368
- Std Carton Height In
- 3.65
- Std Carton Length In
- 9.55
- Std Carton Width In
- 3.85
- Std Ctn Qty
- 500
- EAN
- 00074983801329
- California Pro65 Cancer
- No
- Mercury Content Indicator
- N
- Restricted Use of Hazardous Substances
- N
- Min Order Qty
- 250.0000
- Pallet Volume
- 0.000000
- RoHS Compliant
- Compliant
GTIN Package00074983801329
Standard Package Weight Pounds0.2400
Std Package Height MM44.45
Std Package Length MM91.44
Std Package Width MM45.72
UOM EA PKPK
GTIN Carton50074983801324
Standard Carton Weight Pounds2.4000
Std Carton Height MM92.71
Std Carton Length MM242.57
Std Carton Width MM97.79
Min. Order UOMPiece
REACH StatusN
ARRA CompliantY
Lead Content IndicatorN
Hazardous Material FlagN
Pallet Quantity0
Pallet Weight0.0000
