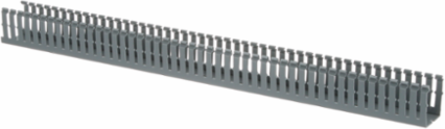

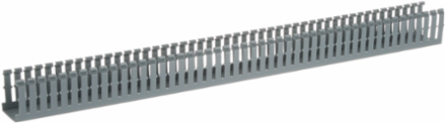

Panduit F1.5X2LG6 Panduct® F1.5X2LG6 Base Wiring Duct
Panduit F1.5X2LG6 Panduct® F1.5X2LG6 Base Wiring Duct
- MPN: F1.5X2LG6
- UPC: 074983375332
- PPN: PAN-F1.5X2LG6
- UNSPSC: 39131712
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$4.93/ FT
Description
The F1.5X2LG6 Panduct Lead-Free PVC Narrow Slot Wiring Duct features a narrow slot/finger design that closely matches the spacing of high-density components. Upper and lower scorelines allow for easy finger/sidewall section removal. UL 94 flame class of V-0 with a UL recognized continuous-use temperature up to 122°F (50°C). Mounting holes provided. Lead-free PVC. 1.5" x 2" (38.1 mm x 50.8 mm) and 6' (1.83 m) long. Cover sold separately. Color Light Gray.
Specifications
Specifications
- Country of Origin
- United States
- Product Segment
- IEI
- Flammability Rating
- UL94V-0
- Application
- Narrow slot/finger design provides more slots to fit the spacing of high-density terminal block applications
- Mount Method
- Mounting Holes
- Cover Part Number
- C1.5LG6
- Overall Height (mm)
- 53.8
- Wiring Duct Type
- F
- Material
- PVC
- Measurement System
- Imperial
- Includes
- (1) Base
- Color
- Light Gray
- Nominal Width (In.)
- 1.5
Any Reason Not to SellN
Product TypeBase Wiring Duct
Slot Width (mm)5
Overall Length (m)1.83
Overall Length (ft.)6
Wiring Duct StyleNarrow Slot Wiring Duct
Overall Width (mm)44.5
Overall Height (In.)2.12
Sub BrandPanduct®
Slot Width (In.)0.2
Overall Width (In.)1.75
Material PropertiesLead-Free
Nominal Height (In.)2
Packaging Details
- UPC
- 07498337533
- Standard Package Volume Ft3
- 0.1071
- Std Package Height In
- 2
- Std Package Length In
- 72
- Std Package Width In
- 1.5
- Std. Pkg. UOM
- Foot
- Std. Pkg. Qty.
- 6
- Standard Carton Volume Ft3
- 2.1414
- Std Carton Height In
- 4.7
- Std Carton Length In
- 72.9
- Std Carton Width In
- 10.8
- Std Ctn Qty
- 120
- EAN
- 00074983375332
- ARRA Compliant
- Y
- Hazardous Material Flag
- N
- Pallet Quantity
- 3,360
- Pallet Weight
- 806.4000
GTIN Package00074983375332
Standard Package Weight Pounds1.4400
Std Package Height MM50.8
Std Package Length MM1828.8
Std Package Width MM38.1
UOM EA PKPK
GTIN Carton50074983375337
Standard Carton Weight Pounds28.8000
Std Carton Height MM119.38
Std Carton Length MM1851.66
Std Carton Width MM274.32
Min. Order UOMFoot
REACH StatusN
Mercury Content IndicatorN
Min Order Qty120.0000
Pallet Volume59.960250
RoHS CompliantCompliant
