Panduit F1X3LG6 Panduct® F1X3LG6 Base Wiring Duct
Panduit F1X3LG6 Panduct® F1X3LG6 Base Wiring Duct
- MPN: F1X3LG6
- UPC: 074983375158
- PPN: PAN-F1X3LG6
- UNSPSC: 39131712
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$5.80/ FT
Description

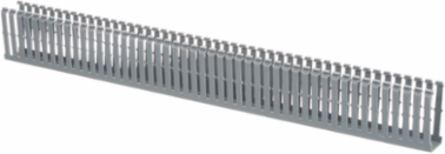

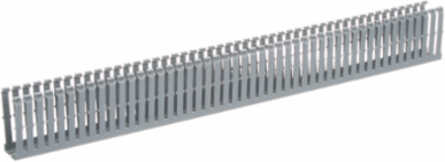

The F1X3LG6 Panduct Lead-Free PVC Narrow Slot Wiring Duct features a narrow slot/finger design that closely matches the spacing of high-density components. Upper and lower scorelines allow for easy finger/sidewall section removal. UL 94 flame class of V-0 with a UL recognized continuous-use temperature up to 122°F (50°C). Mounting holes provided. Lead-free PVC. 1" x 3" 25.4 mm x 76.2 mm) and 6' (1.83 m) long. Cover sold separately. Color Light Gray.
Specifications
Specifications
- Country of Origin
- United States
- Product Segment
- IEI
- Overall Length (m)
- 1.83
- Application
- Narrow slot/finger design provides more slots to fit the spacing of high-density terminal block applications
- Wiring Duct Type
- F
- Overall Width (In.)
- 1.25
- Overall Height (mm)
- 79.4
- Sub Brand
- Panduct®
- Flammability Rating
- UL 94 V-0
- Slot Width (In.)
- 0.2
- Overall Height (In.)
- 3.13
- Cover Part Number
- C1LG6
- Nominal Width (In.)
- 1
Any Reason Not to SellN
Slot Width (mm)5
ColorLight Gray
MaterialPVC
Product TypeBase Wiring Duct
Overall Length (ft.)6
Measurement SystemImperial
Mount MethodMounting Holes
Overall Width (mm)32
Includes(1) Base
Wiring Duct StyleNarrow Slot Wiring Duct
Material PropertiesLead-Free
Nominal Height (In.)3
Packaging Details
- UPC
- 07498337515
- Standard Package Volume Ft3
- 0.1166
- Std Package Height In
- 3
- Std Package Length In
- 72
- Std Package Width In
- 1
- Std. Pkg. UOM
- Foot
- Std. Pkg. Qty.
- 6
- Standard Carton Volume Ft3
- 2.3330
- Std Carton Height In
- 3.4
- Std Carton Length In
- 72.9
- Std Carton Width In
- 13.5
- Std Ctn Qty
- 120
- EAN
- 00074983375158
- ARRA Compliant
- Y
- Hazardous Material Flag
- N
- Pallet Quantity
- 2,160
- Pallet Weight
- 691.2000
GTIN Package00074983375158
Standard Package Weight Pounds1.9200
Std Package Height MM76.2
Std Package Length MM1828.8
Std Package Width MM25.4
UOM EA PKPK
GTIN Carton50074983375153
Standard Carton Weight Pounds38.4000
Std Carton Height MM86.36
Std Carton Length MM1851.66
Std Carton Width MM342.9
Min. Order UOMFoot
REACH StatusN
Mercury Content IndicatorN
Min Order Qty120.0000
Pallet Volume41.993438
RoHS CompliantCompliant
