Panduit G2X4LG6 Panduct® G2X4LG6 Base Wiring Duct
- MPN: G2X4LG6
- UPC: 074983545858
- PPN: PAN-G2X4LG6
- UNSPSC: 39131712
CAD
$7.79
/ FT
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

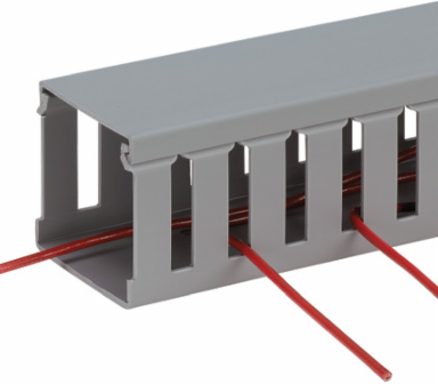

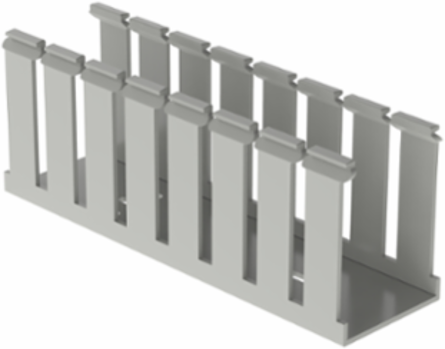

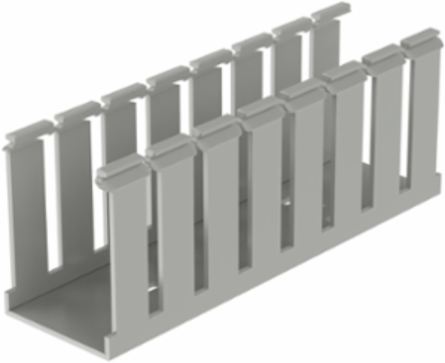

The G2X4LG6 Panduct Lead-Free PVC Wide Slot Wiring Duct feature a wide slot/finger design that provides greater sidewall rigidity and is suitable with a range of wire bundle sizes. UL 94 flame class of V-0 with a UL recognized continuous-use temperature up to 122°F (50°C). Mounting holes provided. 2.0" x 4.0" (50.8 mm x 101.6 mm) and 6' (1.8 m) long. Cover sold separately. Color Light Gray.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Product Segment | IEI |
| Includes | (1) Base |
| Product Type | Base Wiring Duct |
| Wiring Duct Type | G |
| Overall Width (In.) | 2.25 |
| Measurement System | Imperial |
| Note | Cover sold separately |
| Flammability Rating | UL 94 V-0 |
| Overall Length (m) | 1.83 |
| Overall Length (ft.) | 6 |
| Slot Width (mm) | 7.9 |
| Material Properties | Lead-Free |
| Nominal Height (In.) | 4 |
| Any Reason Not to Sell | N |
|---|---|
| Sub Brand | Panduct® |
| Overall Height (mm) | 104.1 |

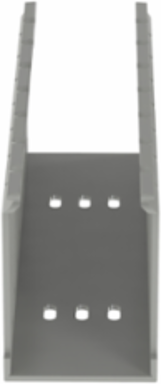

| Mount Method | Mounting Holes |
| Color | Light Gray |
| Application | Wide slot/finger design provides greater sidewall rigidity and can be used in a wide range of applications |
| Material | PVC |
| Wiring Duct Style | Wide Slot Wiring Duct |
| Overall Width (mm) | 57.2 |
| Slot Width (In.) | 0.31 |
| Cover Part Number | C2LG6 |
| Overall Height (In.) | 4.1 |
| Nominal Width (In.) | 2 |
Packaging Details
| UPC | 07498354585 |
|---|---|
| Standard Package Volume Ft3 | 0.2755 |
| Std Package Height In | 4 |
| Std Package Length In | 72 |
| Std Package Width In | 2 |
| Std. Pkg. UOM | Foot |
| Std. Pkg. Qty. | 6 |
| Standard Carton Volume Ft3 | 2.7551 |
| Std Carton Height In | 4.6 |
| Std Carton Length In | 72.9 |
| Std Carton Width In | 14.1 |
| Std Ctn Qty | 60 |
| EAN | 00074983545858 |
| California Pro65 Cancer | No |
| Mercury Content Indicator | N |
| Min Order Qty | 60.0000 |
| Pallet Volume | 57.856788 |
| RoHS Compliant | Compliant |
| GTIN Package | 00074983545858 |
|---|---|
| Standard Package Weight Pounds | 3.1200 |
| Std Package Height MM | 101.6 |
| Std Package Length MM | 1828.8 |
| Std Package Width MM | 50.8 |
| UOM EA PK | PK |
| GTIN Carton | 50074983545853 |
| Standard Carton Weight Pounds | 31.2000 |
| Std Carton Height MM | 116.84 |
| Std Carton Length MM | 1851.66 |
| Std Carton Width MM | 358.14 |
| Min. Order UOM | Foot |
| REACH Status | N |
| ARRA Compliant | Y |
| Hazardous Material Flag | N |
| Pallet Quantity | 1,260 |
| Pallet Weight | 655.2000 |
