Panduit F2X3LG6 Panduct® F2X3LG6 Base Wiring Duct
Panduit F2X3LG6 Panduct® F2X3LG6 Base Wiring Duct
- MPN: F2X3LG6
- UPC: 074983375578
- PPN: PAN-F2X3LG6
- UNSPSC: 39131712
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$6.30/ FT
Description

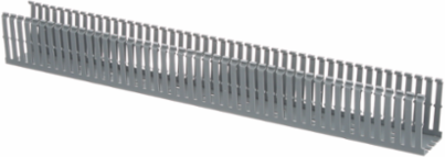

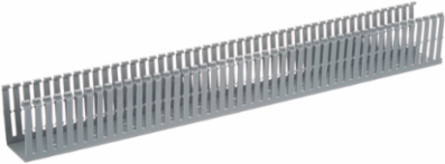

The F2X3LG6 Panduct Lead-Free PVC Narrow Slot Wiring Duct features a narrow slot/finger design that closely matches the spacing of high-density components. Upper and lower scorelines allow for easy finger/sidewall section removal. UL 94 flame class of V-0 with a UL recognized continuous-use temperature up to 122°F (50°C). Mounting holes provided. Lead-free PVC. 2" x 3" (50.8 mm x 76.2 mm) and 6' (1.83 m) long. Cover sold separately. Color Light Gray.
Specifications
Packaging Details
- UPC
- 07498337557
- Standard Package Volume Ft3
- 0.0911
- Std Package Height In
- 3
- Std Package Length In
- 72
- Std Package Width In
- 2
- Std. Pkg. UOM
- Foot
- Std. Pkg. Qty.
- 6
- Standard Carton Volume Ft3
- 0.9113
- Std Carton Height In
- 3.6
- Std Carton Length In
- 72.6
- Std Carton Width In
- 13.3
- Std Ctn Qty
- 60
- EAN
- 00074983375578
- ARRA Compliant
- Y
- Hazardous Material Flag
- N
- Pallet Quantity
- 1,620
- Pallet Weight
- 615.6000
GTIN Package00074983375578
Standard Package Weight Pounds2.2800
Std Package Height MM76.2
Std Package Length MM1828.8
Std Package Width MM50.8
UOM EA PKPK
GTIN Carton50074983375573
Standard Carton Weight Pounds22.8000
Std Carton Height MM91.44
Std Carton Length MM1844.04
Std Carton Width MM337.82
Min. Order UOMFoot
REACH StatusN
Mercury Content IndicatorN
Min Order Qty60.0000
Pallet Volume24.603750
RoHS CompliantCompliant
Specifications
- Country of Origin
- United States
- Product Segment
- IEI
- Slot Width (In.)
- 0.2
- Color
- Light Gray
- Includes
- (1) Base
- Flammability Rating
- UL 94 V-0
- Product Type
- Base Wiring Duct
- Overall Length (m)
- 1.83
- Sub Brand
- Panduct®
- Wiring Duct Style
- Narrow Slot Wiring Duct
- Overall Height (mm)
- 79.8
- Overall Length (ft.)
- 6
- Nominal Width (In.)
- 2
Any Reason Not to SellN
ApplicationNarrow slot/finger design provides more slots to fit the spacing of high-density terminal block applications
Measurement SystemImperial
Cover Part NumberC2LG6
Mount MethodMounting Holes
Overall Height (In.)3.14
Overall Width (mm)57.2
MaterialPVC
Slot Width (mm)5
Overall Width (In.)2.25
Wiring Duct TypeF
Material PropertiesLead-Free
Nominal Height (In.)3
