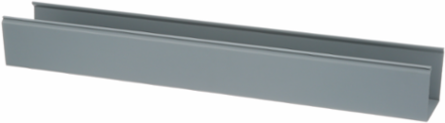

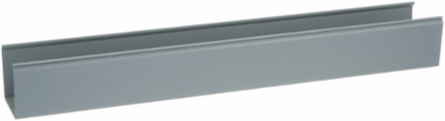

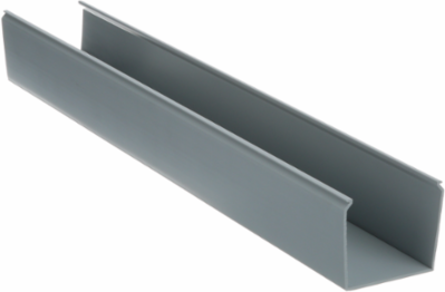

Panduit FS3X3LG6NM Panduct® FS3X3LG6NM Base Wiring Duct
- MPN: FS3X3LG6NM
- UPC: 074983341283
- PPN: PAN-FS3X3LG6NM
- UNSPSC: 39131712
CAD
$7.50
/ FT
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

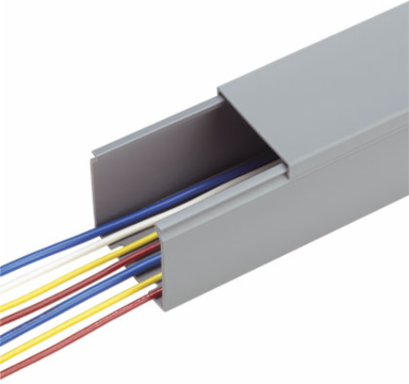

The FS3X3BL6NM Panduct Lead-Free PVC Solid Wall Wiring Duct design fully encloses cables providing maximum protection and aesthetics. UL 94 flame class of V-0 with a UL recognized continuous-use temperature up to 122°F (50°C). No mounting holes provided. Lead-free PVC. 3" x 3" (76.2 mm x 76.2 mm) and 6' (1.83 m) long. Cover sold separately. Color Light Gray.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Product Segment | IEI |
| Overall Height (mm) | 79.2 |
| Wiring Duct Style | Solid Wall Wiring Duct |
| Cover Part Number | C3LG6 |
| Mount Method | No Mounting Holes |
| Overall Length (ft.) | 6 |
| Flammability Rating | UL 94 V-0 |
| Measurement System | Imperial |
| Application | Narrow slot/finger design provides more slots to fit the spacing of high-density terminal block applications |
| Material Properties | Lead-Free |
| Nominal Width (In.) | 3 |
| Any Reason Not to Sell | N |
|---|---|
| Wiring Duct Type | FS |
| Sub Brand | Panduct® |
| Overall Width (In.) | 3.25 |
| Overall Height (In.) | 3.12 |
| Overall Width (mm) | 82.6 |
| Material | PVC |
| Product Type | Base Wiring Duct |
| Color | Light Gray |
| Overall Length (m) | 1.83 |
| Nominal Height (In.) | 3 |
Packaging Details
| UPC | 07498334128 |
|---|---|
| Standard Package Volume Ft3 | 0.2967 |
| Std Package Height In | 3 |
| Std Package Length In | 72 |
| Std Package Width In | 3 |
| Std. Pkg. UOM | Foot |
| Std. Pkg. Qty. | 6 |
| Standard Carton Volume Ft3 | 2.9667 |
| Std Carton Height In | 3.6 |
| Std Carton Length In | 72.9 |
| Std Carton Width In | 18.9 |
| Std Ctn Qty | 60 |
| EAN | 00074983341283 |
| ARRA Compliant | Y |
| Hazardous Material Flag | N |
| Pallet Quantity | 1,080 |
| Pallet Weight | 675.0000 |
| GTIN Package | 00074983341283 |
|---|---|
| Standard Package Weight Pounds | 3.7500 |
| Std Package Height MM | 76.2 |
| Std Package Length MM | 1828.8 |
| Std Package Width MM | 76.2 |
| UOM EA PK | PK |
| GTIN Carton | 50074983341288 |
| Standard Carton Weight Pounds | 37.5000 |
| Std Carton Height MM | 91.44 |
| Std Carton Length MM | 1851.66 |
| Std Carton Width MM | 480.06 |
| Min. Order UOM | Foot |
| REACH Status | N |
| Mercury Content Indicator | N |
| Min Order Qty | 60.0000 |
| Pallet Volume | 53.400450 |
| RoHS Compliant | Compliant |
