Panduit F1.5X4WH6 Panduct® F1.5X4WH6 Base Wiring Duct
- MPN: F1.5X4WH6
- UPC: 074983375400
- PPN: PAN-F1.5X4WH6
- UNSPSC: 39131712
CAD
$7.27
/ FT
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

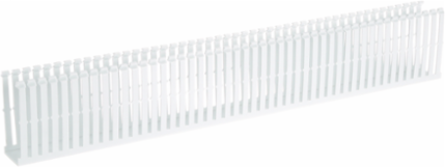

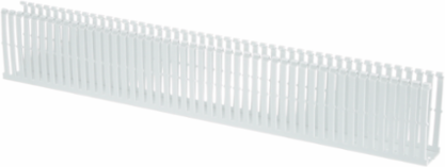

The F1.5X4WH6 Panduct Lead-Free PVC Narrow Slot Wiring Duct features a narrow slot/finger design that closely matches the spacing of high-density components. Upper and lower scorelines allow for easy finger/sidewall section removal. UL 94 flame class of V-0 with a UL recognized continuous-use temperature up to 122°F (50°C). Mounting holes provided. Lead-free PVC. 1.5" x 4" (38.1 mm x 101.6 mm) and 6' (1.83 m) long. Color White. Base only. Cover sold separately.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Product Segment | IEI |
| Flammability Rating | UL 94 V-0 |
| Application | Narrow slot/finger design provides more slots to fit the spacing of high-density terminal block applications |
| Measurement System | Imperial |
| Wiring Duct Style | Narrow Slot Wiring Duct |
| Cover Part Number | C1.5WH6 |
| Overall Width (mm) | 44.5 |
| Color | White |
| Overall Height (In.) | 4.1 |
| Material | PVC |
| Slot Width (mm) | 5 |
| Material Properties | Lead-Free |
| Nominal Width (In.) | 1.5 |
| Any Reason Not to Sell | N |
|---|---|
| Includes | (1) Base |
| Overall Length (ft.) | 6 |
| Wiring Duct Type | F |
| Slot Width (In.) | 0.2 |
| Note | Cover sold separately |
| Overall Height (mm) | 104.1 |
| Overall Width (In.) | 1.75 |
| Overall Length (m) | 1.83 |
| Sub Brand | Panduct® |
| Mount Method | Mounting Holes |
| Product Type | Base Wiring Duct |
| Nominal Height (In.) | 4 |
Packaging Details
| UPC | 07498337540 |
|---|---|
| Standard Package Volume Ft3 | 0.2107 |
| Std Package Height In | 4 |
| Std Package Length In | 72 |
| Std Package Width In | 1.5 |
| Std. Pkg. UOM | Foot |
| Std. Pkg. Qty. | 6 |
| Standard Carton Volume Ft3 | 2.1073 |
| Std Carton Height In | 4.5 |
| Std Carton Length In | 72.9 |
| Std Carton Width In | 11.1 |
| Std Ctn Qty | 60 |
| EAN | 00074983375400 |
| ARRA Compliant | Y |
| Hazardous Material Flag | N |
| Pallet Quantity | 1,260 |
| Pallet Weight | 554.4000 |
| GTIN Package | 00074983375400 |
|---|---|
| Standard Package Weight Pounds | 2.6400 |
| Std Package Height MM | 101.6 |
| Std Package Length MM | 1828.8 |
| Std Package Width MM | 38.1 |
| UOM EA PK | PK |
| GTIN Carton | 50074983375405 |
| Standard Carton Weight Pounds | 26.4000 |
| Std Carton Height MM | 114.3 |
| Std Carton Length MM | 1851.66 |
| Std Carton Width MM | 281.94 |
| Min. Order UOM | Foot |
| REACH Status | N |
| Mercury Content Indicator | N |
| Min Order Qty | 60.0000 |
| Pallet Volume | 44.252578 |
| RoHS Compliant | Compliant |
