Panduit F3X3LG6 Panduct® F3X3LG6 Base Wiring Duct
Panduit F3X3LG6 Panduct® F3X3LG6 Base Wiring Duct
- MPN: F3X3LG6
- UPC: 074983375776
- PPN: PAN-F3X3LG6
- UNSPSC: 39131712
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$7.32/ FT
Description

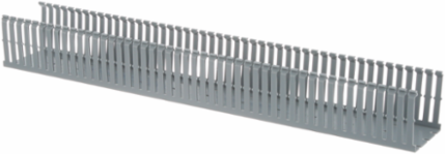

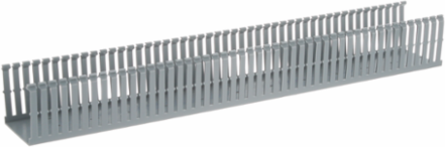

The F3X3LG6 Panduct Lead-Free PVC Narrow Slot Wiring Duct features a narrow slot/finger design that closely matches the spacing of high-density components. Upper and lower scorelines allow for easy finger/sidewall section removal. UL 94 flame class of V-0 with a UL recognized continuous-use temperature up to 122°F (50°C). Mounting holes provided. Lead-free PVC. 3" x 3" (76.2 mm x 76.2 mm) and 6' (1.83 m) long. Cover sold separately. Color Light Gray.
Specifications
Specifications
- Country of Origin
- United States
- Product Segment
- IEI
- Flammability Rating
- UL94V-0
- Product Type
- Base Wiring Duct
- Slot Width (In.)
- 0.2
- Overall Width (mm)
- 82.6
- Overall Height (mm)
- 78.7
- Slot Width (mm)
- 5
- Wiring Duct Type
- F
- Color
- Light Gray
- Includes
- (1) Base
- Overall Length (ft.)
- 6
- Nominal Width (In.)
- 3
Any Reason Not to SellN
Sub BrandPanduct®
Wiring Duct StyleNarrow Slot Wiring Duct
Overall Height (In.)3.13
Mount MethodMounting Holes
MaterialPVC
Measurement SystemImperial
Cover Part NumberC3LG6
Overall Length (m)1.83
Overall Width (In.)3.25
ApplicationNarrow slot/finger design provides more slots to fit the spacing of high-density terminal block applications
Material PropertiesLead-Free
Nominal Height (In.)3
Packaging Details
- UPC
- 07498337577
- Standard Package Volume Ft3
- 0.2835
- Std Package Height In
- 3
- Std Package Length In
- 72
- Std Package Width In
- 3
- Std. Pkg. UOM
- Foot
- Std. Pkg. Qty.
- 6
- Standard Carton Volume Ft3
- 2.8354
- Std Carton Height In
- 3.6
- Std Carton Length In
- 72.9
- Std Carton Width In
- 18.9
- Std Ctn Qty
- 60
- EAN
- 00074983375776
- ARRA Compliant
- Y
- Hazardous Material Flag
- N
- Pallet Quantity
- 1,080
- Pallet Weight
- 496.8000
GTIN Package00074983375776
Standard Package Weight Pounds2.7600
Std Package Height MM76.2
Std Package Length MM1828.8
Std Package Width MM76.2
UOM EA PKPK
GTIN Carton50074983375771
Standard Carton Weight Pounds27.6000
Std Carton Height MM91.44
Std Carton Length MM1851.66
Std Carton Width MM480.06
Min. Order UOMFoot
REACH StatusN
Mercury Content IndicatorN
Min Order Qty60.0000
Pallet Volume51.037361
RoHS CompliantCompliant
