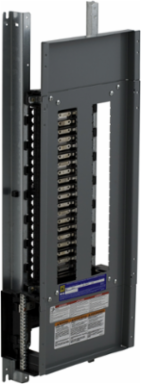

Square D NQ42L2C14 NQ Panelboard Interior, 225A, 42 Pole Spaces, Copper Bus, 240VAC, 14 Inch
Square D NQ42L2C14 NQ Panelboard Interior, 225A, 42 Pole Spaces, Copper Bus, 240VAC, 14 Inch
- MPN: NQ42L2C14
- UPC: 785901327165
- PPN: SCH-NQ42L2C14
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$1114.69/ EA
Description
NQ Panelboard interiors can be used for applications such as commercial buildings, industrial buildings, stadiums, and offices. NQ Panelboards are versatile panelboards that feature a wide selection of circuit breakers, accessories, and ready to install kits. NQ Panelboard interiors are field convertible to top or bottom feed. NQ Panelboards are convertible from main lug to main breaker. NQ Panelboards provide 200% rated neutrals for nonlinear loads. Some factory installed options are split bus, lighting contactors, compression lugs, surge protection devices, and phenolic nameplates. This interior provides protection for your commercial and industrial applications. The main lugs are rated at 225A, 240 VAC single phase or 48 VDC. Interior has an interrupt current rating of up to 65 kA. This interior is for a 3 wire system with 42 spaces and has a copper bus bar. Interior is for QOB, QOBVH and QHB branch circuit breakers. Lug connections will accept 6 AWG to 350 kcmil copper or aluminum wire. Interior is 58 inches tall and 8.63 inches wide. This NQ panelboard interior is UL listed and CSA certified.
Specifications
Complementary
- Height
- 58 in
- Tightening Torque
- 4.52-5.65 N.m 13.30-67.43 mm² AWG 6...AWG 2/0) || 11.3-11.3 N.m 13.30-67.43 mm² AWG 6...AWG 2/0) || 31.07-31.07 N.m 13.30-177.3 mm² AWG 6...350 kcmil) || 31.07-31.07 N.m 13.30-126.7 mm² AWG 6...250 kcmil) || 31.07-31.07 N.m 107.2-152 mm² AWG 4...300 kcmil)
- [Iu] Rated Interrupted Current
- 10 kA || 22 kA || 65 kA
- Wiring Configuration
- 3-wire
- Enclosure Nominal Height
- 38 in
- Net Weight
- 8.995 kg
- [Ue] Rated Operational Voltage
- 240 V AC || 48 V DC
Enclosure Nominal Depth5.75 in NEMA 1
[In] Rated Current225 A
Width8.63 in
Number Of Spaces42
Network Number Of Phases1 phase
Enclosure Nominal Width14 in
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1404010EN
- Toxic Heavy Metal Free
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectiveCompliant with Exemptions
Reach Free Of SvhcYes
Specifications
- Circuit Breaker Type
- QOB || QOB-VH || QHB
- Material
- copper
Loadcentre TypeMain lugs
Environment
- Standards
- UL || CSA
