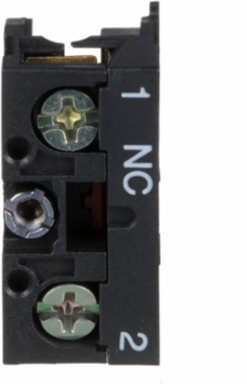

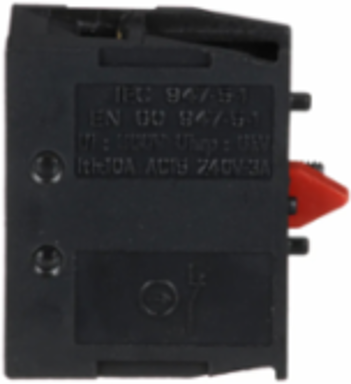

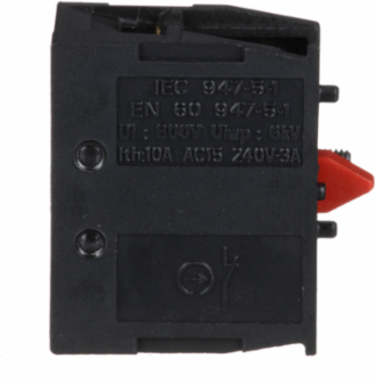

Schneider Electric ZB2BE102 Harmony XAC Contact Block, Single NC, Spring Return, Front Mounting, 10 A, 600 V
- MPN: ZB2BE102
- PPN: SCH-ZB2BE102
CAD
$21.74
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Harmony 22 mm modular push buttons, selector switches, pilot lights are designed for industry. This range combines simplicity of setup, flexibility and a robust construction. An ingenious locking system consisting of a snap fit head and body that can be tightened with a single screw but still ensuring an easy and yet secure mounting. Harmony XB4/ZB4 are 22 mm chromium plated metal modular push buttons, selector switches and pilot lights connecting to fully metal mounting collar. The operators can be purchased as complete operators or various modules that can be assembled to meet the user’s specific requirement. Harmony XB5/ZB5 are 22 mm plastic modular push buttons, selector switches, pilot lights. The operator can have a round and square plastic bezel. The contacts can be used for low load electrical contact and high power applications. Shake proof connection screws make periodic retightening unnecessary. A complete set of accessories to provide a solution for applications where exposure to high pressure cleaning, dust and extreme temperatures is an everyday occurrence. These harmony 22mm push buttons are used by machine manufacturers (automotive, textiles, timber) and control system panel builders. Certified and approved for meeting requirements throughout all continents: EN/IEC, UL, NEMA, CSA, CCC, Gost, JIS and many more. They have UL and CE markings and have ratings up to IP66 and IP69K.
Features
- The Schneider Electric ZB2BE102 is a high-reliability contact block designed for the legacy Harmony XAP/ZB2 22mm push button range. While the newer XB4 and XB5 series are now more common, the ZB2 range remains a "gold standard" in many older Canadian industrial plants, specifically in heavy-duty applications like pendant stations and crane controls.
- This block features a 1 NC contact configuration. In industrial logic, "Normally Closed" means electricity flows through the circuit when the button is at rest and breaks when the button is pressed. This makes the ZB2BE102 the primary choice for Emergency Stop (E-Stop) buttons and standard "Stop" functions across Canadian manufacturing and resource sectors.
- A critical safety feature of the ZB2BE102 is its positive opening action. This ensures that even if the contacts have been subjected to a slight weld due to an electrical surge, the mechanical force of pressing the button will physically force the contacts apart. This is a mandatory requirement for safety-related control functions under the Canadian Electrical Code (CEC).
- Equipped with silver alloy contacts, the ZB2BE102 is designed for high electrical durability. It is rated for AC-15 and DC-13 (pilot duty), meaning it can reliably handle the "flyback" and inrush current associated with switching contactor coils, solenoids, and heavy-duty relays.
- The block uses robust screw clamp terminals that are "finger-safe" and designed to hold #14 to #18 AWG wires securely. These terminals are built to withstand the constant vibration of heavy machinery essential for equipment used in the Canadian mining, forestry, and steel industries.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, Indonesia, Mexico, Singapore, United States
Complementary Attributes
- Maximum Resistance Across Terminals
- 25 MOhm
Rated Operational Power In W40 W DC-13 1000000 cycles 3600 cyc/h 120 V 0.5 IEC 60947-5-148 W DC-13 1000000 cycles 3600 cyc/h 48 V 0.5 IEC 60947-5-165 W DC-13 1000000 cycles 3600 cyc/h 24 V 0.5 IEC 60947-5-1
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Contact Code Designation
- A600 AC-15, Ue = 240 V, Ie = 3 A IEC 947-5-1 appendix AA600 AC-15, Ue = 600 V, Ie = 1.2 A IEC 947-5-1 appendix AQ600 DC-13, Ue = 250 V, Ie = 0.27 A IEC 947-5-1 appendix A, Q600 DC-13, Ue = 600 V, Ie = 0.1 A IEC 947-5-1 appendix A
- Connections - Terminals
- screw clamps terminals, 1 x 2.5 mm² with or without cable end, screw clamps terminals, 2 x 1.5 mm² with or without cable end
- Carbon Footprint Of The Distribution Phase [A4]
- 0.0026153285, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.0000617518, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 0 kg CO2 eq., 0.0458817143
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- N
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- No
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Contact Block Application
- single speed
- Contact Operation
- slow-break
- Electrical Circuit Type
- control circuit
- Mechanical Durability
- 1000000 cycles
- Operating Force
- 13-15 N
- Product Or Component Type
- contact block
- Returnability
- Yes
- Sustainable Packaging
- No
- Type Of Operator
- spring return
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- The main function of a push button switch is to switch something either on or off industrial applications with power consumption 0.015W with 70% active mode for 10 years and product is conforming with standard EN 60947-5-1.
- Functional-unit Unit
- Unit
- Energy Model - Manufacturing [A1-a3]
- Energy model used: China
- Energy Model - Use [B6]
- Electricity Mix; Production mix; Low voltage; CN
- Recyclability Potential In %
- 80
- [Ui] Rated Insulation Voltage
- 600 V 3)IEC 60947-1
- Short-circuit Protection
- 10 A fuse protection cartridge gG (gl)
- Package Weight(Lbs)
- 15.000 g
- Warranty (In Months)
- 18
- Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
- 0.742
- Customs Code
- 8536509065
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Certificate AgencyIEC 60204-32, IEC 60947-5-1, CSA C22.2 No 14, UL 508
Terminals Description Iso N°1(11-12)NC, (11-12)NC
Carbon Footprint Of The End-of-life Phase [C1 To C4]0 kg CO2 eq., 0.0100128467
Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.2 kg CO2 eq., 0.2365109489
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
Weee Product Category5
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Component NameZB2
Contact Block Typesingle
Contacts Type And Composition1 NC
Electrical Shock Protection Classclass II conforming to IEC 61140
Mounting Of Blockfront mounting
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductHarmony XAC
Software Versionv5.9.4
Total Lifecycle Carbon Footprint0.3 kg CO2 eq.
Vibration Resistance15 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
Pep CodeENVPEP2211045EN
Pep Verification Date2023-01-01
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; CN
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; CN
[Ithe] Conventional Enclosed Thermal Current10 A
[Uimp] Rated Impulse Withstand Voltage6 kV IEC 60947-1
Nbr. Of Units In Pkg.1
Take-backNo
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]0.742
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]0.742
Environment Attributes Main
- Ambient Air Temperature For Operation
- -25-70 °C, -25-70 °C
- Product Compatibility
- XACA, XB4, XB5
- Reach Free Shvc
- Yes
- China Rohs Regulation
- X
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP2211045EN
- Packaging Made With Recycled Cardboard
- Yes
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP2211045EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Take BackNo
Recycled Metal Content At Cr Level0 %
Toxic Heavy Metal FreeYes
Carbon Footprint0.2950825902
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2023-01-01
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- contact block
Range Of ProductHarmony XAC
ETIM
- ETIM 8
- EC000041
ETIM 9EC000041
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
