Harmony XAC Double Contact Block, 2-Pole, Front Mounting, 2 NO Functions
Schneider Electric

Schneider Electric XESD1191 Harmony XAC Double Contact Block, 2-Pole, Front Mounting, 2 NO Functions

  • MPN: XESD1191
  • PPN: SCH-XESD1191

CAD

$144.88

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

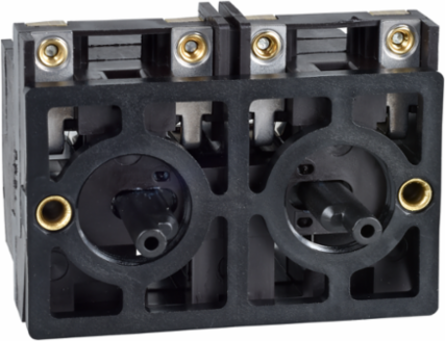

This contact block is a separate component of the range of pendant control stations Harmony XAC. It consists in a double block 2-pole with 2 spring return operators mechanically interlocked (operator centres 40 mm). It features 2 NO functions and and screw clamp connection type. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product. It is easily installed and replaced on XACB pendant control stations (front mounting). It weighs 140g. It is designed for power circuits simple speed applications.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin
Brazil, Czechia, France

Complementary Attributes

Rated Operational Power In W
2200 W AC-3 240 V IEC 60947-3 appendix A, 2200 W AC-4 400 V IEC 60947-3 appendix A
Rated Power In Hp2 hp 240 V, CSA, 3 hp 600 V, CSA, 5 hp 400 V, CSA

Important Information Attributes

Persona Type Ids
BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation Id
COMMERCIAL, INDUSTRIAL
Electrical Durability
300000 cycles AC-4, 2200 W 400 V 10 cyc/mn 0.4 IEC 60947-3 appendix A, 500000 cycles AC-4, 1500 W 240 V 10 cyc/mn 0.4 IEC 60947-3 appendix A, 800000 cycles AC-4, 1500 W 400 V 10 cyc/mn 0.4 IEC 60947-3 appendix A300000 cycles AC-3, 2200 W 240 V 10 cyc/mn 0.4 IEC 60947-3 appendix A, 300000 cycles AC-3, 2200 W 400 V 10 cyc/mn 0.4 IEC 60947-3 appendix A, 300000 cycles AC-4, 2200 W 240 V 10 cyc/mn 0.4 IEC 60947-3 appendix A, 500000 cycles AC-3, 1500 W 240 V 10 cyc/mn 0.4 IEC 60947-3 appendix A, 800000 cycles AC-3, 1500 W 400 V 10 cyc/mn 0.4 IEC 60947-3 appendix A
Terminal Identifier
(11-12)NC, (13-14)NO, (11-12)NC, (13-14)NO
Connections - Terminals
screw clamp terminals, 1 x 2.5 mm² with or without cable end, screw clamp terminals, 2 x 1.5 mm² with or without cable end
Terminals Description Iso N°2
(43-44)NO, (33-34)NO, (43-44)NO, (33-34)NO, B
Carbon Footprint Of The End-of-life Phase [C1 To C4]
0.1 kg CO2 eq., 0.1384433566
Carbon Footprint Of The Manufacturing Phase [A1 To A3]
0.8 kg CO2 eq., 0.7589033411
Local Data Status
Publishable
Return Indicator
Y
Stock Policy
2
Weee Product Category
5
Eoli Availability Display
No need of specific recycling operations
Reach Full Compliance Status Id
NOT_CONTAINING_SVHC
Rohs Eur In Scope
No
Rohs Eur Conformity Date
1930
China Rohs In Scope
Yes
With Recycled Cardboard
Yes
Product Contributes To Saved And Avoided Emissions
No
Tier
1
Function Option
Standard
Component Name
XESD
Contact Block Type
double
Contacts Type And Composition
2 NO
Electrical Shock Protection Class
class II conforming to IEC 61140
Mechanical Interlocking
with mechanical interlocking
Number Of Poles
2-pole
Product Availability
Non-Stock - Not normally stocked in distribution facility
Range Of Product
Harmony XAC
Shock Resistance
100 gn IEC 60068-2-27
Sustainable Packaging
Yes
Type Of Operator
2 spring return
Weee Label
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version
2022-01
Pcr Version
PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep
Independent internal review
Functional-unit Description
XAC is a complete ready to use pendant station for control of single-speed motors in Industrial application which has 10 years of product lifetime with 15% of use rate.& 10Product Standards- EN/IEC 60947-5-1, EN/IEC 60204-32
Functional-unit Unit
Unit
Energy Model - Manufacturing [A1-a3]
Energy model used: Czech Republic
Energy Model - Use [B6]
Ecobilan identifier / ELCD-0370 / CODDE-0086 / ECO-168-
Recyclability Potential, In %
32
[Ui] Rated Insulation Voltage
600 VCSA
Short-circuit Protection
10 A fuse protection cartridge aM
Package Weight(Lbs)
160.000 g
Warranty (In Months)
18
Ecotoxicity (Fresh Water) (Ctue) Operational Energy Use [B6]
1.477
Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
1.315
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Mechanical Durability500000 cycles, 1000000 cycles
Certificate AgencyIEC 60947-3, CSA C22.2 No 14
Terminals Description Iso N°1(23-24)NO, (13-14)NO, (23-24)NO, (13-14)NO, B
Carbon Footprint Of The Distribution Phase [A4]0.0320628283, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.0007641332, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]0.1 kg CO2 eq., 0.08962
Local Publishable Date2026-03-31
Stocking FlagY
Weee ScopeIn
Scope PerimeterAt least in Europe
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Contact Block Applicationsingle speed
Contact Operationsnap action
Electrical Circuit Typepower circuit
Horizontal Fixing Centres40 mm
Mounting Of Blockfront mounting
Operating Force17 N
Product Or Component Typecontact block
ReturnabilityYes
Software VersionEIME v5.9.4
Total Lifecycle Carbon Footprint1 kg CO2 eq.
Vibration Resistance15 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
Pep CodeENVPEP0709005EN
Pep Verification Date2022-11-01
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y10
Energy Model - Installation [A5]Ecobilan identifier / ELCD-0370 / CODDE-0086 / ECO-168-
Energy Model - End Of Life [C1-c4]Ecobilan identifier / ELCD-0370 / CODDE-0086 / ECO-168-
[Ithe] Conventional Enclosed Thermal Current12 A
[Uimp] Rated Impulse Withstand Voltage6 kV IEC 60947-1
Nbr. Of Units In Pkg.1
Take-backNo
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]1.315
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]1.315

Environment Attributes Main

Ambient Air Temperature For Operation
-25-70 °C, -25-70 °C
Take Back
No
Recycled Metal Content At Cr Level
0 %
Toxic Heavy Metal Free
Yes
Carbon Footprint
1.0197936592
Eu Rohs Directive
Compliant
Packaging Without Single Use Plastic
Yes
Reach Free Of Svhc
Yes
Pep Code
ENVPEP0709005EN
Pcr Version
PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep
Independent internal review
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Environmental DisclosureENVPEP0709005EN
Packaging Made With Recycled CardboardYes
Product CompatibilityXACB
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2022-11-01
Psr VersionPSR-0005-ed2-2016 03 29

General Attributes

Product Or Component Type
contact block
Range Of ProductHarmony XAC

ETIM

ETIM 8
EC000041
ETIM 9EC000041

Contractual Warranty Attributes

Warranty Period
18 months
Warranty18 months
